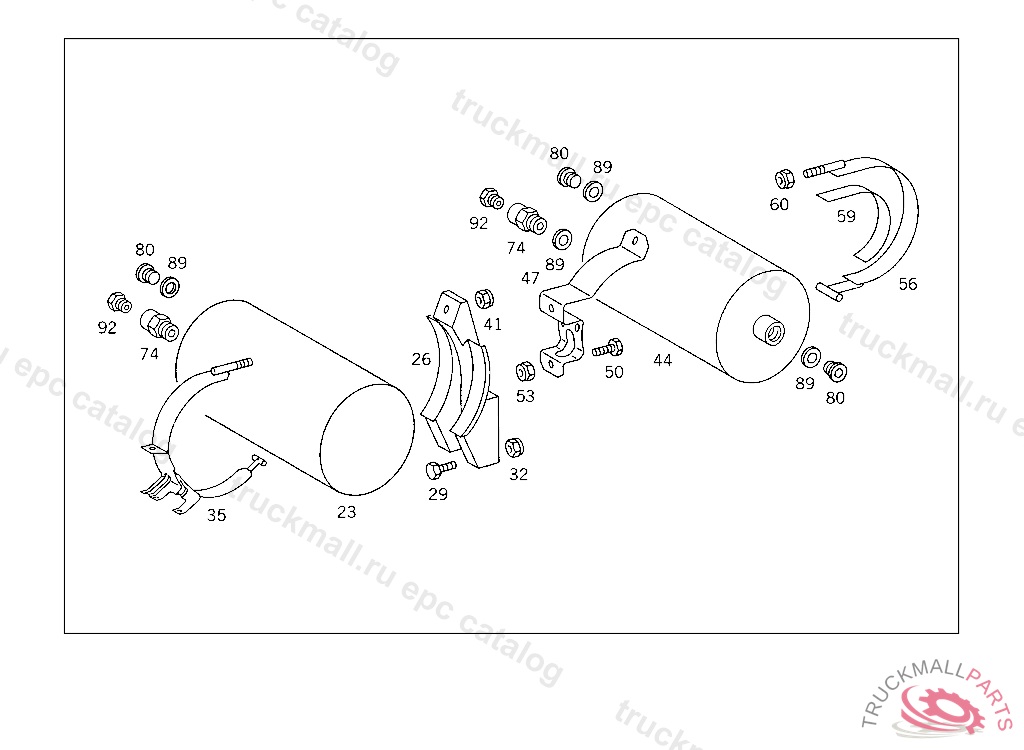

Поз.
Артикул
Описание
23
RESERVOIR20L,276 MM,8.5 BAR
23
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
26
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
29
SCREW BRACKET TO SIDE MEMBER,K 168169
29
SCREW , Replaced By: A0089907401
32
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
32
NUT , Replaced By: N913004008001
35
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
41
NUT STRAP TO BRACKET
41
NUT , Replaced By: N910113010000
44
RESERVOIR10L,206 MM,8.5 BAR
44
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
47
BRACKET AIR RESERVOIR TO CROSS MEMBER
50
SCREW PIPE CLAMP
50
SCREW , Replaced By: N304017008021
53
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
53
NUT , Replaced By: N913004008001
56
STRAP AIR RESERVOIR TO BRACKET
56
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
59
ADHESIVE TAPE60 MM, ORDER BY THE METER
74
FITTING LINE CONNECTION
80
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
80
SCREW PLUG , Replaced By: N000908022011
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
92
SCREW. UNION SCREW LINE CONNECTION
92
SCREW. UNION SCREW , Replaced By: A0009973734
92
SCREW. UNION SCREW LINE CONNECTION
