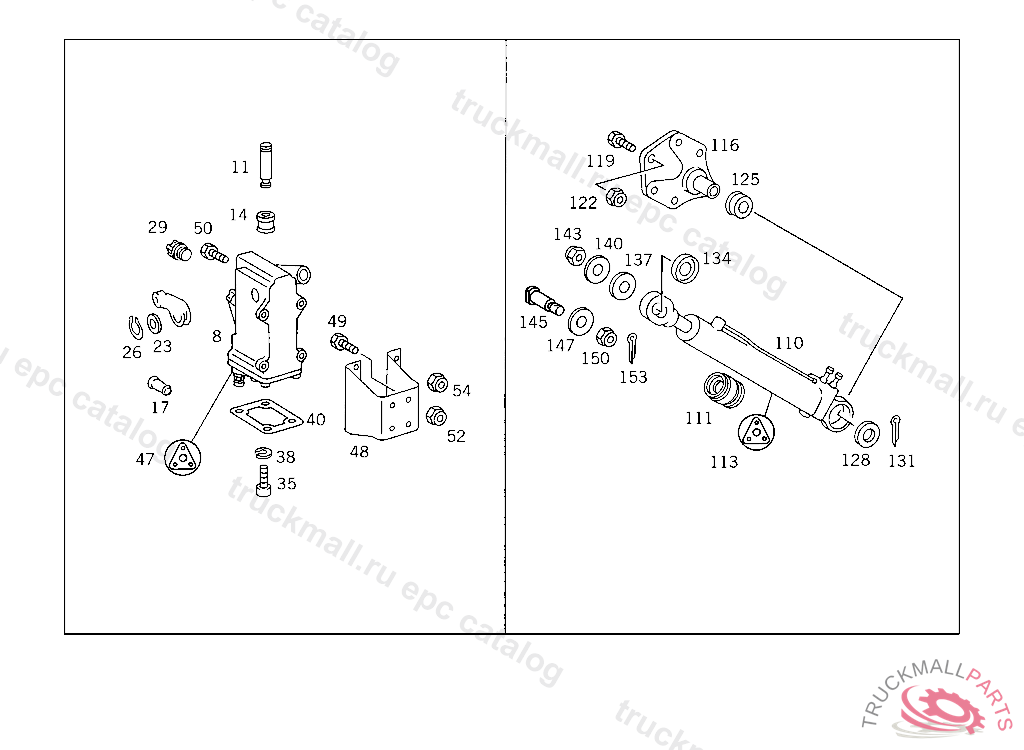

Поз.
Артикул
Описание
8
PUMP , Replaced By: A0005537901, +001A0015534205
8
PUMP (HAND PUMP) WEBER
11
PISTONTO 000 553 79 01,WEBER
14
VALVETO 000 553 79 01,WEBER
17
FILTERHUNGER
17
FILTER
23
FITTED WASHER
26
LOCK RING
29
SCREW OIL FILLING HUNGER
29
SCREW
35
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
35
SCREW , Replaced By: N000912008201
35
SCREW
35
SCREW , Replaced By: N000000000190
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
40
GASKETHUNGER
47
GASKET KIT HAND PUMP TO 000 553 68 01
47
GASKET KIT HAND PUMP
50
SCREW END PIECE TO EXHAUST PIPE M 10X25
50
SCREW BRACKET TO SIDE MEMBER
50
SCREW , Replaced By: N304017010002
54
NUT STRAP TO BRACKET
110
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING HUNGER
110
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
111
GUIDEWEBER,TO 001 553 45 05
111
GUIDEWEBER
113
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
113
GASKET KIT HYDRAULIC CYLINDER HUNGER,TO 000 553 89 05
113
GASKET KIT HYDRAULIC CYLINDER HUNGER,TO 001 553 47 05
113
GASKET KIT HYDRAULIC CYLINDER WEBER
116
BEARING BRACKET HYDRAULIC CYLINDER
119
SCREW BEARING BRACKET TO FRAME M 16X60
119
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
119
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X50
125
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
128
WASHER HYDRAULIC CYLINDER TO CAB
131
COTTER PIN6,3X36 MM
145
PIN HYDRAULIC CYLINDER TO ROCKER ARM
147
WASHER HYDRAULIC CYLINDER TO ROCKER ARM
150
NUT LEVER TO SUPPORT
153
COTTER PIN LEVER TO SUPPORT
