Главная
›
Mercedes
›
TRUCK
›
2448 S/LS,2550/S/LS, 2553 S/LS,3248,3255
›
658.195
›
52 SHEET METAL,AIR INTAKE
›
120 AIR INTAKE IL. 3
Mercedes N914116006410 - Болт

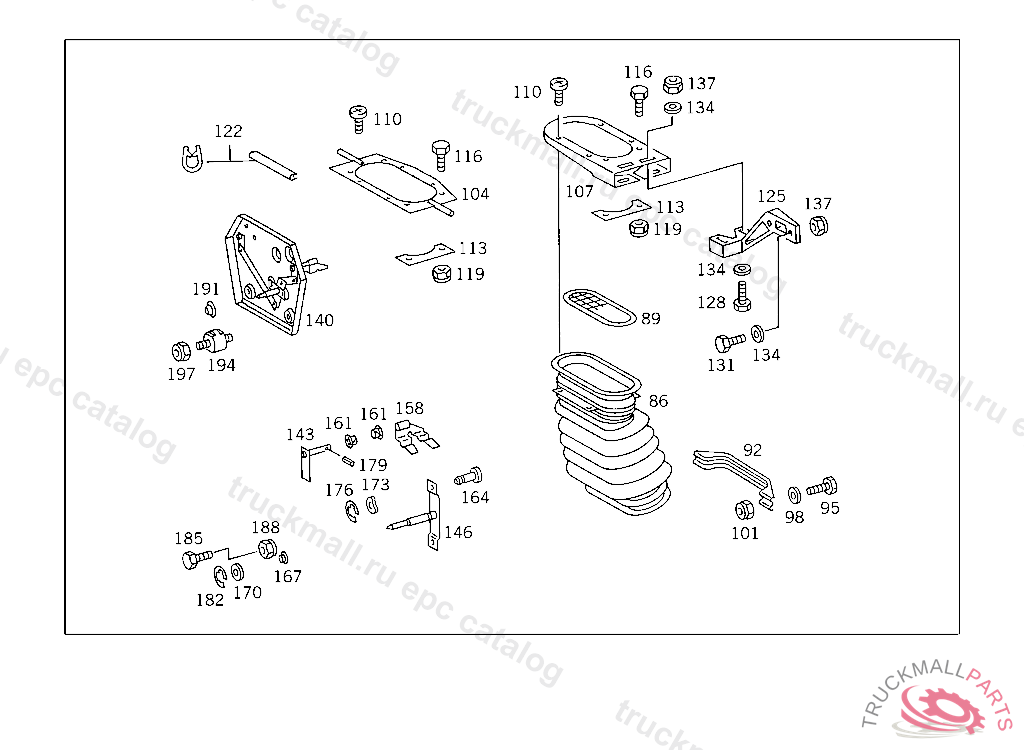

2448 S/LS,2550/S/LS, 2553 S/LS,3248,3255 658.195
52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE IL. 3
Поз.
Артикул
Описание
86
A6205200196
BOOT FROM AIR CLEANER TO INTAKE PIPE
89
A6205280103
STRAINER BOOT
92
A6205280243
CLAMP BOOT TO AIR DUCT AND TO AIR CLEANER
95
N000933008152
SCREW , Replaced By: N304017008027
98
N000125008418
WASHER , Replaced By: N000125008443
101
N913004008004
NUT , Replaced By: N913004008001
107
A6575280040
BRACKET BOOT
107
A6575280040
BRACKET BOOT
107
A6205280840
BRACKET , Replaced By: A6575280040
110
N914116006410
SCREW BOOT TO BRACKET
113
A6205280940
BRACKET BOOT
116
N000933008212
SCREW , Replaced By: N304017008016
119
N913004008004
NUT , Replaced By: N913004008001
125
A6205280139
SUPPORT BOOT
128
N000933010150
SCREW BRACKET TO SUPPORT
131
N000933010094
SCREW EXHAUST PIPE TO BRACKET
131
N000933010129
SCREW , Replaced By: N304017010002
134
N007349010007
WASHER STRUT TO CROSS MEMBER
134
N000125010518
WASHER , Replaced By: N000125010532
137
N913004010008
NUT , Replaced By: N910113010000
