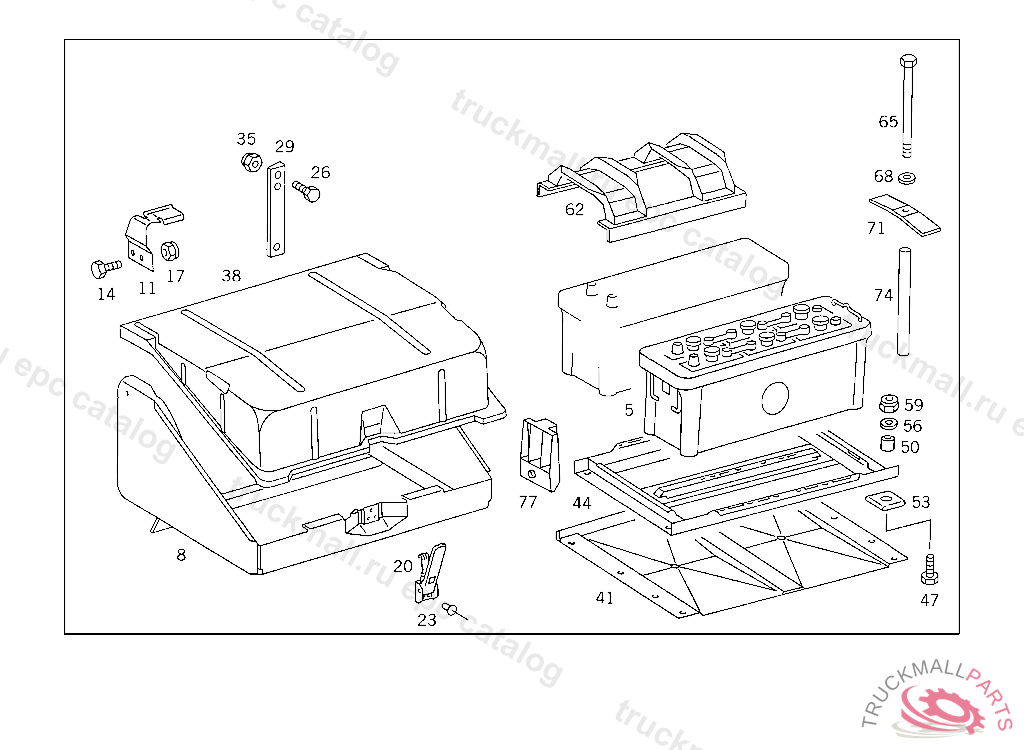

Поз.
Артикул
Описание
5
BATTERY FILLED AND CHARGED 12V/220AH
5
BATTERY FILLED AND CHARGED 12V/200AH
5
BATTERY FILLED AND CHARGED 12V/180AH
5
BATTERY FILLED AND CHARGED 12V/170AH
5
BATTERY12 V/165 AH
5
BATTERY , Replaced By: A0045415101
5
BATTERY12 V/135 AH
5
BATTERY12 V/115 AH
5
BATTERY12V/120 AH
5
BATTERY , Replaced By: A0035418801
8
BATTERY SUPPORT APPARATUS
11
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
11
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
14
SCREW LICENSE PLATE TO BRACKET
14
SCREW , Replaced By: N304017006020
17
NUT PUMP TO BRACKET
17
NUT , Replaced By: N913004006001
20
FASTENING CLAMP BATTERY/APPARATUS SUPPORT
20
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
23
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
26
SCREW BRACKET TO CAB CONSOLE,K 035197
29
SHIM SUPPORT TO SIDE MEMBER
35
NUT BRACKET TO SIDE MEMBER
35
NUT , Replaced By: N910113014001
38
COVER BATTERY/APPARATUS SUPPORT
41
BATTERY CASE
44
RAIL. BATTERY BASE FRAME
47
SCREW BRACKET TO FRAME SIDE MEMBER
50
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
53
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
56
WASHER STRUT TO CROSS MEMBER
56
WASHER , Replaced By: N007349010007
59
NUT STRAP TO BRACKET
59
NUT , Replaced By: N910113010000
62
MOUNTING FRAME BATTERY
65
SCREW BATTERY MOUNTING M 8X260X40
68
WASHER BRACKET TO LEFT SIDE MEMBER
68
WASHER , Replaced By: N009021008213
71
BRACKET BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
71
BRACKET , Replaced By: A6205410526
74
SPACER TUBE BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
77
STOP BATTERY MOUNTING
999
BLIND CAPTO A 004 541 48 01
