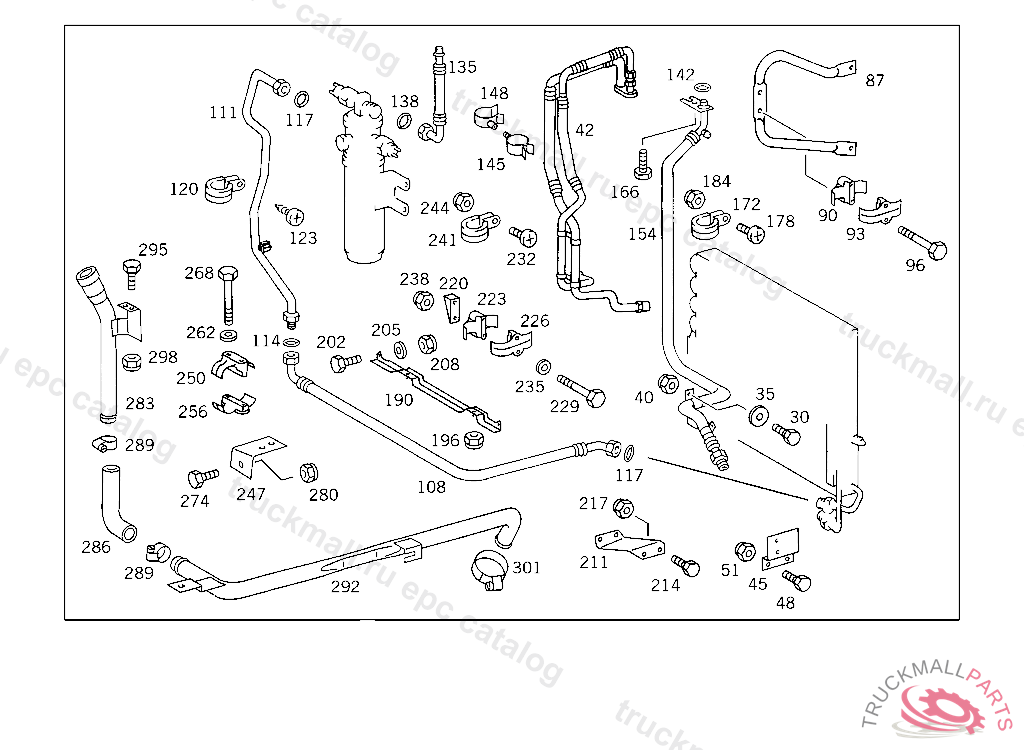

Поз.
Артикул
Описание
30
SCREW PUMP TO BRACKET
30
SCREW , Replaced By: N304017006016
35
WASHER COMPRESSED AIR LINE TO BRACKET
35
WASHER , Replaced By: N009021006208
40
NUT PUMP TO BRACKET
40
NUT , Replaced By: N913004006001
42
PIPE LINE DELIVERY AND SUCTION HOSES
42
PIPE LINE DELIVERY AND SUCTION HOSES,5 598040
42
PIPE LINE DELIVERY AND SUCTION HOSES
45
BRACKET BRACKET TO ENGINE CROSS MEMBER
48
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
51
NUT STRAP TO SUPPORT,5 149419
87
BRACKET DELIVERY AND SUCTION HOSES,5 598040
87
BRACKET DELIVERY AND SUCTION HOSES,5 598040
90
CLAMP DELIVERY AND SUCTION LINES TO CAB
93
CLAMP PIPE LINE TO BRACKET
96
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
108
HOSE FROM CONDENSER TO LIQUID TANK
108
HOSE FROM CONDENSER TO LIQUID TANK
111
PIPE LINE FROM CONDENSER TO LIQUID TANK
111
PIPE LINE FROM CONDENSER TO LIQUID TANK,5 519722
111
PIPE LINE FROM CONDENSER TO LIQUID TANK,5 519721
114
SEAL RING HOSE TO CONDENSER 14 MM
114
SEAL RING , Replaced By: A1409970845
114
SEAL RING , Replaced By: A1249970545
117
SEAL RING HOSE TO RESERVOIR 10.6 MM
120
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
123
SHEET METAL SCREW OIL LINE MOUNTING
135
HOSE FROM LIQUID TANK TO EXPANSION VALVE
135
HOSE FROM LIQUID TANK TO EXPANSION VALVE
138
SEAL RING HOSE TO RESERVOIR 10.6 MM
142
O-RING HOSE TO EXPANSION VALVE 17X2
142
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
142
SEAL RING , Replaced By: A1409970645
142
SEAL RING , Replaced By: A1249970345
142
SEAL RING , Replaced By: A1249970345
145
CLAMP HOSE TO HOSE 29 MM
148
CLAMP HOSE TO HOSE 20 MM
154
HOSE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT
154
HOSE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT
166
SCREW BRACKET ON LOAD SENSOR
172
CLAMP DELIVERY AND SUCTION LINES TO FRAME
172
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
178
SCREW CLAMP MOUNTING M 6X16
178
SCREW , Replaced By: N000000001146
184
NUT BRACKET TO PIN
190
BRACKET DELIVERY AND SUCTION LINES TO RADIATOR
190
BRACKET , Replaced By: A6528300114
190
BRACKET DELIVERY AND SUCTION LINES TO RADIATOR
196
NUT PUMP TO BRACKET
196
NUT , Replaced By: N913004006001
202
SCREW COVER PLATE TO BRACKET
202
SCREW BRACKET ON LOAD SENSOR
205
WASHER COMPRESSED AIR LINE TO BRACKET
205
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
205
WASHER DELIVERY AND SUCTION LINES TO RETAINING RAIL
208
NUT PUMP TO BRACKET
208
NUT , Replaced By: N913004006001
211
BRACKET DELIVERY AND SUCTION LINES TO CAB
214
SCREW CLAMP MOUNTING M 6X16
214
SCREW , Replaced By: N000000001146
217
NUT PUMP TO BRACKET
217
NUT , Replaced By: N913004006001
220
PAD DELIVERY AND SUCTION LINES TO CAB
223
CLAMP DELIVERY AND SUCTION LINES TO CAB
226
CLAMP PIPE LINE TO BRACKET
229
SCREW DELIVERY AND SUCTION LINES TO CAB
232
SCREW DELIVERY AND SUCTION LINES TO CAB
235
WASHER COMPRESSED AIR LINE TO BRACKET
235
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
238
NUT PUMP TO BRACKET
238
NUT , Replaced By: N913004006001
241
CLAMP FEED LINE TO THERMOSTAT
244
NUT PUMP TO BRACKET
244
NUT , Replaced By: N913004006001
247
BRACKET DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
247
BRACKET DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
250
CLAMP DELIVERY AND SUCTION LINES TO CAB
250
CLAMP DELIVERY AND SUCTION LINES TO CAB
256
CLAMP PIPE LINE TO BRACKET
256
CLAMP PIPE LINE TO BRACKET
262
WASHER COMPRESSED AIR LINE TO BRACKET
262
WASHER COMPRESSED AIR LINE TO BRACKET
262
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
268
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
268
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
274
SCREW PIPE CLAMP
274
SCREW PIPE CLAMP
274
SCREW , Replaced By: N304017008021
280
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
280
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
280
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
280
NUT , Replaced By: N913004008001
283
PIPE ELBOW OIL REFILLING
286
HOSE PIPE ELBOW
289
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
289
CLAMP , Replaced By: N000000000671
292
PIPE ELBOW FROM OIL FILTER NECK TO ENGINE
292
PIPE ELBOW , Replaced By: A6565200106
292
PIPE ELBOW , Replaced By: A6525201406
295
SCREW PUMP TO BRACKET
295
SCREW , Replaced By: N304017006016
298
NUT PUMP TO BRACKET
298
NUT , Replaced By: N913004006001
301
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
301
CLAMP , Replaced By: N000000000671
999
SEAL RING
999
SEAL RING , Replaced By: A1409970945
999
HOSE FROM LIQUID TANK TO EXPANSION VALVE
