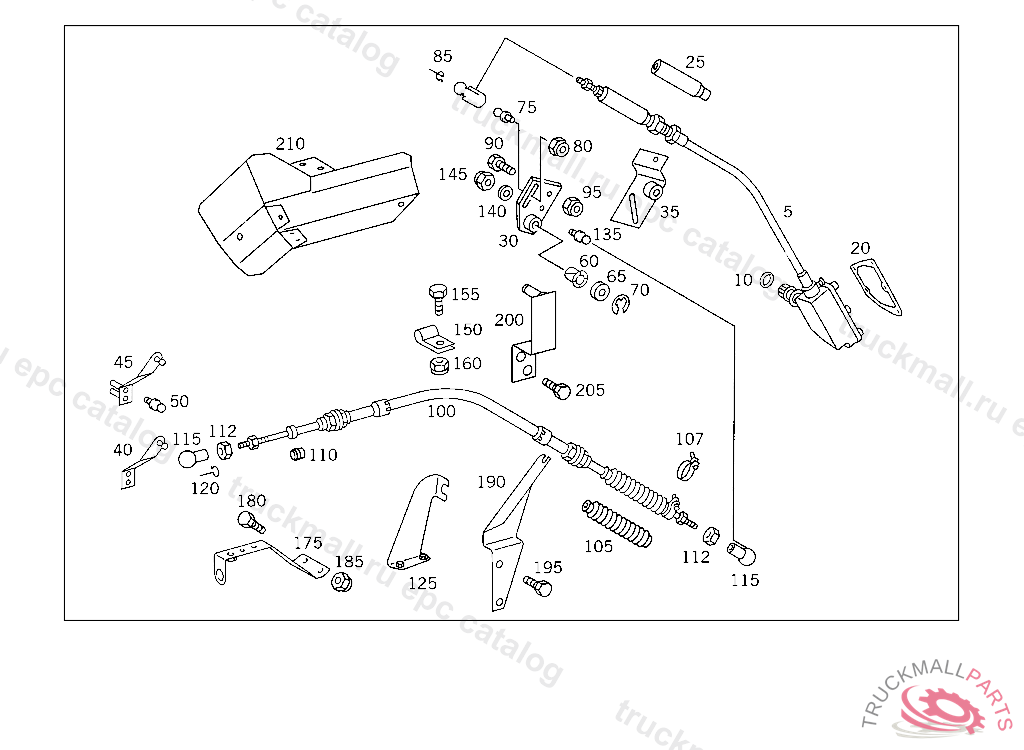

Поз.
Артикул
Описание
5
MODULATOR
5
MODULATOR
10
SEAL RING
20
GASKET
25
BOOT
30
LEVER MODULATOR,CONTROL SHAFT
30
LEVER REAR CONTROL LEVER
30
LEVER MODULATOR,CONTROL SHAFT
35
LEVER MODULATOR,CONTROL SHAFT
40
LEVER (CONTROL LEVER)
45
LEVER WIRE CABLE TO ENGINE CONTROL LEVER
50
BALL PIVOT LEVER
50
BALL PIVOT , Replaced By: A3129910120
60
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
65
COVERING INTERMEDIATE BEARING
70
LOCK PLATE INTERMEDIATE BEARING
75
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
75
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
80
NUT , Replaced By: N913004006001
80
NUT PUMP TO BRACKET
80
NUT AT FILTER BRACKET
85
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
90
SCREW BRACKET ON LOAD SENSOR
90
SCREW DISTRIBUTOR TO CAB
95
NUT , Replaced By: N913004006001
95
NUT PUMP TO BRACKET
95
NUT AT FILTER BRACKET
100
WIRE CABLE FROM ENGINE TO TRANSMISSION
100
WIRE CABLE FROM ENGINE TO TRANSMISSION
100
WIRE CABLE FROM ENGINE TO TRANSMISSION
100
WIRE CABLE FROM ENGINE TO TRANSMISSION
100
WIRE CABLE MODULATOR CABLE TO ENGINE
100
WIRE CABLE FROM ENGINE TO TRANSMISSION
100
WIRE CABLE FROM ENGINE TO TRANSMISSION
100
WIRE CABLE FROM ENGINE TO TRANSMISSION
100
WIRE CABLE FROM ENGINE TO TRANSMISSION
100
WIRE CABLE FROM ENGINE TO TRANSMISSION
105
BOOT I.D., 8/13 MM
107
CLAMP HOSE TO PARKING BRAKE VALVE
110
GROMMET
112
NUT BALL PIVOT TO LEVER
115
BALL SOCKET PULL ROD TO LEVER
120
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
125
BRACKET WIRE CABLE TO ENGINE
135
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
135
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
140
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
140
WASHER COMPRESSED AIR LINE TO BRACKET
145
NUT , Replaced By: N913004006001
145
NUT PUMP TO BRACKET
150
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
155
SCREW , Replaced By: N304017006016
155
SCREW PUMP TO BRACKET
160
NUT , Replaced By: N913004006001
160
NUT PUMP TO BRACKET
175
BRACKET CHOKE
180
SCREW PIPE CLAMP
180
SCREW , Replaced By: N910142008001
180
SCREW , Replaced By: N304017008021
180
SCREW BRACKET TO BRACKET
185
NUT , Replaced By: N913004008001
185
NUT BRACKET TO BRACKET
185
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
190
BRACKET WIRE CABLE TO ENGINE
195
SCREWM 16X25
195
SCREW , Replaced By: N304017016011
200
BRACKET WIRE CABLE TO TRANSMISSION
205
SCREW ENGINE REAR SUPPORT TO TRANSMISSION
210
PROTECTIVE PLATE (HEAT SHIELD)
999
SCREW CYLINDER TO BRACKET
999
BRACKET WIRE CABLE TO ENGINE
999
BRACKET MODULATOR
999
ACCELERATOR PEDAL PARTS KIT
999
BRACKET INTERMEDIATE BEARING TO ENGINE, SIMPLE PART-PLEASE HAVE SHOP MADE
999
BRACKET WIRE CABLE TO ENGINE,REAR
999
WIRE CABLE PARTS KIT
999
LEVER MODULATOR TO ENGINE CONTROL SHAFT
999
SPRING AT CONTROL LEVER
999
ARTICULATION PIECE MODULATOR CONTROL CABLE
