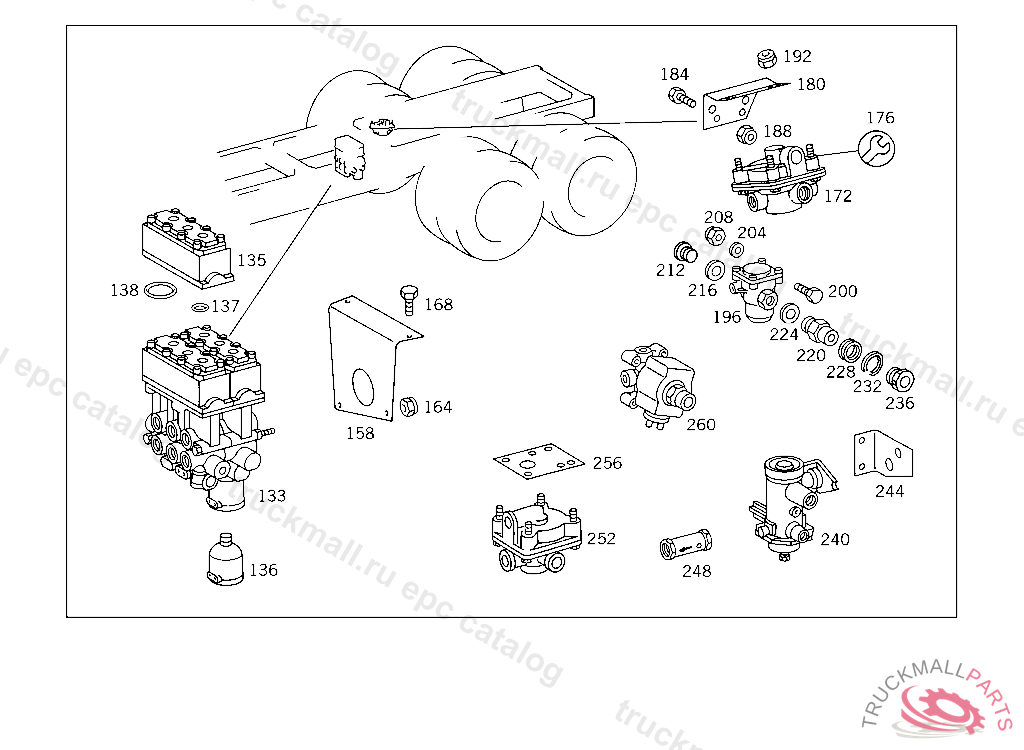

Поз.
Артикул
Описание
133
VALVE REAR AXLE SELF-LEVELLING DEVICE
135
MAGNET
135
MAGNET CONNECTION OF COMPRESSED AIR LINES
136
MUFFLER TRAILER CONTROL VALVE
137
SEALING CORD11.3X2.4
138
SEAL RING , NOT USED
158
BRACKET AIR SPRING VALVE
164
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
NUT , Replaced By: N913004008001
168
SCREW , Replaced By: N304017008034
168
SCREW , Replaced By: N304017008021
168
SCREW PIPE CLAMP
168
SCREW BRACKET TO CROSS CONNECTION STRUT
172
VALVE PRESSURE LIMITER FOR BELLOWS RESIDUAL PRESSURE
176
REPAIR KITWABCO
180
BRACKET OVERFLOW VALVE
184
SCREW HAND PUMP TO BRACKET
188
NUT STRAP TO BRACKET
188
NUT BRACKET TO SIDE MEMBER,XB209706
192
NUT , Replaced By: A0009906350
196
VALVE (PRESSURE LIMIT VALVE)
200
SCREW VALVE TO CAB M 8X85
204
WASHER , Replaced By: N000125008443
204
WASHER EXHAUST MUFFLER TO STRAP
208
NUT , Replaced By: A0009906350
212
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
212
SCREW PLUG , Replaced By: N000908022011
216
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
220
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
224
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
228
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
232
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
236
SCREW. UNION SCREW LINE CONNECTION
240
VALVE (PRESSURE LIMIT VALVE)
244
BRACKET PRESSURE LIMIT VALVE
248
VALVE (THROTTLE CHECK VALVE)
252
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
252
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
256
BRACKET RELAY VALVE TO CROSS MEMBER
260
BLEEDER VALVE , 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BALL JOINT TRAVEL SENSOR
999
BALL JOINT LEFT-HAND THREAD,BALL DIAMETER 10 MM
999
REPAIR KITTO 388 997 88 36
999
AIR CLEANER ,5 760168K 154651
999
MAGNET ,5 760168K 154651
999
PROTECTIVE CAPWABCO
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
LEVER AIR SPRING VALVE,5 760167
999
BRACKET TEST CONNECTION
999
CYLINDER REAR AXLE SELF-LEVELLING DEVICE
999
FITTING FROM PUMP TO CYLINDER
999
SEAL RING LINE CONNECTION
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
NUT
999
NUT BALL SOCKET TO ROD
999
PULL ROD PNEUMATIC SUSPENSION CONTROL
