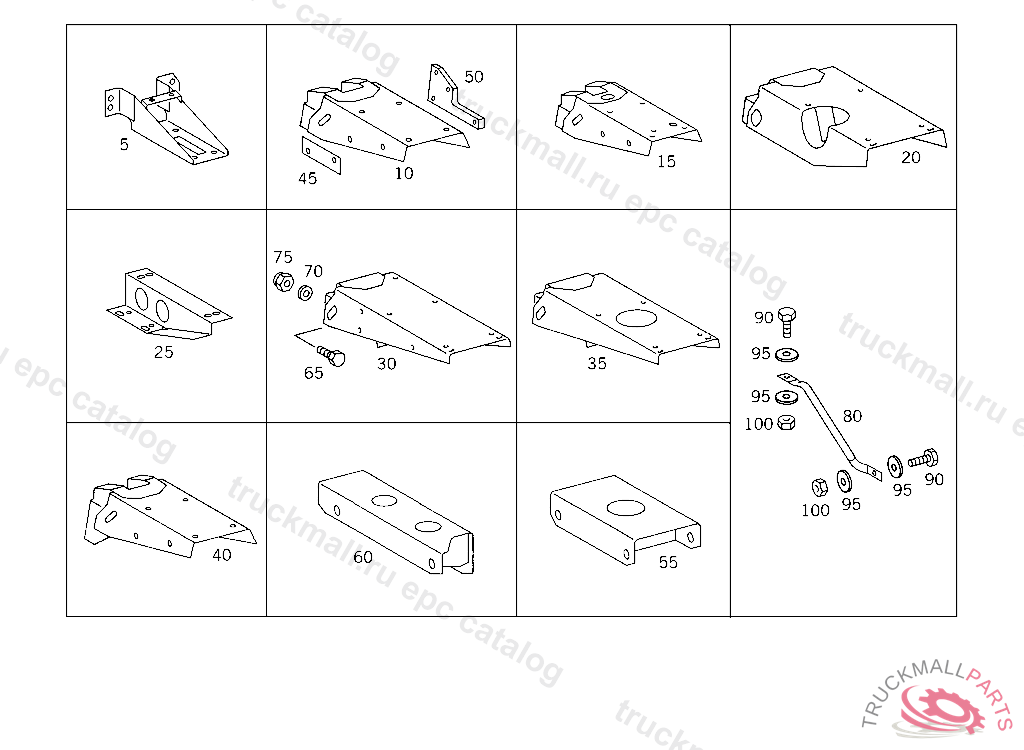

Поз.
Артикул
Описание
5
SUPPORT EXHAUST MUFFLER
5
SUPPORT EXHAUST MUFFLER
10
SUPPORT EXHAUST MUFFLER
15
SUPPORT EXHAUST MUFFLER
20
SUPPORT EXHAUST MUFFLER
20
SUPPORT EXHAUST MUFFLER
20
SUPPORT EXHAUST MUFFLER
20
SUPPORT EXHAUST MUFFLER
20
SUPPORT EXHAUST MUFFLER
20
SUPPORT EXHAUST MUFFLER
25
SUPPORT EXHAUST MUFFLER
30
SUPPORT EXHAUST MUFFLER
30
SUPPORT EXHAUST MUFFLER
35
SUPPORT EXHAUST MUFFLER
35
SUPPORT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6554900734
35
SUPPORT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6254901234
35
SUPPORT EXHAUST MUFFLER
35
SUPPORT EXHAUST MUFFLER
40
SUPPORT EXHAUST MUFFLER
40
SUPPORT EXHAUST MUFFLER
45
PLATE EXHAUST MUFFLER TO SIDE MEMBER
50
PLATE EXHAUST MUFFLER TO SIDE MEMBER
55
BRACKET UPPER TRANSVERSE SUPPORT
60
BRACKET LOWER SUPPORT
60
BRACKET LOWER SUPPORT
65
SCREW SUPPORT TO SIDE MEMBER M14X40
70
WASHER , Replaced By: N000125015019
70
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
75
NUT PARTICLE FILTER M14
80
STRUT EXHAUST MUFFLER TO CROSS MEMBER
80
STRUT EXHAUST MUFFLER TO CROSS MEMBER
80
STRUT EXHAUST MUFFLER TO CROSS MEMBER
80
STRUT EXHAUST MUFFLER TO CROSS MEMBER
80
REINFORCEMENT EXHAUST MUFFLER TO CROSS MEMBER
80
STRUT EXHAUST MUFFLER TO CROSS MEMBER
80
STRUT EXHAUST MUFFLER TO CROSS MEMBER
80
STRUT EXHAUST MUFFLER TO CROSS MEMBER
80
STRUT EXHAUST MUFFLER TO CROSS MEMBER
90
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
90
SCREW CLAMP TO BRACKET,5 597426
90
SCREW , Replaced By: N910142008009
95
WASHER , Replaced By: N009021008213
95
WASHER BRACKET TO LEFT SIDE MEMBER
100
NUT BRACKET TO BRACKET
999
STRUT EXHAUST MUFFLER TO CROSS MEMBER
999
STRUT EXHAUST MUFFLER TO CROSS MEMBER
999
SUPPORT EXHAUST MUFFLER
999
SUPPORT EXHAUST MUFFLER
