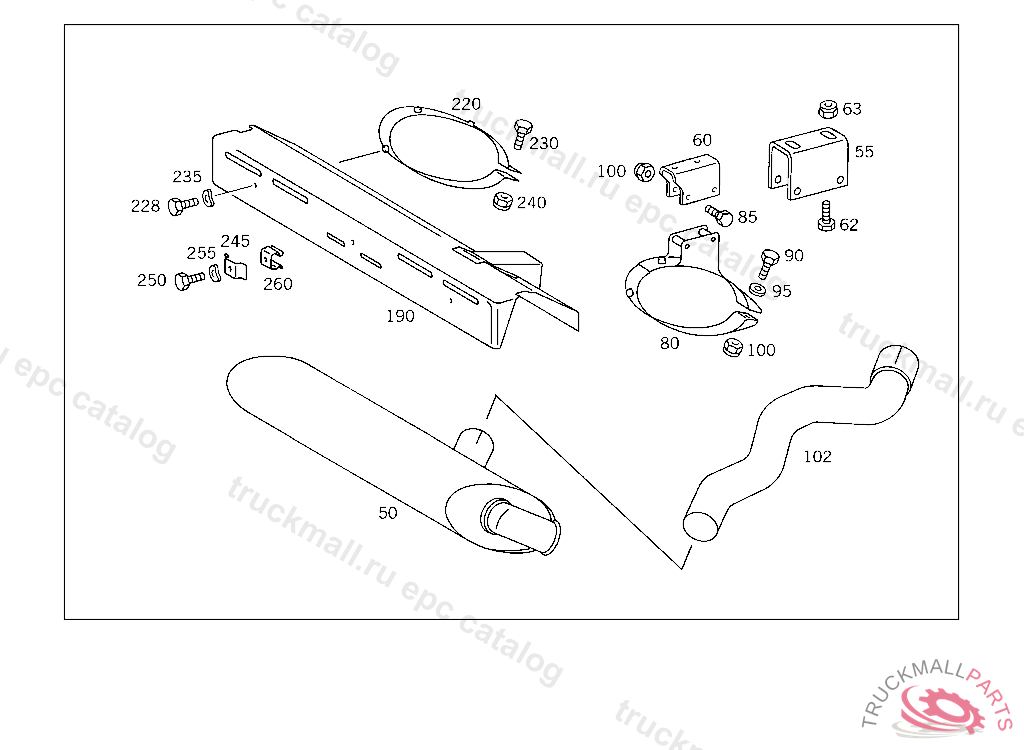

Поз.
Артикул
Описание
50
EXHAUST MUFFLER
50
EXHAUST MUFFLER ,5 193595
50
EXHAUST MUFFLER
50
EXHAUST MUFFLER ,5 193595
55
BRACKET AT BRACKET
60
BRACKET EXHAUST MUFFLER
60
BRACKET EXHAUST MUFFLER
62
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
63
NUT SUPPORT TO SIDE MEMBER
80
STRAP MAIN MUFFLER
80
STRAP EXHAUST MUFFLER
80
STRAP EXHAUST MUFFLER
85
SCREW SHIFTING ROD TO SHIFT LEVER
85
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
85
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
85
SCREW BRACKET TO BEARING BRACKET,K 274033
85
SCREW BRACKET TO SIDE MEMBER
85
SCREW EXHAUST PIPE TO SIDE MEMBER
85
SCREW , Replaced By: N910105010009
85
SCREW , Replaced By: N000933010192
85
SCREW , Replaced By: N304017010002
85
SCREW , Replaced By: N304017010050
85
SCREW , Replaced By: N304017010055
85
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
90
SCREW , Replaced By: N304017010002
90
SCREW BRACKET TO SIDE MEMBER
90
SCREW EXHAUST PIPE TO BRACKET
90
SCREW STRUT TO FRAME, LEFT
95
WASHER RADIATOR TO RUBBER MOUNTING
95
WASHER , Replaced By: N000125010532
100
NUT , Replaced By: N913023010002
100
NUT , Replaced By: N910113010000
100
NUT STRAP TO BRACKET
100
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
102
CONNECTOR PRE-MUFFLER TO MAIN MUFFLER,5 564361
102
CONNECTOR PRE-MUFFLER TO MAIN MUFFLER,5 564361
102
INTERMEDIATE PIECE PRE-MUFFLER TO MAIN MUFFLER,5 564361
102
INTERMEDIATE PIECE PRE-MUFFLER TO MAIN MUFFLER,5 564361
190
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
190
PROTECTIVE PLATE EXHAUST MUFFLER,5 193595
190
PROTECTIVE PLATE EXHAUST MUFFLER
220
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
220
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
228
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
228
SCREW PROTECTIVE PLATE TO CLAMP
228
SCREW , Replaced By: N304017008008
230
SCREW , Replaced By: N304017010002
230
SCREW EXHAUST PIPE TO SIDE MEMBER
230
SCREW BRACKET TO SIDE MEMBER
230
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
235
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
235
SPRING WASHER , Replaced By: N000137008212
240
NUT , Replaced By: N913023010002
240
NUT , Replaced By: N910113010000
240
NUT STRAP TO BRACKET
240
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
245
BRACKET LICENSE PLATE
250
SCREW LICENSE PLATE TO BRACKET
250
SCREW AT FILTER BRACKET
250
SCREW , Replaced By: N304017006020
255
SPRING WASHER LICENSE PLATE TO BRACKET
260
NUT RETAINER , Replaced By: A0019906791
260
NUT RETAINER LICENSE PLATE TO BRACKET
999
SCREW BRACKET MOUNTING M 8X110
999
SCREW , Replaced By: N910105010011
999
PIPE ELBOW EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET EXHAUST PIPE,5 564360
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
999
NUT , Replaced By: N913023010002
