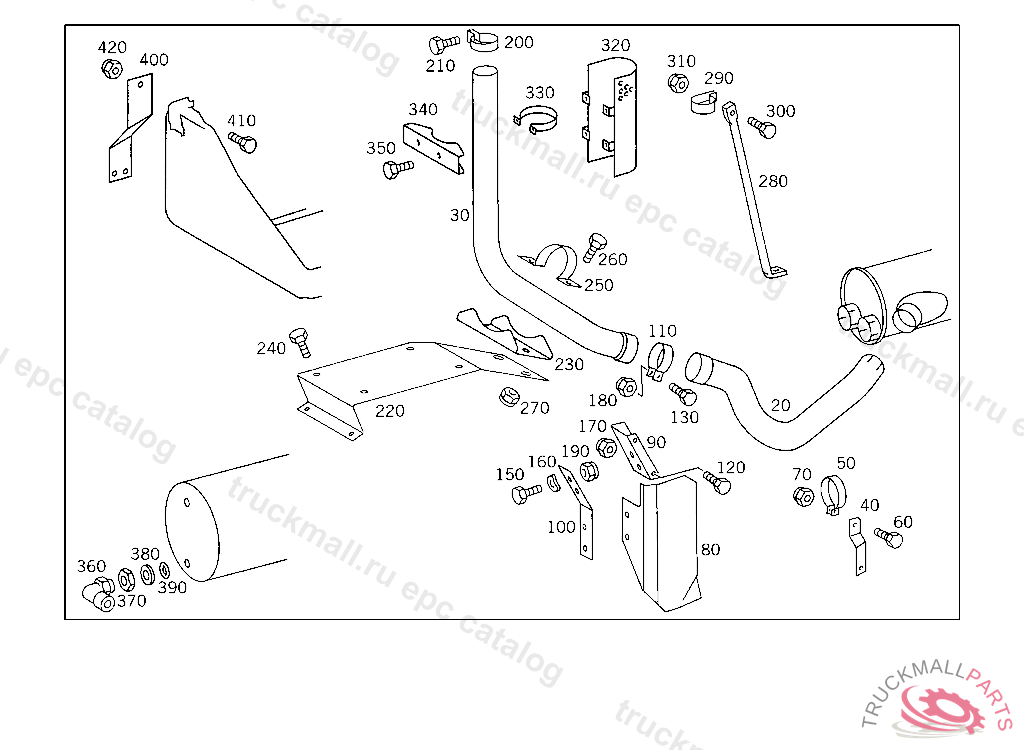

Поз.
Артикул
Описание
20
CONNECTOR , Replaced By: A6254924207
20
EXHAUST PIPE ,K 103235
20
CONNECTOR EXHAUST MUFFLER TO EXHAUST PIPE, STATE IDENT NO. WHEN ORDERING
20
INTERMEDIATE PIECE EXHAUST MUFFLER TO EXHAUST PIPE,K 022418
20
CONNECTOR EXHAUST MUFFLER TO EXHAUST PIPE
20
INTERMEDIATE PIECE EXHAUST MUFFLER TO EXHAUST PIPE
20
CONNECTOR EXHAUST MUFFLER TO EXHAUST PIPE, NOT USED
30
END PIECE VERTICAL TAIL PIPE BEHIND CAB,K 103235
30
EXHAUST PIPE VERTICAL TAIL PIPE BEHIND CAB,K 103235
30
REAR EXHAUST PIPE BEHIND CAB,UPWARD
30
FLEXIBLE METAL TUBE FRONT
30
END PIECE , Replaced By: A6554926205
40
BRACKET AT CROSS MEMBER
50
CLAMP EXHAUST PIPE
50
CLAMP , Replaced By: A6554920340
60
SCREW , Replaced By: N304017010002
60
SCREW BRACKET TO SIDE MEMBER
70
NUT , Replaced By: N910113010000
70
NUT STRAP TO BRACKET
80
PROTECTIVE PLATE (HEAT SHIELD)
90
BRACKET TAIL PIPE
100
BRACKET HEAT SHIELD TO FRAME
110
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
110
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
110
CLAMP , Replaced By: N071555100501
120
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
130
SCREW , Replaced By: N304017010002
130
SCREW BRACKET TO SIDE MEMBER
150
SCREW PIPE CLAMP
150
SCREW , Replaced By: N304017008021
150
SCREW , Replaced By: N304017008034
150
SCREW BRACKET TO CROSS CONNECTION STRUT
160
SPRING WASHER , Replaced By: N000137008212
160
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
170
NUT , Replaced By: N910113014001
170
NUT BRACKET TO SIDE MEMBER
180
NUT , Replaced By: N910113010000
180
NUT STRAP TO BRACKET
190
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
190
NUT , Replaced By: N913004008001
190
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
200
CLAMP EXHAUST PIPE TO BRACKET
200
CLAMP HEAT SHIELD TO TAILPIPE
210
SCREW BRACKET TO CROSS CONNECTION STRUT
210
SCREW , Replaced By: N304017008034
210
SCREW , Replaced By: N304017010002
210
SCREW BRACKET TO SIDE MEMBER
220
BRACKET , Replaced By: A6554927941
220
BRACKET TAIL PIPE
220
BRACKET VERTICAL TAIL PIPE
230
BASE PLATE HEAT SHIELD TO TAILPIPE
240
SCREW , Replaced By: N304017008027
240
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
250
CLAMP EXHAUST PIPE TO BRACKET
260
SCREW , Replaced By: N304017008021
260
SCREW PIPE CLAMP
270
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
270
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
270
NUT , Replaced By: N913004008001
280
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
290
CLAMP EXHAUST PIPE TO BRACKET
290
CLAMP EXHAUST PIPE TO BRACKET
300
SCREW END PIECE TO EXHAUST PIPE M 10X25
310
NUT , Replaced By: N910113010000
310
NUT STRAP TO BRACKET
320
PROTECTIVE PLATE (HEAT SHIELD)
330
CLAMP EXHAUST PIPE TO BRACKET
330
CLAMP HEAT SHIELD TO TAILPIPE
340
BASE PLATE HEAT SHIELD TO TAILPIPE
350
SCREW BRACKET TO CROSS CONNECTION STRUT
350
SCREW , Replaced By: N304017008034
360
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
370
NUT CHECK VALVE TO AIR RESERVOIR
380
THRUST RING CHECK VALVE TO AIR RESERVOIR
380
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
390
O-RING CHECK VALVE TO AIR RESERVOIR
400
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
410
SCREW END PIECE TO EXHAUST PIPE M 10X25
420
NUT STRAP TO BRACKET
420
NUT , Replaced By: N910113010000
999
END PIECE TAIL PIPE ON THE RIGHT
999
BRACKET FENDER
999
SUPPORT (CONSOLE),FOR FENDER
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE TAIL PIPE ON THE RIGHT
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE)
999
BRACKET TAIL PIPE
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
END PIECE
999
END PIECE ,5 765949
999
PROTECTIVE PLATE , NOT USED
999
EXHAUST MUFFLER
999
BRACKET
999
CONNECTOR
999
END PIECE VERTICAL TAIL PIPE BEHIND CAB,K 103236
999
END PIECE BEHIND CAB,UPWARD
999
BRACKET REAR EXHAUST PIPE TO CROSS MEMBER,K 103236
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET , Replaced By: A3814923841
999
BRACKET VERTICAL TAIL PIPE BEHIND CAB,K 103235
999
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
WASHER BRACKET TO COVERING
