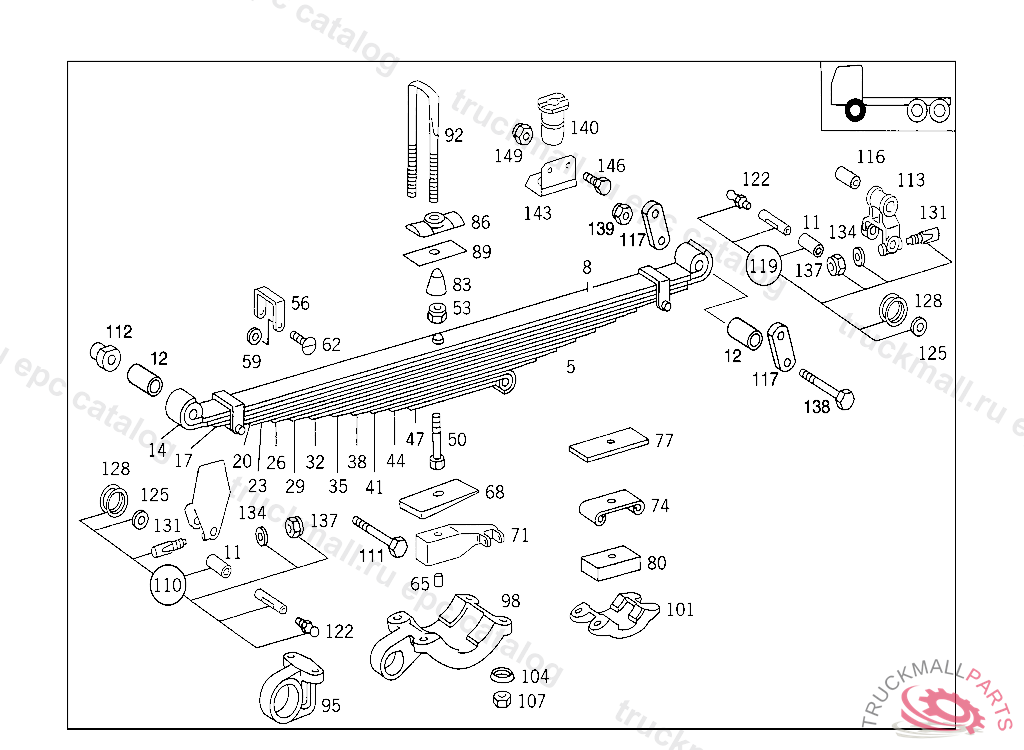

Поз.
Артикул
Описание
5
FRONT SPRING 13-LEAF
5
FRONT SPRING (TRAPEZOIDAL SPRING),NUMBER OF LEAVES: "13",K 063501
5
FRONT SPRING ,K 064786, Replaced By: A6563200202
8
SPRING LEAFNO.1
8
SPRING LEAFNO.1,K 063501
11
BUSHING FRONT
11
BUSHING FRONT
12
RUBBER MOUNTING
14
SPRING LEAFNO.2,K 063501
14
SPRING LEAFNO.2
17
SPRING LEAFNO.3,K 063501
17
SPRING LEAFNO.3
20
SPRING LEAFNO.4
20
SPRING LEAF , Replaced By: A6563210214
23
SPRING LEAF , Replaced By: A3953210115
23
SPRING LEAF , Replaced By: A6563210215
23
SPRING LEAFNO.5
26
SPRING LEAF , Replaced By: A6563210216
26
SPRING LEAFNO.6
29
SPRING LEAF , Replaced By: A6563210217
29
SPRING LEAFNO.7
32
SPRING LEAFNO.8
32
SPRING LEAF , Replaced By: A6563210218
35
SPRING LEAF , Replaced By: A6563210219
35
SPRING LEAFNO.9
38
SPRING LEAF , Replaced By: A6563210120
38
SPRING LEAFNO.10
41
SPRING LEAFNO.11
41
SPRING LEAF , Replaced By: A6563210121
44
SPRING LEAFNO.12
44
SPRING LEAFNO.12
47
SPRING LEAF , Replaced By: A6563210123
47
SPRING LEAFNO.13
50
SCREW (SPRING BOLT)
53
NUT , Replaced By: N910113014000
53
NUT STEERING SUPPORT TO FRAME
56
SPRING CLAMP SPRING EYE,FRONT AND REAR
59
WASHER FOR SPRING CLAMPS
62
SCREW FOR SPRING CLAMPS
65
PIN FRONT SPRINGS TO FRONT AXLE
68
SHIM FRONT SPRINGS TO FRONT AXLE
80
SHIM FRONT SPRINGS TO FRONT AXLE,5 507220
83
RUBBER BUFFER SPRING STOP
86
PLATE FRONT SPRINGS TO FRONT AXLE,K 156938
86
PLATE FRONT SPRINGS TO FRONT AXLE
92
U-BOLT FRONT SPRINGS TO FRONT AXLE 430 MM
98
BEARING TORSION BAR,RIGHT,5 184 732
98
BEARING TORSION BAR,LEFT,5 184 732
104
WASHER REAR SPRING TO REAR AXLE
107
NUT REAR SPRING TO REAR AXLE
107
NUT , Replaced By: N308673020002
107
NUT , Replaced By: N308674020000
110
SHACKLE PIN PARTS KIT
111
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
112
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
113
SHACKLE FRONT SPRING
116
BUSHING FRONT
116
BUSHING FRONT
117
SHACKLE FRONT SPRING,REAR,K 083474
119
SHACKLE PIN PARTS KIT
122
GREASE NIPPLE
125
WASHER AS REQUIRED 4.00 MM
125
WASHER AS REQUIRED 4.20 MM
125
WASHER AS REQUIRED 4.30 MM
128
SEAL RING SPRING SUSPENSION
131
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
134
WASHER , Replaced By: N000125010532
134
WASHER RADIATOR TO RUBBER MOUNTING
137
NUT STRAP TO BRACKET
137
NUT , Replaced By: N910113010000
138
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
139
NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
999
RUBBER MOUNTING , Replaced By: A0003223285
999
RUBBER MOUNTING , Replaced By: A0003223285
