Поз.
Артикул
Описание

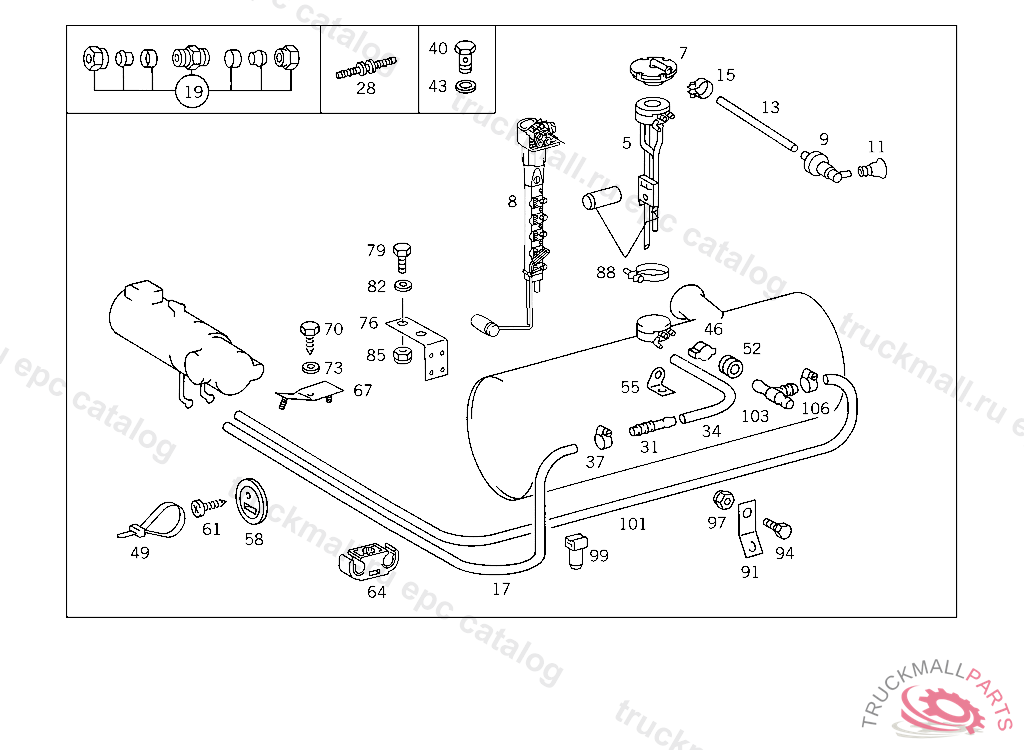

5
SENDER UNIT FUEL GAUGE
5
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
5
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
5
SENDER UNIT FUEL GAUGE
5
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
5
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
5
SENDER UNIT , Replaced By: A0085424017
5
SENDER UNIT , Replaced By: A0085428517
5
SENDER UNIT , Replaced By: A0085428617
5
SENDER UNIT , Replaced By: A0085428717
7
COVERING FUEL TANK
7
COVERING RISING PIPE,K 169122
8
SENDER UNIT , NOT USED
9
VALVE ,K 169122
9
VALVE ,K 169122
11
BOOT CHECK VALVE,K 169122
13
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
15
CLAMP , Replaced By: N916033011100
15
CLAMP CHECK VALVE,K 169122
17
PLASTIC PIPE AERATION, ORDER BY THE METER
19
FITTING , Replaced By: A0029905971
19
FITTING (PARTS KIT),LINE RUPTURE
19
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
28
CONNECTOR FUEL LINE TO TANK
31
CONNECTOR FEED & RETURN
34
HOSE LEAK LINE, ORDER BY THE METER
37
CLAMP LINE MOUNTING
40
HOLLOW SCREW LINE CONNECTION
43
SEAL RING FUEL LINE TO FEED PUMP
46
LOOM TIE LINE MOUNTING
49
LOOM TIE LINE MOUNTING 280 MM
49
LOOM TIE LINE MOUNTING
52
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
52
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
52
GROMMET HIGH PRESSURE HOSE THRU FRAME
52
GROMMET LINE PASSAGE AT SIDE MEMBER 24 MM,5 473494
55
BRACKET , Replaced By: A6454310740
55
BRACKET FUEL LINE TO BELL HOUSING
58
BRACKET LINE MOUNTING
61
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
61
SHEET METAL SCREW FUEL LINE TO CAB CONSOLE
61
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
64
BRACKET LINE MOUNTING,5 473495
67
BRACKET , NOT USED
70
SHEET METAL SCREW , NOT USED
73
WASHER COMPRESSED AIR LINE TO BRACKET
73
WASHER , Replaced By: N009021006208
76
BRACKET LINE MOUNTING,5 473495K 023789
79
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
82
WASHER RADIATOR TO RUBBER MOUNTING
82
WASHER , Replaced By: N000125010532
85
NUT , Replaced By: N910113010000
85
NUT STRAP TO BRACKET
88
CLAMP LINE MOUNTING
91
BRACKET , Replaced By: A3184923441
91
BRACKET , Replaced By: A3184923841
91
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
94
SCREW AT FILTER BRACKET
97
NUT AT FILTER BRACKET
99
BRACKET LINE TO FRONT PANEL
101
HOSE LEAK LINE
103
T-FITTING RETURN LINE
106
CLAMP , Replaced By: N000000000665
106
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
106
CLIP LEAK LINE
999
SENDER UNIT
999
BRACKET FUEL LINE TO CAB CONSOLE,5 473495
999
CLAMP RISING PIPE,5 4734955 909351
