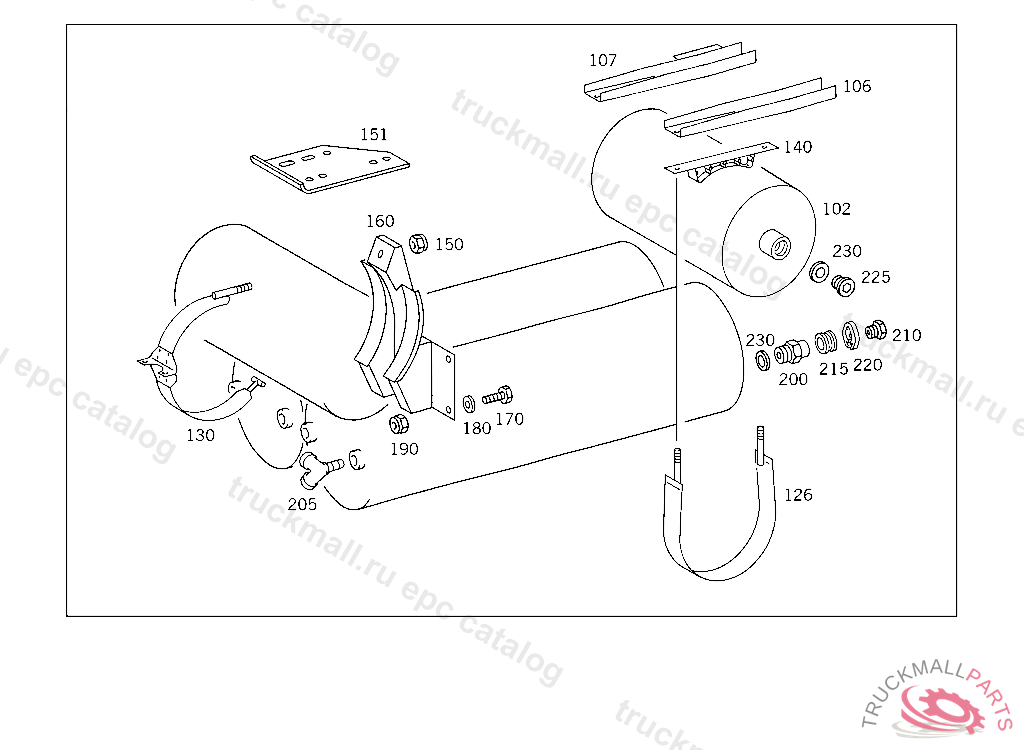

Поз.
Артикул
Описание
102
RESERVOIR20 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR: ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
102
RESERVOIR20 L, TO VOSS 230, Replaced By: A0054323401, +002A0009870446, +002A0009940203, +002A0049978272
106
BRACKET AIR RESERVOIR
107
BRACKET AT SIDE MEMBER
126
STRAP AIR RESERVOIR,K 125986
130
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
140
BASE AIR RESERVOIR
150
NUT , Replaced By: N910113010000
150
NUT STRAP TO BRACKET
150
NUT EXHAUST PIPE TO SIDE MEMBER
151
BRACKET AIR RESERVOIR,5 765578
160
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
170
SCREW PIPE CLAMP
170
SCREW BRACKET TO CAB MOUNTING CONSOLE
170
SCREW BRACKET TO BRACKET
170
SCREW BRACKET TO CONSOLE
170
SCREW BRACKET TO SIDE MEMBER,K 168169
170
SCREW , Replaced By: N910142008001
170
SCREW , Replaced By: N304017008021
170
SCREW , Replaced By: A0089907401
170
SCREW , Replaced By: N304017010043
170
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
180
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
180
WASHER , Replaced By: N000125015019
190
NUT , Replaced By: N913004008001
190
NUT , Replaced By: N910113010000
190
NUT BRACKET TO SIDE MEMBER
190
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
190
NUT STRAP TO BRACKET
200
FITTING LINE CONNECTION
205
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
210
SCREW. UNION SCREW LINE CONNECTION
215
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
220
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
225
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
225
SCREW PLUG , Replaced By: N000908022011
230
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
NUT BRACKET TO BRACKET
999
NUT STRAP TO SUPPORT
999
CONNECTOR HOSE WIDTH, 6 MM, TO M22
999
NUT BRACKET TO BEARING BRACKET
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
SEAL RING , Replaced By: A0009940747
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
LOCK RING LINE CONNECTION
999
LOCK , Replaced By: A0009945448
999
LOCK LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SCREW. UNION SCREW LINE CONNECTION
999
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
999
SCREW COVERING TO SUPPORT
999
SCREW , Replaced By: N910142008001
999
SCREW , Replaced By: N910142008009
999
ELBOW FITTING , Replaced By: A0049905371
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
999
SCREW LINE MOUNTING M 10X20
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW BRACKET TO REAR CROSS MEMBER
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313606
999
SCREW EXHAUST PIPE TO BRACKET
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
SCREW BRACKET TO TRANSMISSION
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,5 963779 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
ANGLE LINE MOUNTING
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: A3609902340
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
BRACKET AIR RESERVOIR
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
STRAP AIR RESERVOIR TO BRACKET
999
BRACKET
999
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
HOLLOW SCREW AIR RESERVOIR
999
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21", 3XM 22X1.5/1XM 16X1.5
999
BRACKET PRESSURE RATIO VALVE,5 448631
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125015019
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT BRACKET TO SIDE MEMBER
999
SCREW CLAMP TO BRACKET,5 597426
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
