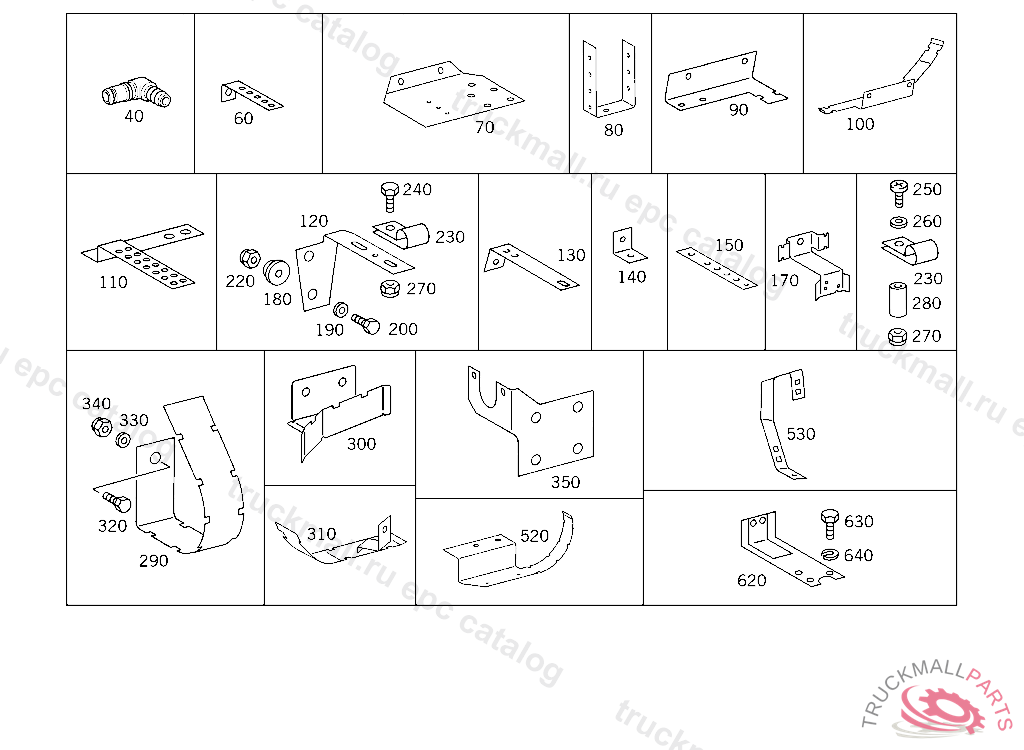

Поз.
Артикул
Описание
40
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 4 MM/9 MM
60
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
70
BRACKET COMPRESSED AIR LINE MOUNTING
80
BRACKET COMPRESSED AIR LINE MOUNTING
90
BRACKET COMPRESSED AIR LINE MOUNTING
100
BRACKET COMPRESSED AIR LINE MOUNTING
110
BRACKET CONNECTOR
120
BRACKET COMPRESSED AIR LINE MOUNTING
120
BRACKET , Replaced By: A6554313646
130
BRACKET COMPRESSED AIR LINE MOUNTING,K 049746
140
ANGLE LINE MOUNTING
150
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
170
BRACKET COMPRESSED AIR LINE MOUNTING
180
BUSHING COMPRESSED AIR LINE MOUNTING,K 062171
190
WASHER BRACKET TO LEFT SIDE MEMBER
190
WASHER STRUT TO CROSS MEMBER
190
WASHER , Replaced By: N000125010532
190
WASHER , Replaced By: N007349010007
190
WASHER RADIATOR TO RUBBER MOUNTING
200
SCREW END PIECE TO EXHAUST PIPE M 10X25
200
SCREW HAND PUMP TO BRACKET
200
SCREW , Replaced By: A0089907401
200
SCREW , Replaced By: N308676012012
200
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
200
SCREW BRACKET TO SIDE MEMBER
200
SCREW BRACKET TO SIDE MEMBER,K 168169
200
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
220
NUT STRAP TO BRACKET
220
NUT STRAP TO SUPPORT
220
NUT , Replaced By: N913004008001
220
NUT , Replaced By: N910113010000
220
NUT SUPPORT TO SIDE MEMBER
220
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
230
CLAMP , Replaced By: A6739950001
230
CLAMP DELIVERY AND SUCTION LINES TO STEERING
240
SCREW COVER PLATE TO COVER PLATE M 6 X 12
240
SCREW PUMP TO BRACKET
240
SCREW , Replaced By: N304017006018
240
SCREW , Replaced By: N304017006016
250
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
250
SCREW PLATE TO BRACKET, Replaced By: N007985006590
250
SCREW , Replaced By: N000000001146
250
SCREW PLATE TO BRACKET, Replaced By: N000000001481
250
SCREW CLAMP MOUNTING M 6X16
250
SCREW CLAMP TO BRACKET M 6X14
250
SCREW CLAMP TO BRACKET
250
SCREW PLATE TO BRACKET
260
WASHER COMPRESSED AIR LINE TO BRACKET
260
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
270
NUT , Replaced By: N913004006001
270
NUT PUMP TO BRACKET
280
SPACER TUBE REFRIGERANT LINE TO CAB
290
BRACKET AT SIDE MEMBER,K 213085
290
BRACKET APPARATUS SUPPORT TO FRAME
300
BRACKET AT SIDE MEMBER
310
BRACKET AT SIDE MEMBER
320
SCREW BRACKET TO SIDE MEMBER M 12X40
320
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
320
SCREW BRACKET TO CAB CONSOLE,K 035197
320
SCREW , Replaced By: N308676012012
330
WASHER BRACKET TO SIDE MEMBER
340
NUT SUPPORT TO SIDE MEMBER
340
NUT , Replaced By: N910113014001
340
NUT BRACKET TO SIDE MEMBER
350
BRACKET TEST CONNECTION
520
BRACKET COMPRESSED AIR LINE TO APPARATUS SUPPORT
530
BRACKET COMPRESSED AIR LINE TO APPARATUS SUPPORT
620
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE
630
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
630
SCREW , Replaced By: N304017008016
640
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
ELBOW FITTING HOSE WIDTH, 4 MM,TO M 22
999
PRESSURE REGULATORWABCO
999
RESERVOIR ,5 563826
999
GROMMET FOR PASSAGE OF LINE
999
CONSOLE BATTERY/APPARATUS SUPPORT,FRONT
999
BRACKET
999
BRACKET AIR RESERVOIR
999
BATTERY SUPPORT APPARATUS
999
BRACKET AIR RESERVOIR
999
BRACKET AIR RESERVOIR
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
999
BRACKET TEST CONNECTION
