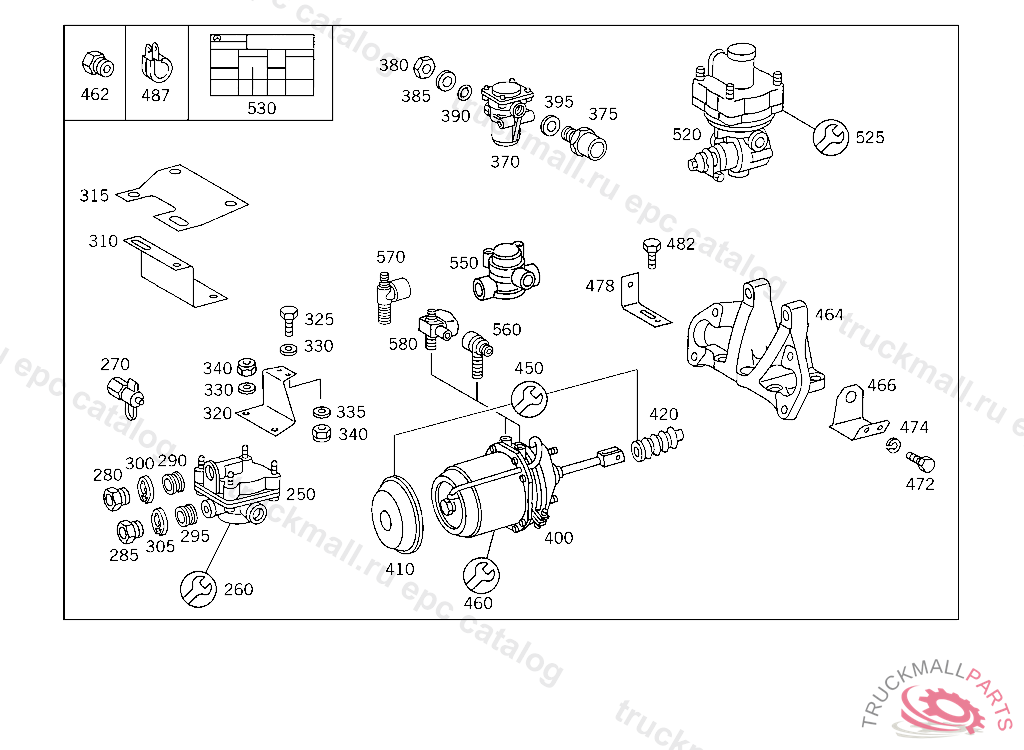

Поз.
Артикул
Описание
250
VALVE FRONT AXLE II RELAY VALVE "BOSCH"
250
VALVE FRONT AXLE II RELAY VALVE "WABCO"
250
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
250
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
260
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
260
REPAIR KIT RELAY VALVE BOSCH
270
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
270
TEST CONNECTION
280
SCREW. UNION SCREW LINE CONNECTION
280
SCREW. UNION SCREW , Replaced By: A0009973734
285
SCREW. UNION SCREW LINE CONNECTION
290
LOCK RING LINE CONNECTION
290
SEAL RING , Replaced By: A0009940747
295
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
300
LOCK LINE CONNECTION
300
LOCK , Replaced By: A0009945448
305
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
310
BRACKET RELAY VALVE TO CROSS MEMBER
310
BRACKET RELAY VALVE TO CROSS MEMBER
315
BRACKET FRONT AXLE RELAY VALVE,5 765578
320
BRACKET FRONT AXLE II RELAY VALVE
325
SCREW BRACKET TO CROSS CONNECTION STRUT
325
SCREW CLAMP TO BRACKET,5 597426
325
SCREW , Replaced By: N910142008009
325
SCREW , Replaced By: N304017008034
330
WASHER , Replaced By: N000125008443
330
WASHER EXHAUST MUFFLER TO STRAP
335
WASHER BRACKET TO LEFT SIDE MEMBER
335
WASHER , Replaced By: N009021008213
340
NUT , Replaced By: N913004008001
340
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
340
NUT BRACKET TO BRACKET
370
VALVE (PRESSURE LIMIT VALVE)
375
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
380
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
385
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
390
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
395
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
400
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,K 180897
400
WHEEL BRAKE CYLINDER (TRISTOP CYLINDER) WABCO
400
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO 24/24
400
WHEEL BRAKE CYLINDER TRISTOP CYLINDER GRAU 24/24"
400
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO 20/24,5 963779
400
WHEEL BRAKE CYLINDER (TRISTOP CYLINDER) KNORR
400
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER) WABCO
400
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER) KNORR"20/24"
400
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER) KNORR
400
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO 20/24
410
DIAPHRAGMTO 007 420 42 18,KNORR
410
CUPTO 006 420 28 18,WABCO
410
DIAPHRAGMTO 007 420 68 18,69 18,70 18,WABCO
420
CUPWABCO
420
DIAPHRAGMWABCO, TO 010 420 70 18
450
REPAIR KIT , Replaced By: A0184203718
450
REPAIR KIT DIAPHRAGM PART WABCO
450
REPAIR KIT PRESSURE RATIO VALVE
450
WHEEL BRAKE CYLINDER DIAPHRAGM PART TO 010 420 70 18,WABCO
450
REPAIR KIT DIAPHRAGM PART TO 007 420 65 18, 012 420 00 18, WABCO
450
REPAIR KIT DIAPHRAGM PART WABCO
450
REPAIR KIT. BRAKE CYLINDER DIAPHRAGM PART TO 007 420 42 18, KNORR
460
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO,K 262627
460
REPAIR KIT SPRING LOAD ACCUMULATOR PART KNORR,K 262627
460
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO
462
ADAPTER FITTING LINE CONNECTION TO ENGINE
464
BEARING BRACKET COMBINATION CYLINDER
466
BRACKET AT BEARING BRACKET
466
BRACKET AT BEARING BRACKET
472
SCREW CENTRAL LOCK TO CAB M 10X16
474
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
478
BRACKET OIL LINE MOUNTING
478
BRACKET , Replaced By: A3464296040
482
SCREW , Replaced By: N304017008021
482
SCREW PIPE CLAMP
487
CLAMP BRAKE HOSE BRACKET
520
BRAKE PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
525
REPAIR KIT BRAKE POWER REGULATOR WABCO
530
GUIDE SIGN
530
GUIDE SIGN ,5 585846
530
GUIDE SIGN ,K 067136
530
GUIDE SIGN ,K 067135
530
GUIDE SIGN PLATE,IN GERMAN/ENGLISH/FRENCH, "AUTOMATIC LOAD PROPORTIONING DEVICE"
530
GUIDE SIGN PLATE,IN GERMAN/ENGLISH/FRENCH, "AUTOMATIC LOAD PROPORTIONING DEVICE",K 067135
530
GUIDE SIGN LOAD-DEPENDING BRAKE
530
GUIDE SIGN LOAD-DEPENDING BRAKE,5 592211
530
GUIDE SIGN
530
GUIDE SIGN LOAD-DEPENDING BRAKE
530
GUIDE SIGN
530
GUIDE SIGN PLATE,IN GERMAN/ENGLISH/FRENCH, "AUTOMATIC LOAD PROPORTIONING DEVICE",K 067136
530
GUIDE SIGN LOAD-DEPENDING BRAKE
530
GUIDE SIGN PLATE,IN GERMAN/ENGLISH/FRENCH, "AUTOMATIC LOAD PROPORTIONING DEVICE"
530
GUIDE SIGN LOAD-DEPENDING BRAKE,5 592211
530
GUIDE SIGN
550
VALVE (REDUCTION VALVE)
560
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
560
FITTING RIGHT TRISTOP CYLINDER, REAR AXLE I, CONNECTION: "11"
570
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
580
T-FITTING PRESSURE RATIO VALVE,CONNECTION: "10",8 004623
580
T-FITTING REAR AXLE II TRISTOP CYLINDER, CONNECTIONS: "11,12,22"
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
NUT EXHAUST PIPE TO SIDE MEMBER
999
NUT STRAP TO SUPPORT
999
CONNECTOR HOSE WIDTH, 6 MM, TO M22
999
NUT BRACKET TO BEARING BRACKET
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
SEAL RING , Replaced By: A0009940747
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
LOCK , Replaced By: A0009945448
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
999
SCREW COVERING TO SUPPORT
999
SCREW , Replaced By: N910142008001
999
SCREW , Replaced By: N910142008009
999
ELBOW FITTING , Replaced By: A0049905371
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
999
SCREW LINE MOUNTING M 10X20
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW BRACKET TO REAR CROSS MEMBER
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313606
999
SCREW EXHAUST PIPE TO BRACKET
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
SCREW BRACKET TO TRANSMISSION
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,5 963779 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BASE AIR RESERVOIR
999
ANGLE LINE MOUNTING
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: A3609902340
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
BRACKET AIR RESERVOIR
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
STRAP AIR RESERVOIR TO BRACKET
999
BRACKET
999
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
HOLLOW SCREW AIR RESERVOIR
999
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21", 3XM 22X1.5/1XM 16X1.5
999
BRACKET PRESSURE RATIO VALVE,5 448631
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125015019
999
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRACKET TO CAB MOUNTING CONSOLE
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
NUT STRAP TO BRACKET
999
NUT BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO BRACKET
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
999
NUT BRACKET TO SIDE MEMBER
