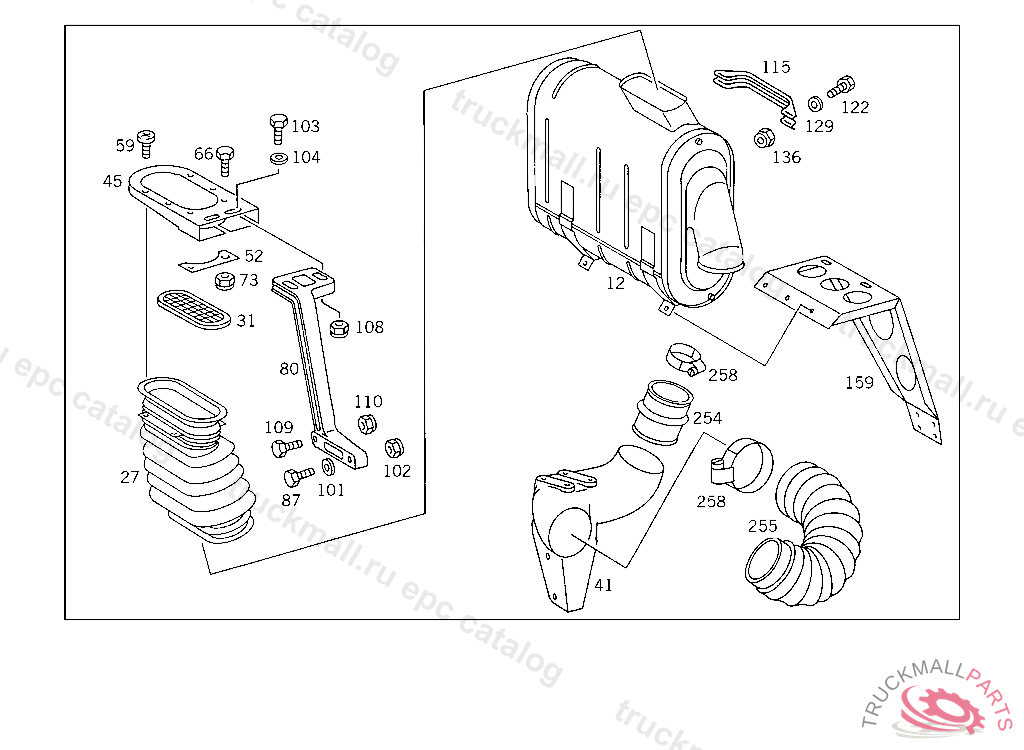

Поз.
Артикул
Описание
12
AIR CLEANER"MANN + HUMMEL"
12
AIR CLEANER"MANN & HUMMEL"
12
AIR CLEANER"MANN & HUMMEL"
27
BOOT FROM AIR CLEANER TO INTAKE PIPE
31
STRAINER BOOT
41
CONSOLE CAB SUSPENSION,REAR RIGHT
41
CONSOLE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6208910031
41
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
41
CONSOLE ADDITIONAL WORK ON FRAME
45
BRACKET BOOT
45
BRACKET , Replaced By: A6575280040
52
BRACKET BOOT
59
SCREW BOOT TO BRACKET
66
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
66
SCREW , Replaced By: N304017008016
73
NUT , Replaced By: N913004008001
73
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
SUPPORT AIR INTAKE PIPE
80
SUPPORT AIR INTAKE PIPE
80
SUPPORT AIR INTAKE PIPE
87
SCREW BRACKET TO SUPPORT
87
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
101
WASHER RADIATOR TO RUBBER MOUNTING
101
WASHER , Replaced By: N000125010532
102
NUT , Replaced By: N910113010000
102
NUT STRAP TO BRACKET
103
SCREW
103
SCREW , Replaced By: N304017010051
104
WASHER , Replaced By: N007349010007
104
WASHER STRUT TO CROSS MEMBER
108
NUT STRAP TO BRACKET
108
NUT , Replaced By: N910113010000
109
SCREW END PIECE TO EXHAUST PIPE M 10X25
109
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
110
NUT STRAP TO BRACKET
110
NUT , Replaced By: N910113010000
115
CLAMP BOOT TO AIR DUCT AND TO AIR CLEANER
122
SCREW , Replaced By: N304017008027
122
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
129
WASHER , Replaced By: N000125008443
129
WASHER EXHAUST MUFFLER TO STRAP
136
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
136
NUT , Replaced By: N913004008001
159
SUPPORT AIR CLEANER
159
SUPPORT AIR CLEANER
159
SUPPORT AIR CLEANER
254
HOSE FROM AIR CLEANER TO CAB CONSOLE
255
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
255
HOSE FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
255
HOSE FROM AIR CLEANER TO INTAKE PIPE
255
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
255
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
255
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION,K 056772
255
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
255
HOSE AIR INTAKE
258
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE
258
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE, Replaced By: N000000005894
258
CLAMP , Replaced By: N000000000678
258
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
258
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
258
CLAMP AIR INTAKE
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
ANGLE
999
ANGLE AIR INTAKE PIPE TO SUPPORT
999
MOUNTING BOW BOOT
999
SUPPORT , Replaced By: A6575200230
999
SHIM SUPPORT TO SIDE MEMBER
999
BUFFER ,5 350513
999
ANGLE AIR INTAKE PIPE TO SUPPORT
999
CONSOLE CAB SUSPENSION,REAR
999
SCREW EXHAUST PIPE TO SIDE MEMBER
