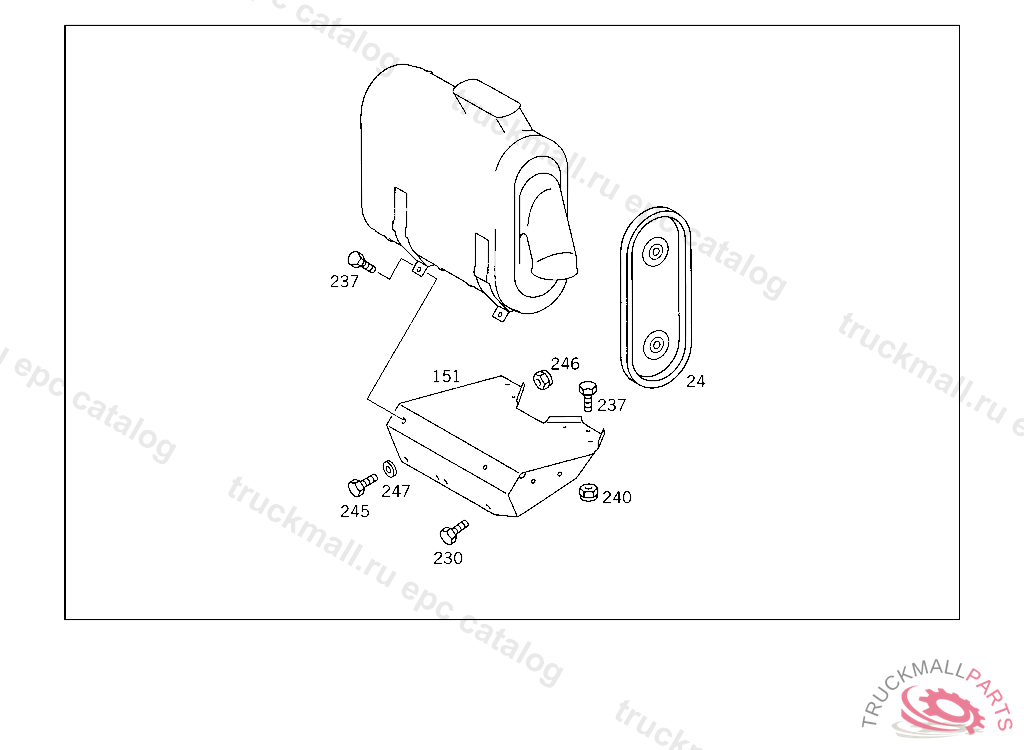

Поз.
Артикул
Описание
24
FILTER BOWL
151
SUPPORT AIR CLEANER
230
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
230
SCREW , Replaced By: N304017008027
237
SCREW , Replaced By: N304017010002
237
SCREW SUPPORT TO CROSS MEMBER M 10X28
237
SCREW BRACKET TO SIDE MEMBER
237
SCREW BRACKET TO SIDE MEMBER
240
NUT , Replaced By: N910113010000
240
NUT STRAP TO BRACKET
245
SCREW BRACKET TO CROSS CONNECTION STRUT
245
SCREW , Replaced By: N304017008018
245
SCREW , Replaced By: N304017008027
245
SCREW , Replaced By: N304017008034
245
SCREW SUPPORT TO FENDER
245
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
246
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
246
NUT , Replaced By: N913004008001
247
WASHER VALVE TO CROSS MEMBER,5 411349
999
SCREW EXHAUST PIPE TO SIDE MEMBER
999
CONSOLE CAB SUSPENSION,REAR
999
ANGLE AIR INTAKE PIPE TO SUPPORT
999
BUFFER ,5 350513
999
SHIM SUPPORT TO SIDE MEMBER
999
SUPPORT , Replaced By: A6575200230
999
MOUNTING BOW BOOT
999
ANGLE AIR INTAKE PIPE TO SUPPORT
999
ANGLE
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
