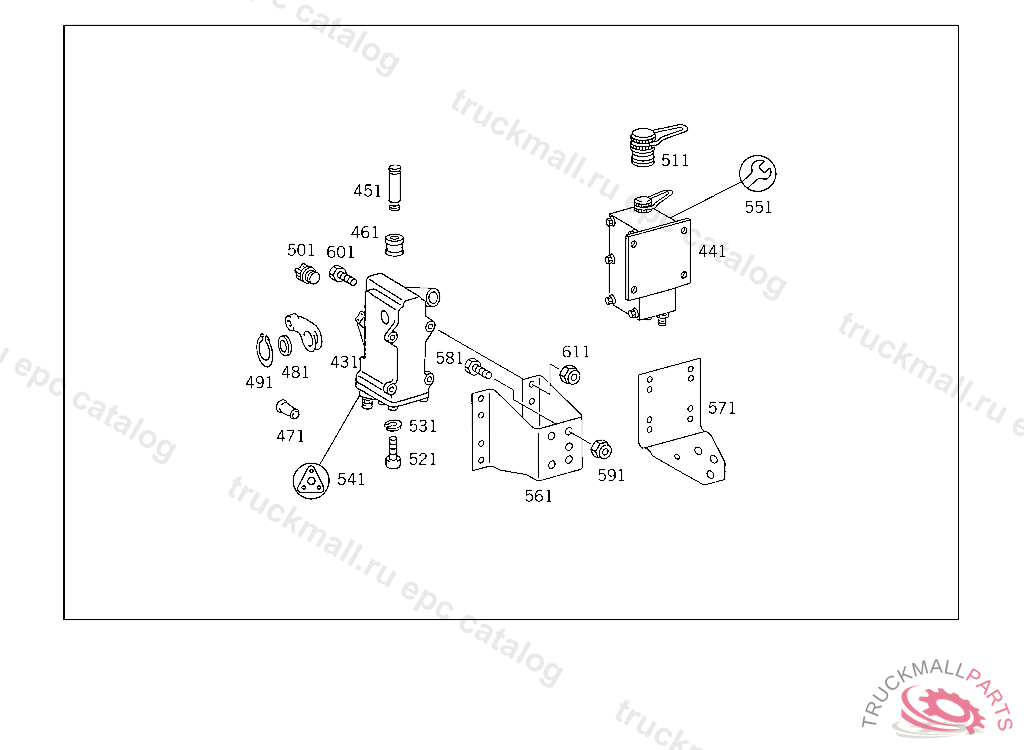

Поз.
Артикул
Описание
431
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
441
PUMP (HAND PUMP) WEBER
441
PUMP (HAND PUMP) POWER PACKER
451
PISTONTO 000 553 89 01
461
VALVETO 000 553 89 01
471
FILTER
481
FITTED WASHER
491
LOCK RING
501
SCREW
511
SCREWTO 000 553 65 01,000 553 69 01,
521
SCREW
521
SCREW , Replaced By: N000000000190
531
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
541
GASKET KIT HAND PUMP
551
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
561
BRACKET HAND PUMP
571
BRACKET HAND PUMP
581
SCREW , Replaced By: N308676014020
581
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
581
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
591
NUT BRACKET TO SIDE MEMBER
591
NUT , Replaced By: N910113014001
601
SCREW , Replaced By: N304017010002
601
SCREW BRACKET TO SIDE MEMBER
601
SCREW REAR EXHAUST PIPE TO MUFFLER
611
NUT STRAP TO BRACKET
611
NUT , Replaced By: N910113010000
999
PUMP , Replaced By: A0005537901, +001A0015534205
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACK
999
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
999
SCREW EXHAUST PIPE TO BRACKET
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
BRACKET LEFT
999
BRACKET RIGHT
999
PLATE HAND PUMP
999
MOUNTING CAB SUSPENSION,REAR
999
SPACER TUBE SHOCK ABSORBER TO RAIL
999
SPACER TUBE MOUNTING TO CONSOLE
999
CONSOLE CAB SUSPENSION,REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
999
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
999
MOUNTING RIGHT VIBRATION ABSORBER
999
CONSOLE CAB SUSPENSION,REAR
999
CONSOLE ADDITIONAL WORK ON FRAME
999
MOUNTING , Replaced By: A3878910072
999
CONSOLE CAB SUSPENSION,5 742148
999
MOUNTING , Replaced By: A3878910072
999
MOUNTING CAB SUSPENSION,REAR
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
999
BRACKET , Replaced By: A6225500040
999
BRACKET FENDER TO BRACKET
999
BRACKET HAND PUMP
999
LOCKING MECHANISM CAB, RIGHT
999
TOOTHED SEGMENT RIGHT,5 350513
999
MOUNTING , Replaced By: A6258900303, +001N000960018033
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
BRACKET HAND PUMP
999
CLAMP CAB SUSPENSION
999
LOCKING MECHANISM CAB, RIGHT,5 719572
999
TOOTHED SEGMENT
999
COUPLING
999
CONSOLE CAB SUSPENSION,REAR LEFT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CLAMP CAB SUSPENSION
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
999
CONSOLE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6208910031
