Поз.
Артикул
Описание

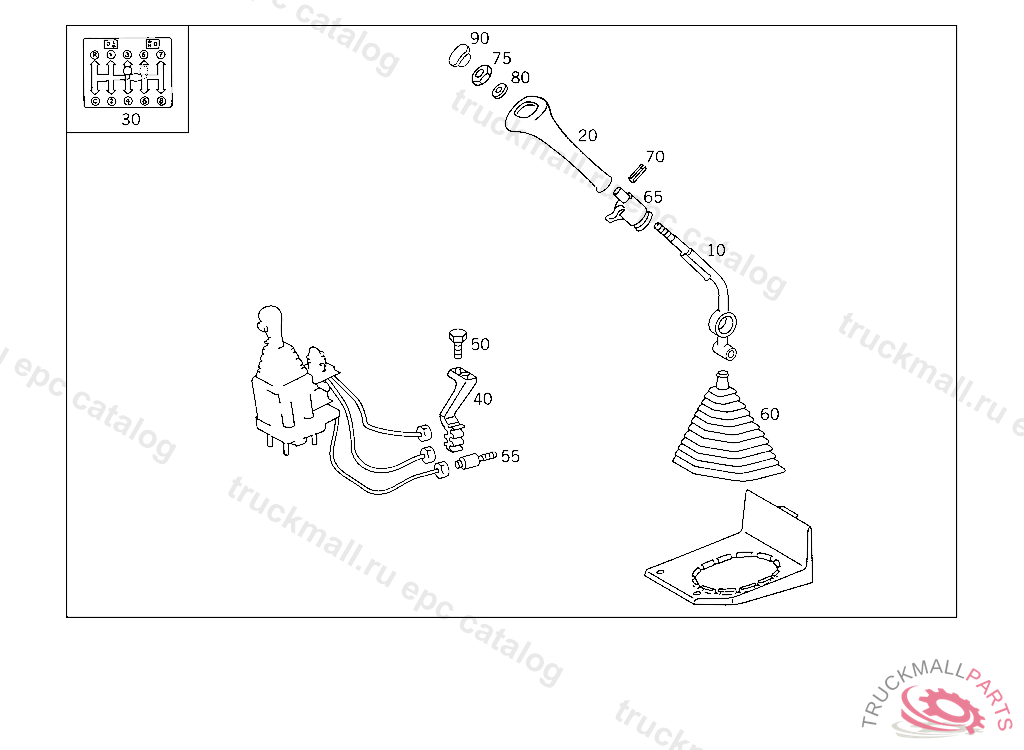

10
SHIFT LEVER
10
SHIFT LEVER ,K 131522
20
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
20
HANDLE (SHIFT LEVER HANDLE)
30
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
30
GUMMED LABEL , Replaced By: A9415842238
30
GUMMED LABEL EIGHT-SPEED,ASHTRAY
40
BRACKET LINE MOUNTING
50
SCREW COVER PLATE TO COVER PLATE M 6 X 12
50
SCREW , Replaced By: N304017006018
55
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
60
BOOT SHIFT LEVER
60
BOOT SHIFT LEVER
65
VALVE SHIFT LEVER HERION
65
VALVE GEARSHIFT LEVER LOWER PART WABCO
70
CLAMPING SLEEVE (SHIFT LEVER VALVE)
75
NUT , Replaced By: N308673010000
75
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
75
NUT FROM PROPELLER SHAFT TO FRONT AXLE
80
WASHER RADIATOR TO RUBBER MOUNTING
80
WASHER , Replaced By: N000125010532
90
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
GUMMED LABEL , Replaced By: A9415842238
999
SHIFT LEVER
999
CONNECTOR
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
CONNECTOR DISTRIBUTOR TO CAB
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BRACKET , Replaced By: A6205240340
999
BRACKET LINE MOUNTING
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
CONNECTOR , Replaced By: A0029905378
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
