Поз.
Артикул
Описание

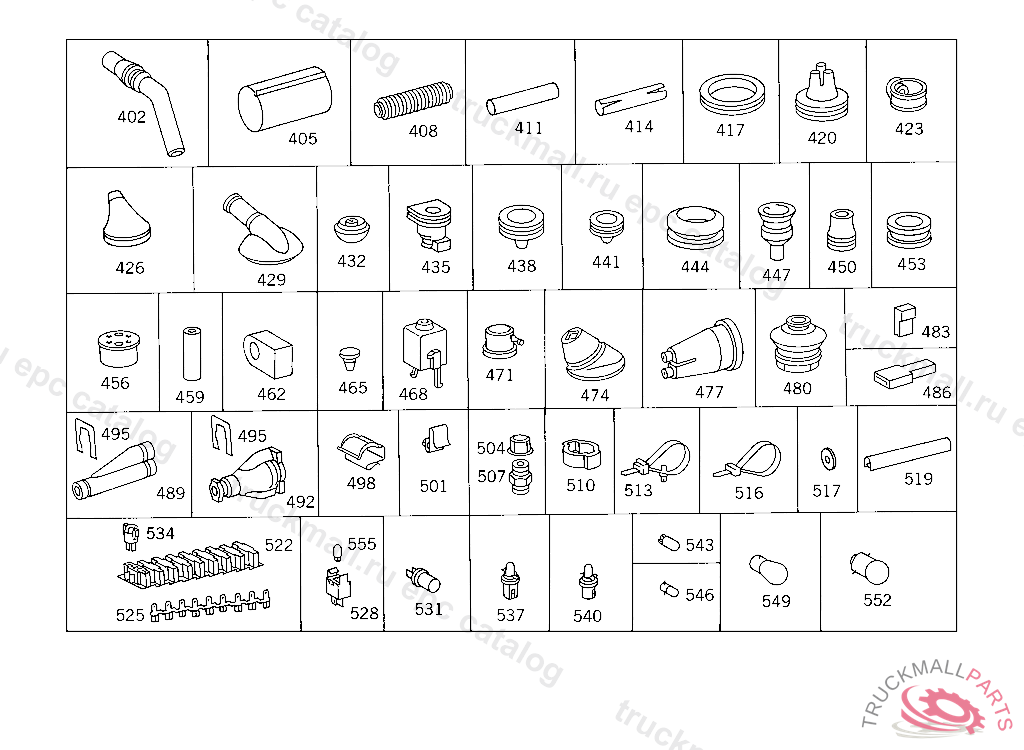

402
HOSE DOOR,HEATED OUTSIDE REARVIEW MIRROR, WINDOW REGULATOR MOTOR & ENTRANCE LAMP
405
INSULATING HOSE FOR CABLE HARNESS DIA.: 8-10 MM, ORDER BY THE METER
405
INSULATING HOSE FOR CABLE HARNESS DIA.: 30-32 MM, ORDER BY THE METER
405
INSULATING HOSE WITH OVERLAP, FOR CABLE HARNESS DIA.: 30-32 MM, ORDER BY THE METER
408
INSULATING HOSE FLEXIBLE, FOR CABLE HARNESS DIA.: 8.5 MM
408
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 23 MM, ORDER BY THE METER
408
INSULATING HOSE FLEXIBLE, FOR CABLE HARNESS DIA.: 7.5 MM, ORDER BY THE METER
408
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 17 MM, ORDER BY THE METER
408
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 26 MM
408
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 12 MM, ORDER BY THE METER
408
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
408
INSULATING HOSE , Replaced By: A0015460030
408
CORRUGATED HOSE , ORDER BY THE METER, Replaced By: A0005461630
408
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
411
INSULATING HOSE FOR CABLE HARNESS DIA.: 26 MM, ORDER BY THE METER
411
INSULATING HOSE FOR CABLE HARNESS DIA.: 24 MM, ORDER BY THE METER
411
INSULATING HOSE FOR CABLE HARNESS DIA.: 28 MM, ORDER BY THE METER
414
INSULATING HOSE BATTERY CABLE
417
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
420
GROMMET , Replaced By: A0089976381
420
GROMMET
423
GROMMET OUTSIDE REARVIEW MIRROR ELECTRIC CABLE TO BRACKET
426
GROMMET OUTSIDE REARVIEW MIRROR ELECTRIC CABLE TO BRACKET
429
GROMMET HEADLAMP
432
GROMMET FOGLAMP
435
GROMMET
438
GROMMET HEATER BRANCH-OFF
441
GROMMET BLINKER LAMP BRANCH-OFF
441
GROMMET ENGINE COMPARTMENT LAMP
444
GROMMET LINE PASSAGE AT SIDE MEMBER
444
GROMMET I.D., / O.D., 46/58
444
GROMMET OIL DELIVERY LINE THRU FENDER SUPPORT
444
GROMMET LINE PASSAGE AT SIDE MEMBER
444
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
444
GROMMET BATTERY CASE
447
GROMMET SIDE MARKER LAMP
450
GROMMET AT TAIL LAMP SHELL
453
GROMMET ELECTRIC CABLE THRU ROOF RAIL
453
GROMMET FRAME MOUNTED CABLE HARNESS, THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY AND CAN BE MADE AVAILABLE AS A SPARE ATTENTION: WHEN PLACING ORDERS, PLEASE QUOTE VEHICLE IDENT NO. ONLY IF FRAME MOUNTED CABLE HARNESS IS REQUIRED AS AN ASSEMBLY
453
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
456
GROMMET BRANCH-OFF TO BATTERY CUT-OFF
456
GROMMET BATTERY CUT-OUT
459
GROMMET1.75 MM
459
GROMMET LINE MOUNTING 10.0 MM
459
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
459
GROMMET3.0 MM
459
GROMMET5.0 MM
459
GROMMET4.0 MM
462
GROMMET DESIGNATION "R"
462
GROMMET DESIGNATION "L"
462
GROMMET DESIGNATION "2"
462
GROMMET DESIGNATION "U"
462
GROMMET DESIGNATION "A"
462
GROMMET DESIGNATION "1"
465
RUBBER BUFFER
468
BOOT CHASSIS/CAB PLUG CONNECTION
471
CAP PRESSURE SWITCH
474
BOOT
474
BOOT , Replaced By: A6555450445
477
BOOT EMERGENCY "OFF" SWITCH
480
CAP EMERGENCY "OFF" SWITCH TO BATTERY SUPPORT
483
BOOT PIN BUSHING
483
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
486
BOOT PIN BUSHING
489
GROMMET23/17/8.5
489
GROMMET12/12/12
489
GROMMET12/12/8.5
489
GROMMET23/17/17
489
GROMMET12/8.5/8.5
489
GROMMET17/12/8.5
489
GROMMET17/17/8.5
489
GROMMET17/17/12
489
GROMMET8.5/8.5/8.5
489
GROMMET23/23/8.5
489
GROMMET23/23/12
489
GROMMET17/12/12
492
GROMMET23/17/8.5/8.5
492
GROMMET12/8.5/8.5/8.5
492
GROMMET23/23/8.5/8.5
492
GROMMET17/12/8.5/8.5
492
GROMMET12/12/8.5/8.5
492
GROMMET17/17/8.5/8.5
492
GROMMET17/12/12/8.5
492
GROMMET17/17/12/12
495
LOCK INSULATING HOSE
495
LOCK INSULATING HOSE 23 MM
495
LOCK INSULATING HOSE 12 MM
495
LOCK
498
CLIP CABLE HARNESS TO ROOF RAIL
498
CLIP13 MM
498
CLIP13 MM, Replaced By: A0129884678
501
NUT RETAINER APPARATUS PLATE TO CAB
504
NUT NUMBER BOX
507
FITTING NUMBER BOX
510
LOOM TIE
513
LOOM TIE , Replaced By: A1149970590
513
LOOM TIE
516
LOOM TIE LINE MOUNTING 280 MM
516
LOOM TIE LINE MOUNTING
516
LOOM TIE187 MM
516
LOOM TIE , Replaced By: A0019978390
517
WASHER , Replaced By: A3609902340
517
WASHER BRACKET TO LEFT SIDE MEMBER
519
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
519
EDGE GUARD SECTION PROTECTION AGAINST SCORING, ORDER BY THE METER
522
LEDGE TELL-TALE LAMP
525
CONTACT RAIL LEFT, TO BE ADAPTED DURING ASSEMBLY
525
CONTACT RAIL RIGHT, TO BE ADAPTED DURING ASSEMBLY
528
SOCKET
531
SOCKET
534
BULB TELL-TALE LAMP
537
BULB24 V
540
BULB GEAR AND DIAGNOSIS INDICATOR,K 171346
540
BULB GEAR AND DIAGNOSIS INDICATOR,K 171345
543
BULB HAZARD WARNING LIGHT SWITCH
546
BULB24V/3W
549
BULB , Replaced By: N072601024192
549
BULB , Replaced By: A0015445994
549
BULB , Replaced By: N072601024192
549
BULB TAIL LAMP 21 W
552
BULB , Replaced By: N072601024702
552
BULB , Replaced By: A0015445894
552
BULB , Replaced By: N072601024704
552
BULB WITH REINFORCED COILED FILAMENT 24 V/10 W
555
BULB , Replaced By: A0025441794
555
BULB24V/1W, Replaced By: N049846000001
555
MINIATURE LAMP. BULB24V/1W
999
PIN BUSHING HOUSING ,K 004869
