Поз.
Артикул
Описание

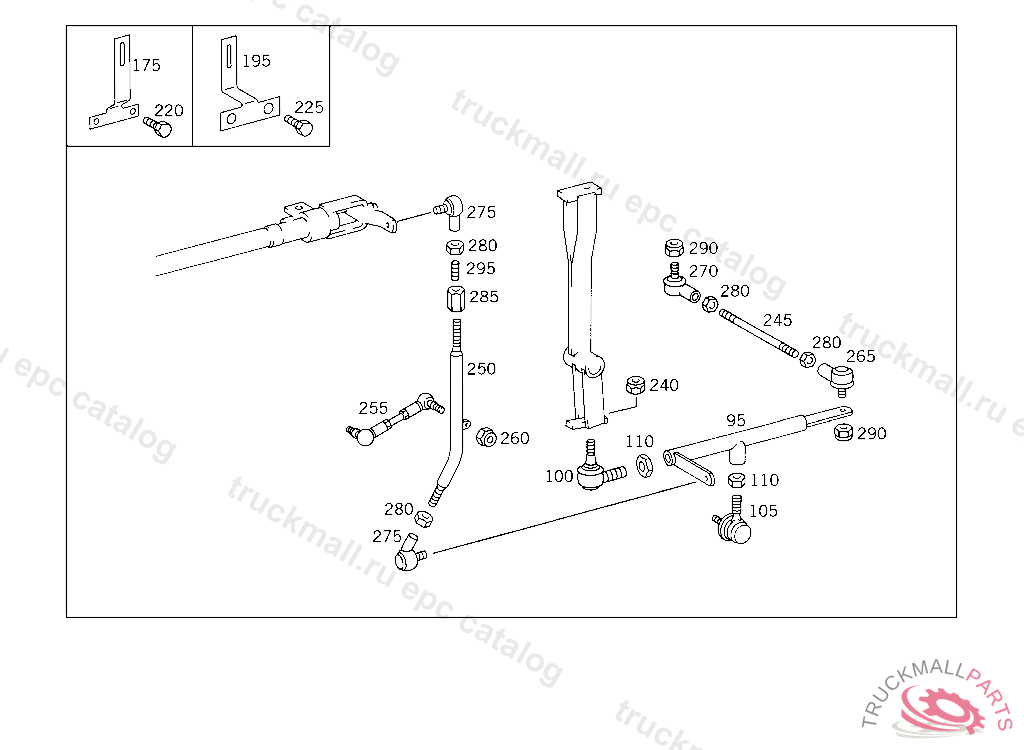

95
LEVER SHIFTING TRANSFER
95
LEVER SHIFTING TRANSFER,K 131522
100
ARTICULATION PIECE LEVER,K 131522
100
ARTICULATION PIECE , Replaced By: A0009967045
105
JOINT SHIFTING TRANSFER,K 131522
110
NUT BRACKET TO SIDE MEMBER,K 035196
110
NUT , Replaced By: N308673014001
175
BRACKET AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING,K 131522
195
BRACKET , Replaced By: A6534291840
195
BRACKET AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING,K 131522
220
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
225
SCREW BRACKET TO SUPPORT M 16X20
240
NUT STRAP TO BRACKET
240
NUT , Replaced By: N910113010000
245
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLYK 142858
250
PULL ROD SHIFTING TRANSFER,K 131522
255
PULL ROD SHIFTING TRANSFER,K 131522
255
PULL ROD SHIFTING TRANSFER,K 131522
260
NUT PUMP TO BRACKET
260
NUT , Replaced By: N913004006001
265
ARTICULATION PIECE , Replaced By: A0009965545
265
ARTICULATION PIECE R.H. THREAD, Replaced By: A0019963045
265
CONSTANT VELOCITY JOINT R.H. THREAD
270
CONSTANT VELOCITY JOINT L.H. THREAD
270
ARTICULATION PIECE , Replaced By: A0009965645
270
ARTICULATION PIECE L.H. THREAD, Replaced By: A0019963145
275
ARTICULATION PIECE R.H. THREAD,K 131522
280
NUT BRACKET TO FRAME
285
TURNBUCKLE ,K 131522
290
NUT L.H. THREAD
295
STUD ,K 131522
295
THREADED PIN , Replaced By: A6529900005
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR , Replaced By: A0029905378
999
VALVE GEARSHIFT LEVER LOWER PART WABCO
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
BRACKET LINE MOUNTING
999
BRACKET , Replaced By: A6205240340
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
CONNECTOR DISTRIBUTOR TO CAB
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
CONNECTOR
999
SHIFT LEVER
999
BRACKET LINE MOUNTING
999
GUMMED LABEL , Replaced By: A9415842238
