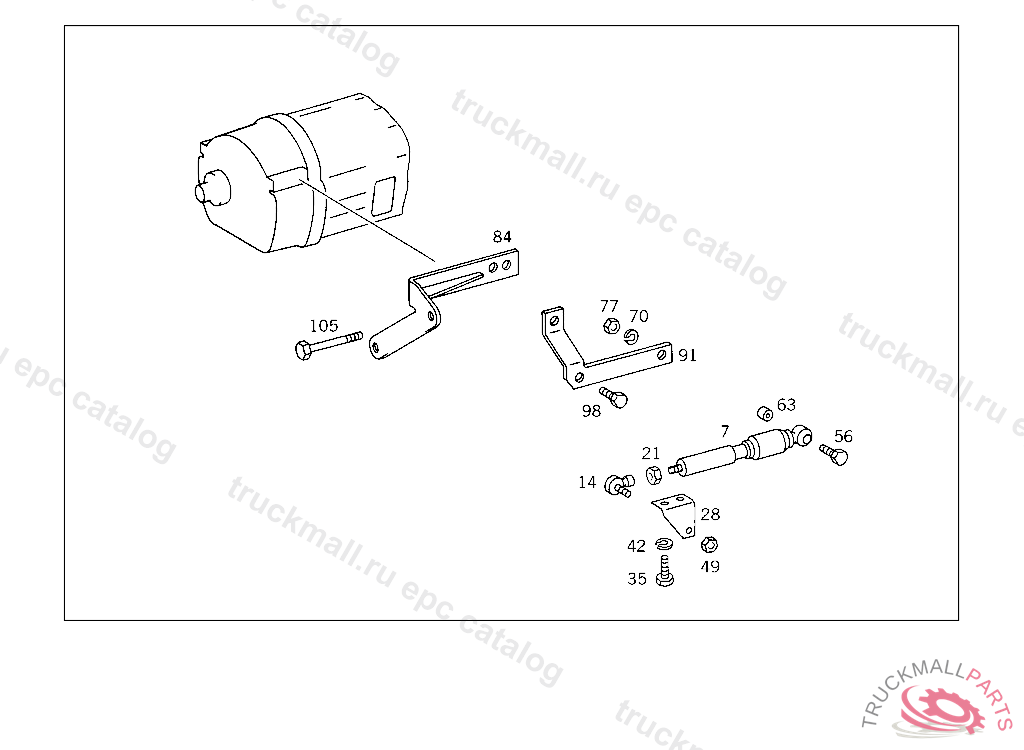

Поз.
Артикул
Описание
7
VIBRATION ABSORBER VIBRATION ABSORBER
7
VIBRATION ABSORBER
14
JOINT VIBRATION ABSORBER
21
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
28
LEVER TRANSMISSION GEARSHIFT
28
LEVER TRANSMISSION GEARSHIFT
35
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
42
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
49
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
56
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X60
56
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
56
COMBINATION BOLT , Replaced By: N304017010035
63
SPACER TUBE VIBRATION ABSORBER TO BRACKET
70
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
77
NUT BRACKET TO SUPPORT AND TO END PIECE
84
BRACKET VIBRATION ABSORBER TO TRANSMISSION
91
BRACKET VIBRATION ABSORBER TO TRANSMISSION
98
SCREW , Replaced By: N910105010011
98
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
105
SCREW BRACKET TO FRAME
105
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X65
999
SCREW ENGINE REAR SUPPORT TO FRAME M 10 X 25
999
WASHER BRACKET TO APPARATUS SUPPORT
