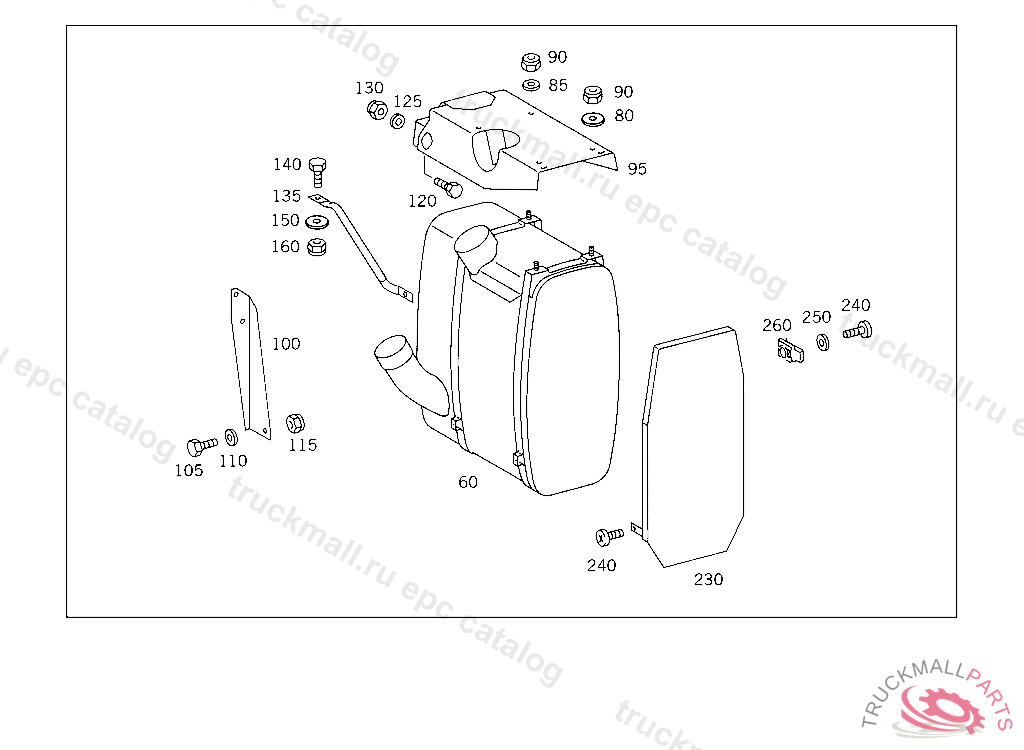

Поз.
Артикул
Описание
60
EXHAUST MUFFLER
60
EXHAUST MUFFLER
60
EXHAUST MUFFLER
60
EXHAUST MUFFLER
60
EXHAUST MUFFLER
80
WASHER LEAF SPRING TO STRUT
85
WASHER BRACKET TO SIDE MEMBER
90
NUT SUPPORT TO SIDE MEMBER
90
NUT STRAP TO SUPPORT
95
SUPPORT EXHAUST MUFFLER
95
SUPPORT EXHAUST MUFFLER
95
SUPPORT EXHAUST MUFFLER
95
SUPPORT EXHAUST MUFFLER
100
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
105
SCREW SUPPORT TO SIDE MEMBER M14X40
105
SCREW BRACKET TO FRAME M 8X35
110
WASHER , Replaced By: N000125008443
110
WASHER EXHAUST MUFFLER TO STRAP
115
NUT BRACKET TO SIDE MEMBER
115
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
115
NUT , Replaced By: N910113014001
115
NUT , Replaced By: N913004008001
120
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
120
SCREW , Replaced By: N308676014020
120
SCREW , Replaced By: N910105014010
120
SCREW SUPPORT TO SIDE MEMBER M14X40
120
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
125
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
125
WASHER , Replaced By: N000125015019
130
NUT , Replaced By: N910113014001
130
NUT BRACKET TO SIDE MEMBER
130
NUT BRACKET TO SIDE MEMBER
135
REINFORCEMENT EXHAUST MUFFLER TO CROSS MEMBER
135
STRUT EXHAUST MUFFLER TO SIDE MEMBER
135
STRUT EXHAUST MUFFLER TO CROSS MEMBER
140
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
140
SCREW , Replaced By: N910142008009
140
SCREW , Replaced By: N910142008001
140
SCREW CLAMP TO BRACKET,5 597426
140
SCREW BRACKET TO BRACKET
140
SCREW EXHAUST MUFFLER TO CROSS MEMBER
140
SCREW BRACKET TO SIDE MEMBER
150
WASHER BRACKET TO LEFT SIDE MEMBER
150
WASHER , Replaced By: N009021008213
160
NUT , Replaced By: N913004008001
160
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
160
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
230
PROTECTIVE PLATE (HEAT SHIELD)
240
SCREW BUSHING AND LEVER TO CAB
250
WASHER , Replaced By: N009021008213
250
WASHER , Replaced By: N000125008443
250
WASHER BRACKET TO LEFT SIDE MEMBER
250
WASHER EXHAUST MUFFLER TO STRAP
260
NUT RETAINER , Replaced By: A0019902891
260
SOCKET NUT. NUT RETAINER EXHAUST MUFFLER TO SUPPORT
999
BRACKET RIGHT EXHAUST PIPE
999
STRUT
999
BRACKET FRONT EXHAUST PIPE
999
COLLAR (SLIDING COLLAR)
999
BRACKET LEFT EXHAUST PIPE
999
PROTECTIVE PLATE FUEL TANK
999
SCREW MOUNTING TO CONSOLE
