O 371 RS,RSE, 0 400 RS,RSE
›
664.126
›
29 PEDAL ASSEMBLY
›

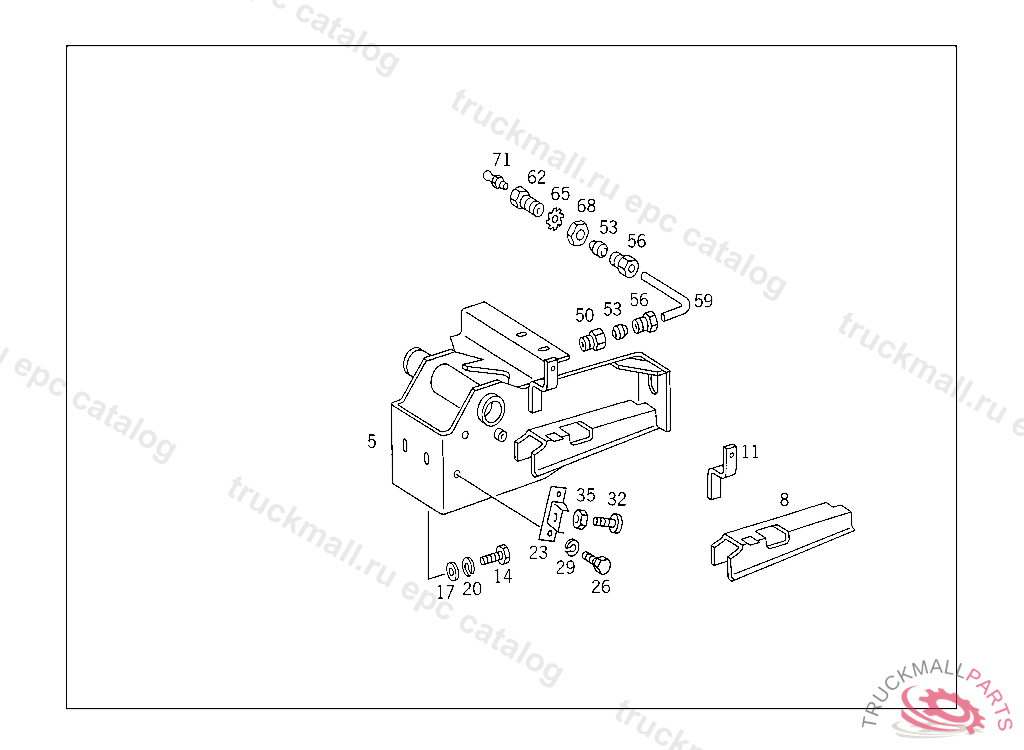

090 CLUTCH AND BRAKE PEDAL ASSEMBLY IL. 1
Mercedes N003862004001 - КОЛЬЦО ПРОСТАВОЧНОЕ
O 371 RS,RSE, 0 400 RS,RSE 664.126
29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY IL. 1
Поз.
Артикул
Описание
5
A6642907419
BEARING BRACKET BRAKE PEDAL AND CLUTCH PEDAL
5
A6642900119
BEARING BRACKET , Replaced By: A6642907419
8
A3642917540
BRACKET
11
A3642950040
BRACKET
14
N000933010294
SCREW BRACKET TO SIDE MEMBER
17
N000125010517
WASHER GROUND CABLE
20
N000127010202
LOCK WASHER , Replaced By: N912004010102
23
A3012901033
BRACKET AT PEDAL ASSEMBLY BEARING BRACKET
26
N000933008282
SCREW PLUG SOCKET TO FRAME
29
N912004008100
LOCK WASHER RAIL TO BATTERY SUPPORT
32
A3012910241
STOP CLUTCH PEDAL STOP
35
N000934008013
NUT
50
A0005730532
CONNECTOR TRAILER COUPLING,FRONTVOGEL
53
N003862004001
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
56
N003871004100
UNION SCREW RELEASE BEARING LUBRICATION
59
A3642950113
PIPE PEDAL ASSEMBLY LUBRICATION
62
N071429014110
BULKHEAD FITTING RELEASE BEARING LUBRICATION
65
N006797014150
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
68
N000936014010
NUT , Replaced By: N308675014000
71
N071412008300
GREASE NIPPLE
