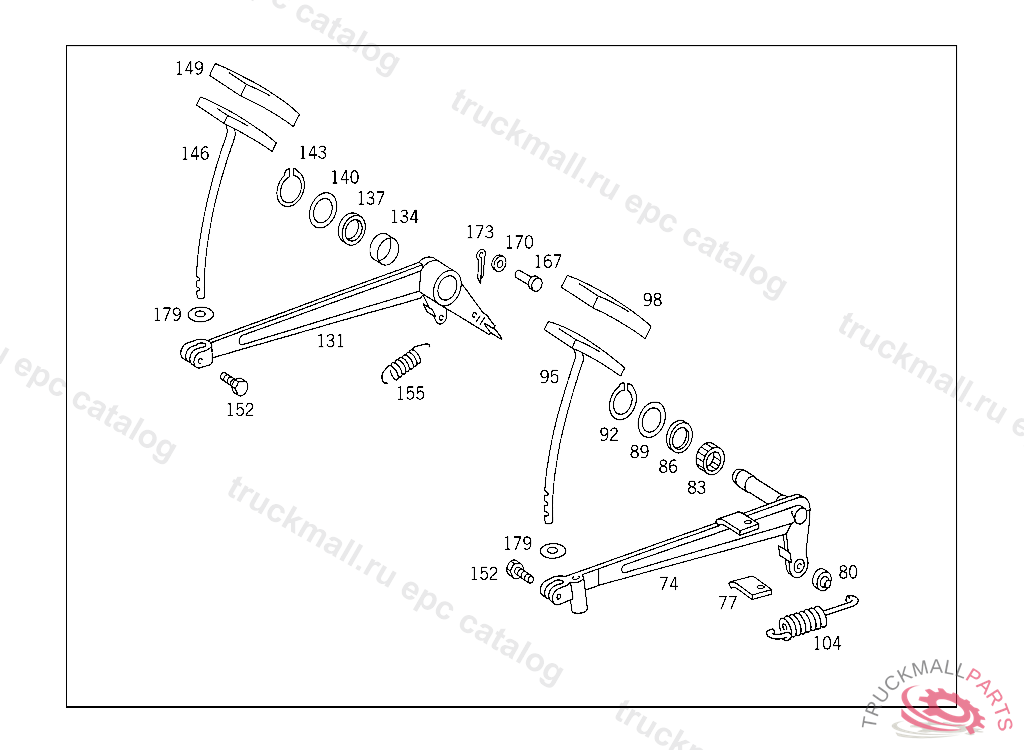

Поз.
Артикул
Описание
74
PEDAL (CLUTCH PEDAL)
77
BRACKET
80
JOINT BEARING , FROM IDENT NO. 000162 ALSO INSTALLED ON 000041,000047,000048,000105,000120
83
NEEDLE BEARING REAR DRIVE SHAFT
86
SEAL RING
89
WASHER CLUTCH PEDAL TO BEARING BRACKET
92
LOCK RING
95
PEDAL PLATE CLUTCH
98
PAD BRAKE PEDAL
104
SPRING CLUTCH PEDAL RESET,C 080038
104
SPRING , Replaced By: A3649937010
131
PEDAL BRAKE
134
BUSHING RELEASE SHAFT,TOP 35X39 MM
137
SEAL RING BRAKE PEDAL TO 301 290 02 18
140
WASHER CLUTCH PEDAL TO BEARING BRACKET
143
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
146
PEDAL PLATE BRAKE,213841
149
PAD BRAKE PEDAL
152
SCREW , Replaced By: N304017010040
155
SPRING BRAKE PEDAL RELEASE SPRING
167
PIN ROD TO BRAKE PEDAL
170
WASHER 10,5 DIN 433. WASHER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
173
COTTER PIN PISTON ROD TO BRAKE PEDAL
179
WASHER CLUTCH PEDAL AND BRAKE PEDAL
