Поз.
Артикул
Описание
5

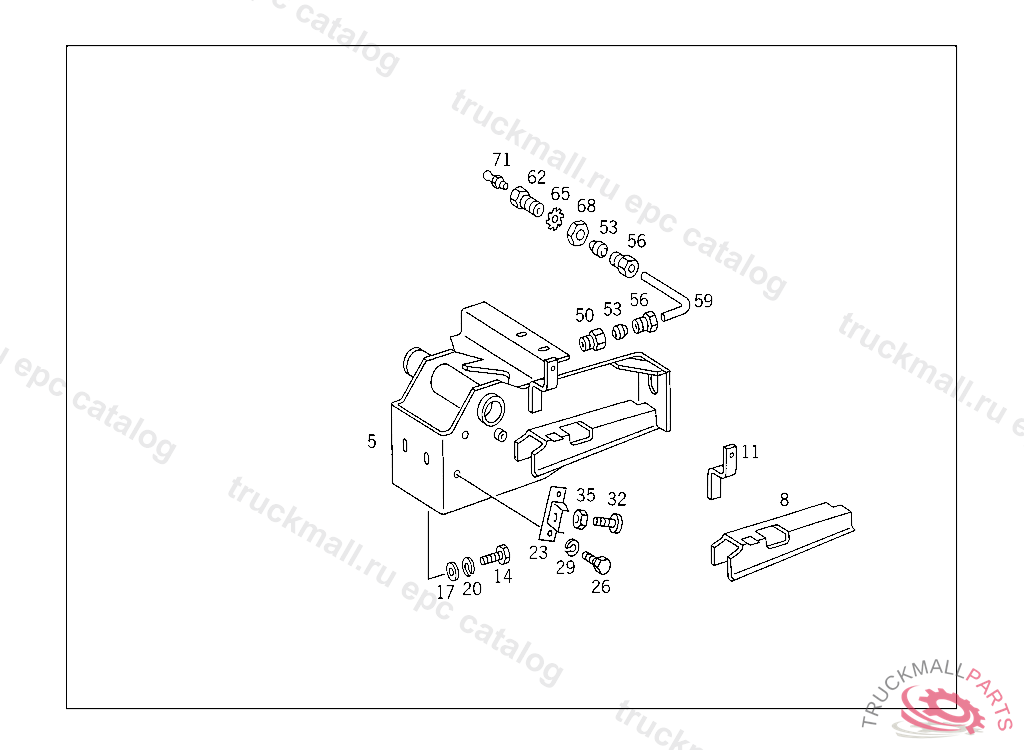

BEARING BRACKET BRAKE PEDAL AND CLUTCH PEDAL
5
BEARING BRACKET , Replaced By: A6642907419
8
BRACKET
11
BRACKET
14
SCREW ,D 091465
17
WASHER GROUND CABLE
20
LOCK WASHER FUSE
23
BRACKET AT PEDAL ASSEMBLY BEARING BRACKET
26
SCREW COVER TO SPRING SADDLE
29
LOCK WASHER RAIL TO BATTERY SUPPORT
32
STOP CLUTCH PEDAL STOP
35
NUT TIGHTENER PULLEY TO SUPPORT
50
CONNECTOR TRAILER COUPLING,FRONTVOGEL
53
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
56
UNION SCREW RELEASE COLLAR LUBRICATION
59
PIPE PEDAL ASSEMBLY LUBRICATION
62
BULKHEAD FITTING RELEASE BEARING LUBRICATION
65
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
68
NUT SHOCK ABSORBER TO LOWER BEARING BRACKET
71
GREASE NIPPLE
