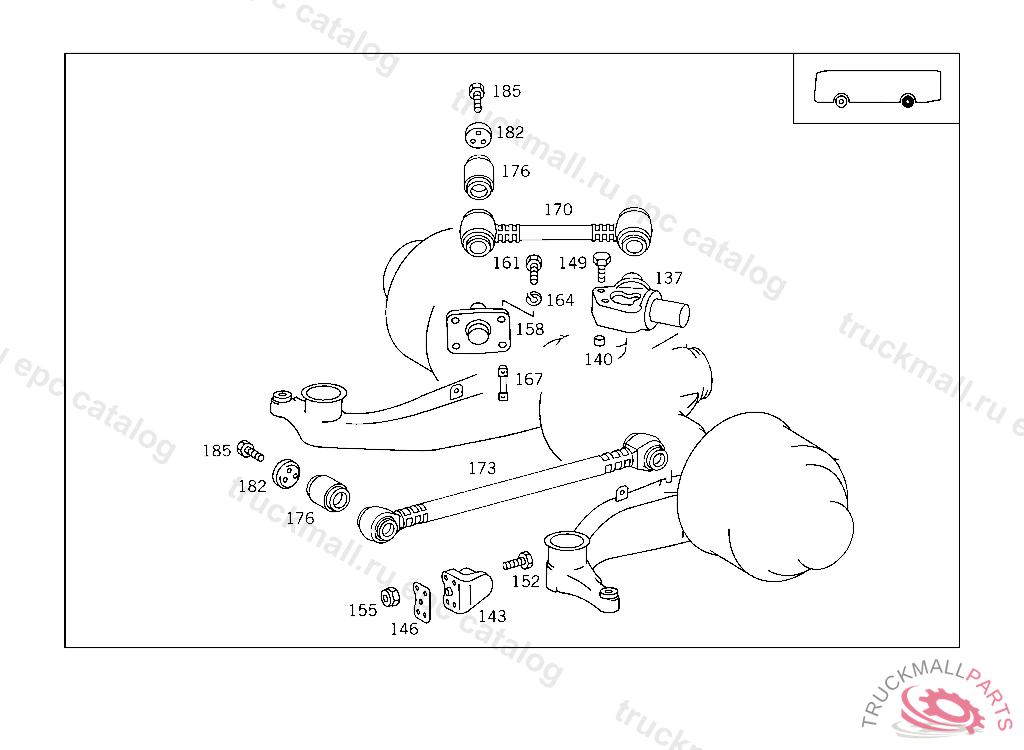

Поз.
Артикул
Описание
137
BEARING BODY UPPER CONTROL ARM,C 073141
140
BUSHING BEARING BODY TO REAR AXLE
143
BEARING BRACKET LONGITUDINAL CONTROL ARM,C 073141
146
SHIM AS REQUIRED 4.00 MM
146
SHIM AS REQUIRED 3.50 MM
146
SHIM AS REQUIRED 2.50 MM
146
SHIM AS REQUIRED 1.00 MM
149
SCREW CONTROL ARM TO REAR AXLE
149
SCREW BEARING BODY TO REAR AXLE
152
SCREW SHOCK ABSORBER TO RAIL
155
NUT TORSION BAR TO BEARING BRACKET,5 904661
158
PIN WISHBONE CONTROL ARM,C 073141
161
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
164
LOCK WASHERROCKINGER TYP 59 G140,59 G150
167
PLATE WITH THREADED HOLES DIAGONAL CONTROL ARM TO REAR AXLE AND TO FRAME
170
THRUST ARM REAR AXLE CONTROL ARM 724 MM
173
THRUST ARM LONGITUDINAL CONTROL ARM 585 MM
176
BUSHING , Replaced By: A0003300250
182
THRUST WASHER PIN TO STRUT,C 073141
185
SCREW STEERING SUPPORT TO FRAME M 14X50
