Поз.
Артикул
Описание
12

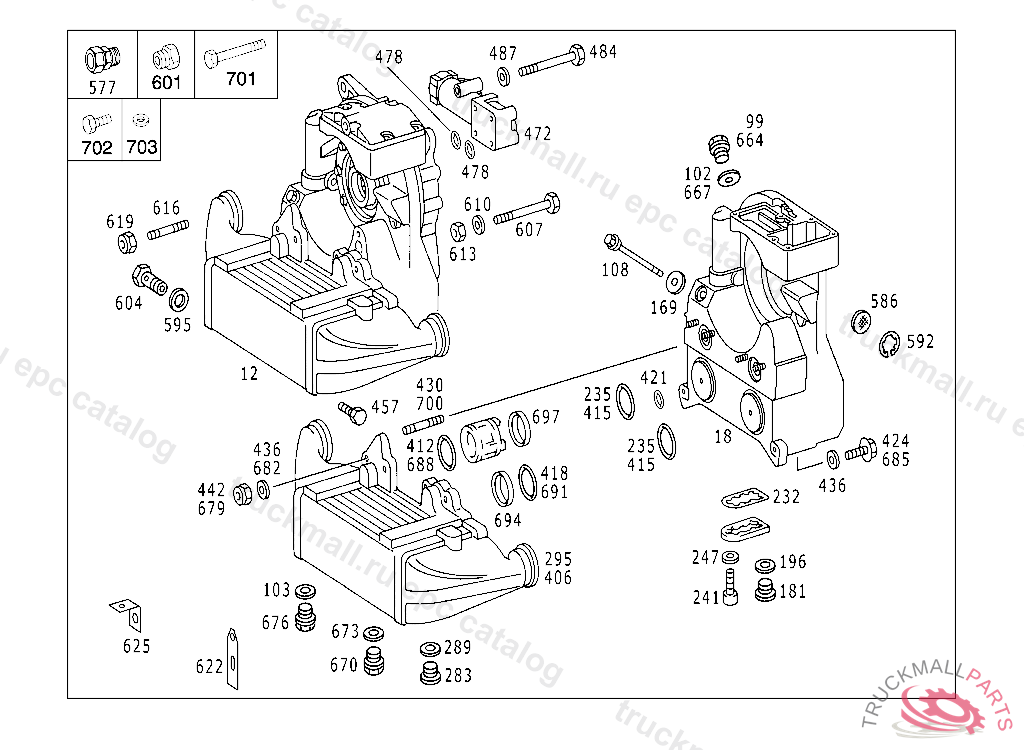

HYDRAULIC BRAKE RETARDER VOITH
12
HYDRAULIC BRAKE RETARDER "VOITH"
18
HYDRAULIC BRAKE
99
SCREW PLUG RETARDER HOUSING M12X1.5
102
SEAL RING
103
SEAL RING
108
SCREW (OIL LEVEL INDICATOR)
169
SEAL RING OIL DRAIN 30X36 MM
169
SEAL RING OIL DRAIN 30X36 MM
181
SCREW PLUG , Replaced By: N000908022011
181
SCREW PLUG , Replaced By: N000908022011
196
SEAL RING LOCKING VALVE 22X29 MM
196
SEAL RING LOCKING VALVE 22X29 MM
232
GASKET CASE COVER
232
GASKET CASE COVER
235
SEAL RING COVER
241
CYLINDRICAL HEAD SCREW. SCREW BALANCING PLATES TO FAN AND TO PULLEY 6X20 MM
241
CYLINDRICAL HEAD SCREW. SCREW BALANCING PLATES TO FAN AND TO PULLEY 6X20 MM
247
WASHER PLUG SOCKET TO BRACKET
247
WASHER PLUG SOCKET TO BRACKET
283
SCREW RADIATOR
289
SEAL RING
295
RADIATOR
295
RADIATOR , Replaced By: A0015019101
406
RADIATOR
412
SEAL RING FROM RETARDER TO HEAT EXCHANGER 45X4 MM
415
SEAL RING FROM RETARDER TO HEAT EXCHANGER 82X4 MM
418
SEAL RING RADIATOR 36X4 MM
421
SEAL RING FROM RETARDER TO HEAT EXCHANGER 8X2 MM
424
SCREW AIR DUCT TO CAB
430
STUD RADIATOR MOUNTING M8X45
436
WASHER TRAILER PLUG SOCKET TO BRACKET
442
NUT , Replaced By: N913004008001
457
SCREW PIPE M10X65
472
VALVE
478
SEAL RING VALVE 15X4 MM
484
SCREW , Replaced By: N304014008018
487
WASHER TRAILER PLUG SOCKET TO BRACKET
577
FITTING HYDRAULIC PUMP SUCTION PIPE
586
MUFFLER
592
LOCK
595
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
595
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
601
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
604
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
607
SCREW STRUT TO BUMPER M 12X1.5X95
610
WASHER SUPPORT TO FRAME,D 127794
613
NUT FUEL TANK TO SUPPORT
616
STUD BOLT RETARDER ATTACHMENT M 10X45
616
STUD BOLT COVER TO RETARDER HOUSING M 10X30
616
STUD BOLT RETARDER ATTACHMENT M 10X22
619
NUT RETARDER ATTACHMENT
619
NUT BRACKET TO RETARDER
622
BRACKET HIGH PRESSURE LINE
625
BRACKET
664
SCREW PLUG RETARDER HOUSING M12X1.5
667
SEAL RING
670
SCREW HEAT EXCHANGER
673
SEAL RING HEAT EXCHANGER
673
SEAL RING BRAKE CYLINDER STROKE INDICATOR
676
SCREW HEAT EXCHANGER
679
NUT , Replaced By: N913004008001
682
WASHER TRAILER PLUG SOCKET TO BRACKET
685
SCREW AIR DUCT TO CAB
688
SEAL RING FROM RETARDER TO HEAT EXCHANGER 45X4 MM
691
SEAL RING RADIATOR 36X4 MM
694
WASHER HEAT EXCHANGER
697
WASHER HEAT EXCHANGER
700
STUD
700
STUD
701
SCREWM12X165
702
SCREW
703
SEAL RING 2/2-WAY VALVE,CONNECTION: "20"
703
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
999
999
999
999
999
999
ELBOW FITTING
999
999
999
999
BRACKET PEDAL BEARING BRACKET
999
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
999
CLAMP FEED LINE TO THERMOSTAT
999
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 585 MM,C 069616
999
999
RUBBER MOUNTING , Replaced By: A3452407017
999
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 590 MM, APPLICABLE TO TRANSMISSION 718.630
999
HYDRAULIC CLUTCH
999
VALVE
999
SCREW
999
SCREW
999
RET ELECTRONICS
999
999
CONTROL UNIT
999
SPACER RING
999
SNAP RING
999
LOCKING CAP , Replaced By: A3845067233
999
SCREWM 16X16X20X45
999
999
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 511 MM, APPLICABLE TO TRANSMISSION 718.745
999
HOLLOW SHAFT
999
LINE
999
SCREW
999
999
999
LINE
999
999
999
999
SENDER UNIT
999
WASHER
999
999
LOCK
999
CLAMP LINE MOUNTING
999
SCREW
