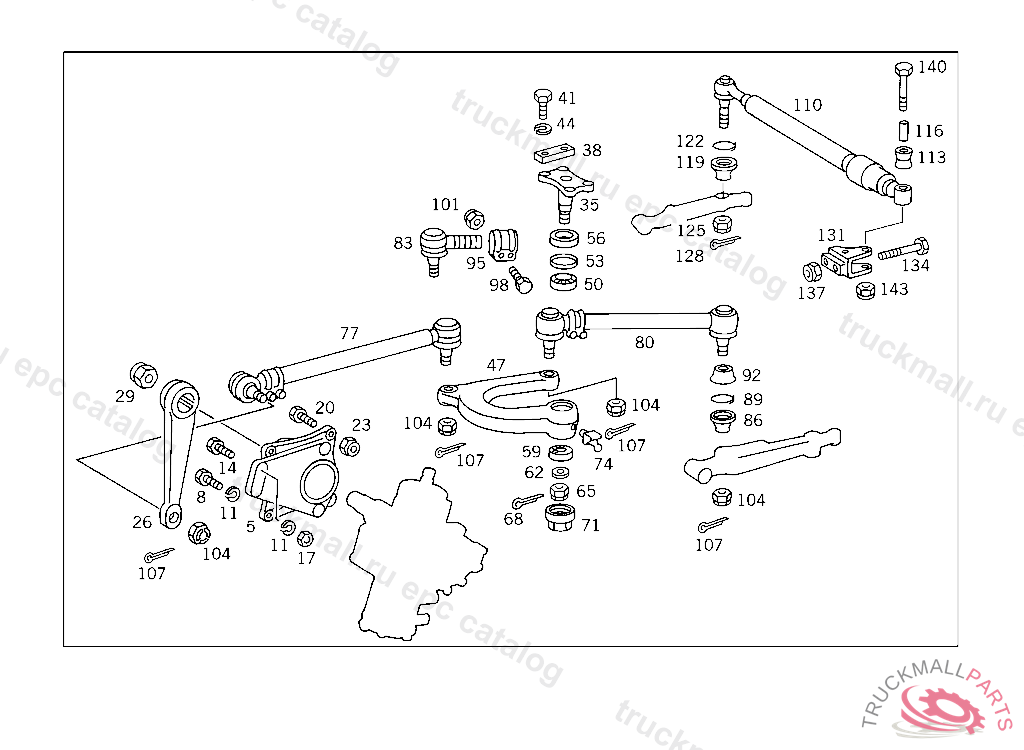

Поз.
Артикул
Описание
5
STEERING SUPPORT
8
SCREW BEARING BRACKET AND PLATE TO FRAME M 16X1.5X40
11
LOCK WASHERROCKINGER TYP 59 G140,59 G150
14
FITTED SCREW STEERING TO STEERING COLUMN BRACKET
17
NUT ,4 179001
20
SCREW BRACKET TO SIDE MEMBER
23
NUT , Replaced By: N910113014000
26
PITMAN ARM
29
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
35
TRUNNION BEARING STEERING INTERMEDIATE ARM
35
TRUNNION BEARING
38
SHIM PIVOT BEARING TO SUBSTRUCTURE
41
SCREW , Replaced By: N308676014012
44
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
47
STEERING INTERMEDIATE ARM
50
TAPERED ROLLER BEARING
50
TAPERED ROLLER BEARING FRONT
50
TAPERED ROLLER BEARING
53
SPACER WASHER INTERMEDIATE LEVER TO BEARING BRACKET
56
SEAL RING
59
TAPERED ROLLER BEARING
59
TAPERED ROLLER BEARING INTERMEDIATE LEVER TO BEARING BRACKET
59
TAPERED ROLLER BEARING
62
THRUST WASHER STEERING INTERMEDIATE ARM BEARING
65
NUT STEERING INTERMEDIATE ARM BEARING
68
COTTER PIN
71
CAP AT STEERING INTERMEDIATE ARM
74
GREASE NIPPLE
77
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER
77
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER
80
DRAG LINK FROM INTERMEDIATE LEVER TO STEERING ARM
80
DRAG LINK FROM INTERMEDIATE LEVER TO STEERING ARM
83
JOINT
86
DUST CAPTO 345 460 81 05,376 460 01 05
89
CLAMPING RING FIXED PART OF JOINT TO 345 460 86 05, USED WITH AIR BRAKE, 341.041,042,044 FROM CHASSIS A 059729 ALSO INSTALLED ON A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
89
CLAMPING RINGTO 345 460 86 05
92
SPACER RING SCREWED PART OF JOINT TO 345 460 86 05, USED WITH AIR BRAKE, 341.041,042,044 FROM CHASSIS A 059729 ALSO INSTALLED ON A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
95
CLAMPTO 364 460 72 05,364 460 73 05
98
SCREW CLAMP TO DRAG LINK TO 344 338 73 45
101
NUT BRACKET TO SIDE MEMBER,XB209706
104
NUT
107
COTTER PIN
110
SHOCK ABSORBER"MONROE"
110
SHOCK ABSORBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 373163-10-217767 / 373195-10-217917, Replaced By: A0004636432
110
SHOCK ABSORBER"COFAP", ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER, Replaced By: A6344600066
113
RUBBER RING
113
RUBBER RING TOP AND BOTTOM TO A 6883260200
113
RUBBER RINGTO 344 460 70 66
116
BUSHINGTO 344 460 70 66, NOT CARRIED AS A SPARE PART
116
BUSHING
116
BUSHINGTO 364 460 72 66,73 66,74 66
119
BOOTLEMFOERDER
122
CLAMPING RINGTO 364 460 71 66
122
CLAMPING RINGTO 364 460 71 66
125
NUT STEERING SHOCK ABSORBER TO STEERING ARM
128
COTTER PIN SHIFT LEVER TO CASE
131
BRACKET STEERING SHOCK ABSORBER
134
SCREW CROSS MEMBER TO CONSOLE M 12X1.5X90,D 132899D 154054
137
NUT SUPPORT TO SIDE MEMBER
140
SCREW ARTICULATED ROD TO LEVER
143
NUT BRACKET TO BATTERY CASE
