Mercedes A6702850076 - Диск

809 DT 670.199

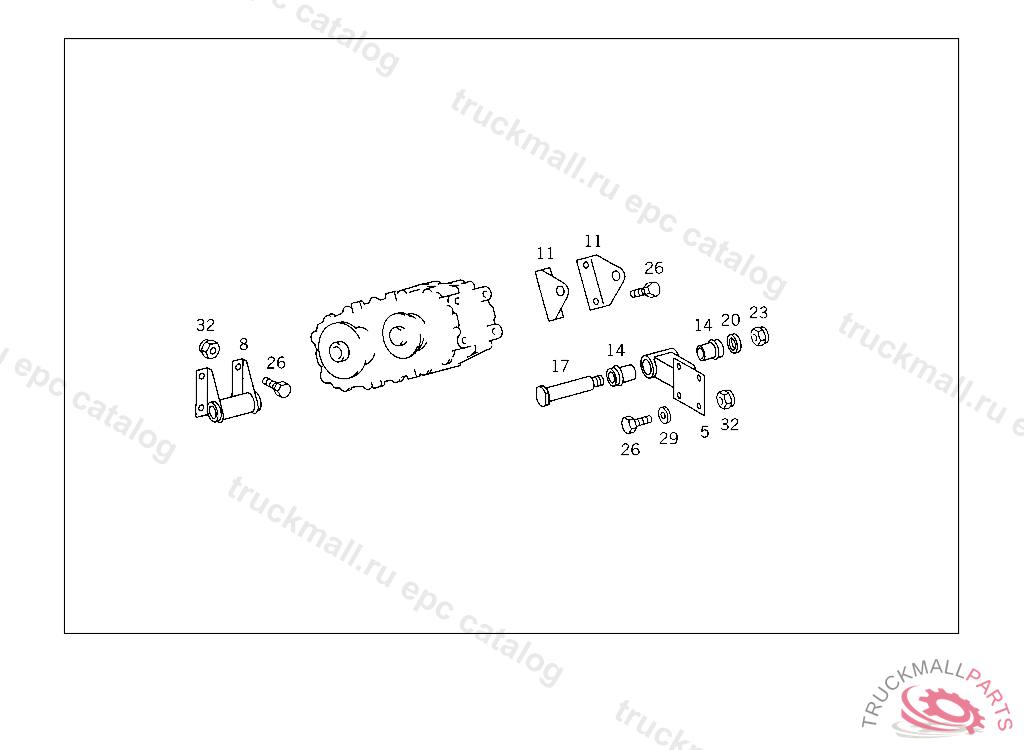

28 TRANSFER CASE - 030 TRANSFER CASE SUSPENSION

Поз.
Артикул
Описание
5
A6702800685
SUPPORT REVERSING GEAR
8
A6702800085
SUPPORT REVERSING GEAR
11
A6702850101
CONSOLE REVERSING GEAR
14
A6702850010
RUBBER BLOCK CONSOLE TO CONSOLE
17
A6702850074
PIN CONSOLE TO CONSOLE
20
A6702850076
WASHER CONSOLE TO CONSOLE
23
N913004016003
NUT BRACKET TO SIDE MEMBER
26
N304017012020
SCREW END PIECE TO EXHAUST PIPE M 12X30
26
N000933012056
SCREW , Replaced By: N304017012020
26
N304017012006
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE M 12X25, N 001923 P 236565
29
N000125013008
WASHER
32
N913002012004
NUT END PIECE TO EXHAUST PIPE
