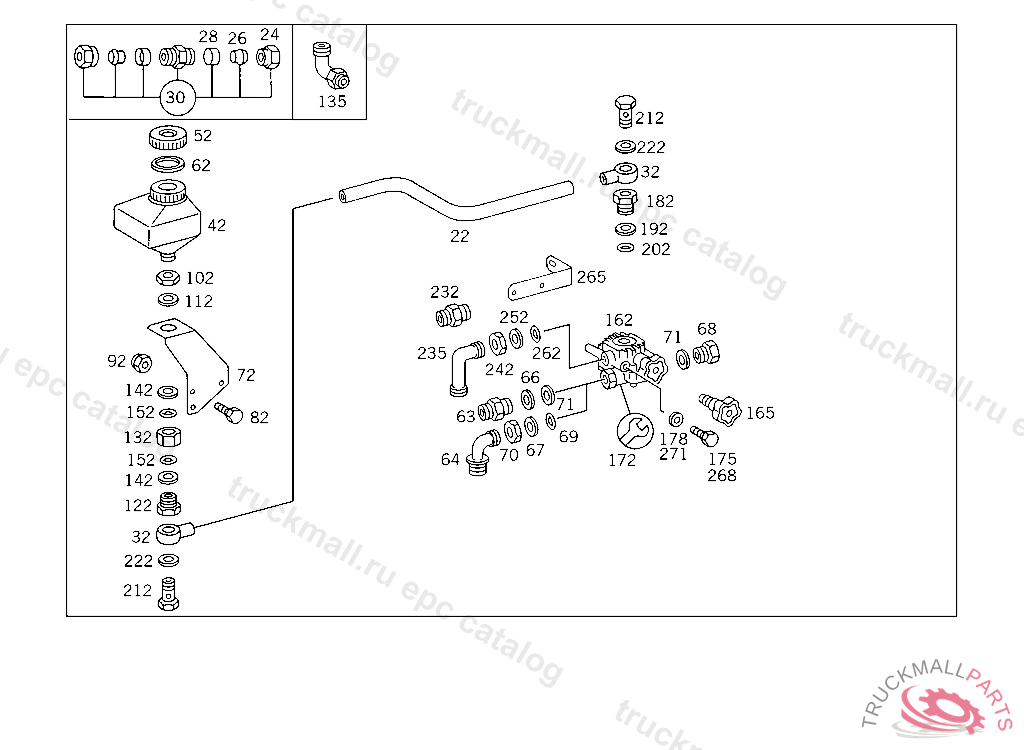

Поз.
Артикул
Описание
22
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
24
UNION NUT LINE CONNECTION
26
GLAND LINE MOUNTING,5 9363655 812730
28
SLEEVE LINE CONNECTION
30
FITTING (PARTS KIT),LINE RUPTURE
30
FITTING , Replaced By: A0029905971
32
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
42
RESERVOIR ANTI-FREEZE DEVICE
42
RESERVOIR , Replaced By: A0024311602, +001A0004317833
52
FILLER CAP BUTTRESS THREAD
62
SEAL RING
63
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
64
T-FITTING CYCLONE PRE-FILTER BOWL,CONNECTION: "1", PLUG CONNECTION
64
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
66
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
67
THRUST RING CHECK VALVE TO AIR RESERVOIR
67
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
68
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
69
O-RING CHECK VALVE TO AIR RESERVOIR
70
NUT ANTI-FREEZE DEVICE,CONNECTION: "1"
71
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
72
BRACKET BRACKET TO BRAKE BOOSTER SUPPORT,FRONT
72
BRACKET , Replaced By: A6684313240
82
SCREW BRACKET TO CROSS CONNECTION STRUT
92
NUT STRAP TO BRACKET
102
NUT CHECK VALVE TO AIR RESERVOIR
112
WASHER
122
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
132
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
132
FITTING FROM BRAKE BOOSTER,"A" CONNECTION,TO VALVE,"V" CONNECTION, UP TO IDENT NO. 840080 EXCEPT FOR 500001-599999
135
FITTING , Replaced By: A0019902171
135
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
142
THRUST RING CHECK VALVE TO AIR RESERVOIR
142
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
152
O-RING CHECK VALVE TO AIR RESERVOIR
162
ANTI-FREEZE DEVICE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0004312915
162
ANTI-FREEZE DEVICEBOSCH
162
ANTI-FREEZE DEVICEWABCO
162
ANTI-FREEZE DEVICEKNORR
162
ANTI-FREEZE DEVICEBOSCH
165
HANDLETO 000 431 43 15/44 15
172
REPAIR KITTO 000 431 43 15
172
REPAIR KITTO 000 431 44 15
172
REPAIR KITTO 000 431 59 15/60 15
172
REPAIR KITTO 000 431 29 15/32 15
175
SCREW STRAP TO EXHAUST MUFFLER
175
SCREW SPRING BRACKET TO FRAME
178
WASHER EXHAUST MUFFLER TO STRAP
182
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
192
THRUST RING CHECK VALVE TO AIR RESERVOIR
192
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
202
O-RING CHECK VALVE TO AIR RESERVOIR
212
HOLLOW SCREW HEATING CONNECTION
222
SEAL RING LINE CONNECTION
232
FITTING SHUTTLE VALVE,CONNECTION: "20"
232
FITTING FRONT AXLE II RELAY VALVE,CONNECTION: "24"
235
T-FITTING ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
242
NUT CHECK VALVE TO AIR RESERVOIR
252
THRUST RING CHECK VALVE TO AIR RESERVOIR
252
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
262
O-RING CHECK VALVE TO AIR RESERVOIR
265
BRACKET , Replaced By: A4374260440
265
BRACKET ANTI-FREEZE PUMP
268
SCREW SPRING BRACKET TO FRAME
268
SCREW STRAP TO EXHAUST MUFFLER
271
WASHER EXHAUST MUFFLER TO STRAP
