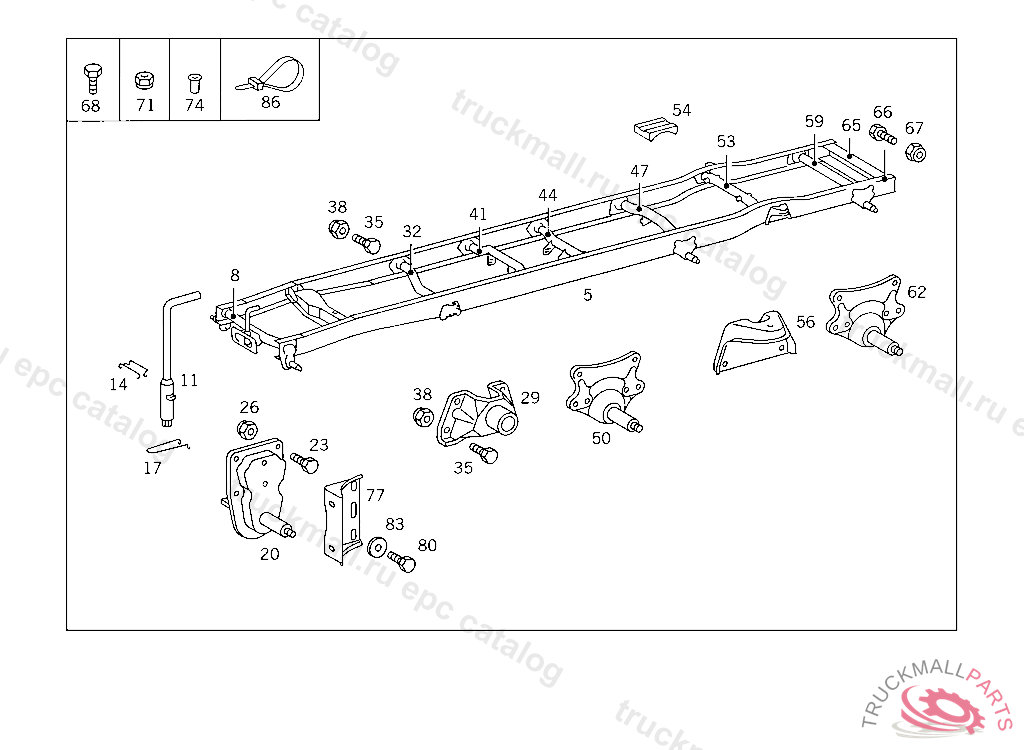

Поз.
Артикул
Описание
8
CROSS MEMBER FRONT
8
CROSS MEMBER , Replaced By: A6683100022, +001A6673150106
11
COUPLING PIN ,B 981820
14
LOCKING SPRING TOP,B 981820
17
LOCKING SPRING BOTTOM
20
REAR SUBFRAME (FRONT SPRING BRACKET),FRONT
23
SCREW BRACKET TO FRAME M 12X35
26
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
29
REAR SUBFRAME , 830250 N 000000 P 000000, Replaced By: A6673200970
29
REAR SUBFRAME , Replaced By: A6883207070
32
CROSS MEMBER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6673106137
32
CROSS MEMBER TRANSMISSION NO.3
35
SCREW STRUT TO CROSS MEMBER M 10X25
35
SCREW CONNECTOR TO REAR SHIFTING ROD
38
NUT CROSS MEMBER TO SIDE MEMBERS
44
CROSS MEMBER CHASSIS FRONT END WITH CAB NO. 5, TO BE ORDERED ONLY FROM MESSRS. RUTHMANN
65
CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 841891 N 000000 P 000000, Replaced By: A6673120235
66
HEXAGON HEAD BOLT BRACKET TO BRACKET
67
NUT CROSS MEMBER TO SIDE MEMBERS
68
FITTED SCREWM 18X19X33X55
68
SCREWM 16X16X24X42
68
HEXAGON HEAD BOLT. SCREW PROPELLER SHAFT TO TRANSMISSION
68
SCREWM 10X11X26.5X46
68
SCREWM 18X18X23X45
68
SCREWM 14X15X29X46
68
SCREWM 16X18X26X48
68
SCREWM 14X15X15X32
68
HEXAGON HEAD BOLT , Replaced By: A0029902704
68
SCREWM 16X18X18X40
68
SCREWM 16X18X38X60
68
SCREWM 16X16X32X50
68
SCREWM 12X14X13X35
68
SCREWM 14X15X27X44
68
FITTED SCREWM 10X11X14X28
68
SCREW PLATE TO SIDE MEMBER
68
SCREWM 16X16X20X38
68
SCREWM 14X15X31X48
68
FITTED SCREWM 10X11X25X38
68
SCREWM 14X14X27X45
68
SCREWM 12X13X23X40
68
SCREWM 14X14X22X40
68
SCREWM 16X17X22X42
68
SCREWM 12X13X12X29
68
SCREW CONSOLE TO FRAME
68
SCREWM 16X17X24X44
68
SCREWM 14X15X17X34
68
SCREWM 12X13X15X32
68
SCREWM 16X16X22X40
68
FITTED SCREWM 18X19X57X85
68
SCREWM 14X15X35X52
68
SCREWM 12X13X18X35
68
SCREWM 12X13X13X30
68
SCREWM 14X14X18X34
68
FITTED SCREWM 18X19X38X60
68
SCREWM 12X12X10X25
68
SCREWM 16X16X20X45
68
FITTED SCREWM 18X19X25X45
68
FITTED SCREWM 10X11X24X40
68
SCREWM 14X14X18X32
68
SCREWM 12X13X35X52
68
SCREWM 14X15X19X36
68
SCREWM 16X17X28X48
68
SCREWM 12X13X63X85
68
SCREWM 16X16X38X90
68
SCREWM 12X12X11X26
68
SCREWM 14X14X17X35
68
SCREWM 14X14X24X42
68
SCREWM 14X15X21X38
68
SCREWM 16X18X63X85
68
SCREWM 12X13X25X42
68
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
68
SCREWM 18X18X33X55
68
SCREW , Replaced By: N308676012013
68
SCREW , Replaced By: A3959900501
68
SCREW , Replaced By: A0029908201
68
SCREW , Replaced By: A3169900014
68
SCREW , Replaced By: A0009906314
68
SCREW , Replaced By: A3229903101
68
SCREW , Replaced By: N308676016020
68
SCREW , Replaced By: N000961016118
68
SCREW , Replaced By: N000961018043
68
SCREWM 14X15X18X35
68
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
68
SCREWM 12X13X58X80
68
SCREWM 12X13X21X38
71
NUT , Replaced By: N910113014000
71
NUT , Replaced By: N910113016001
71
NUT CONSOLE TO SUPPORT
71
NUT TORSION BAR TO BEARING BRACKET,5 904661
71
NUT STEERING SUPPORT TO FRAME
71
NUT CROSS MEMBER TO SIDE MEMBERS
71
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
74
RIVET REAR CROSS MEMBER 12X42 MM
74
RIVET10X34 MM, TO BE ADAPTED DURING ASSEMBLY
74
RIVET FRAME TRUSS TO SIDE MEMBER
74
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
74
RIVET10X18 MM, TO BE ADAPTED DURING ASSEMBLY
74
RIVET COVER TO SCOOP,4 633346
74
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
77
BRACKET FRONT BUMPER
80
SCREW BRACKET TO CONSOLE
83
WASHER BRACKET TO COVERING
83
WASHER , Replaced By: N009021010209
999
SCREWM 12X12X13X28
999
SCREWM 16X16X30X48
999
SCREWM 12X12X15X30
999
SCREWM 12X12X17X32
999
CROSS MEMBER CHASSIS FRONT END WITH CAB, TO BE ORDERED ONLY FROM MESSRS. RUTHMANN NOT USED
999
FRAME
