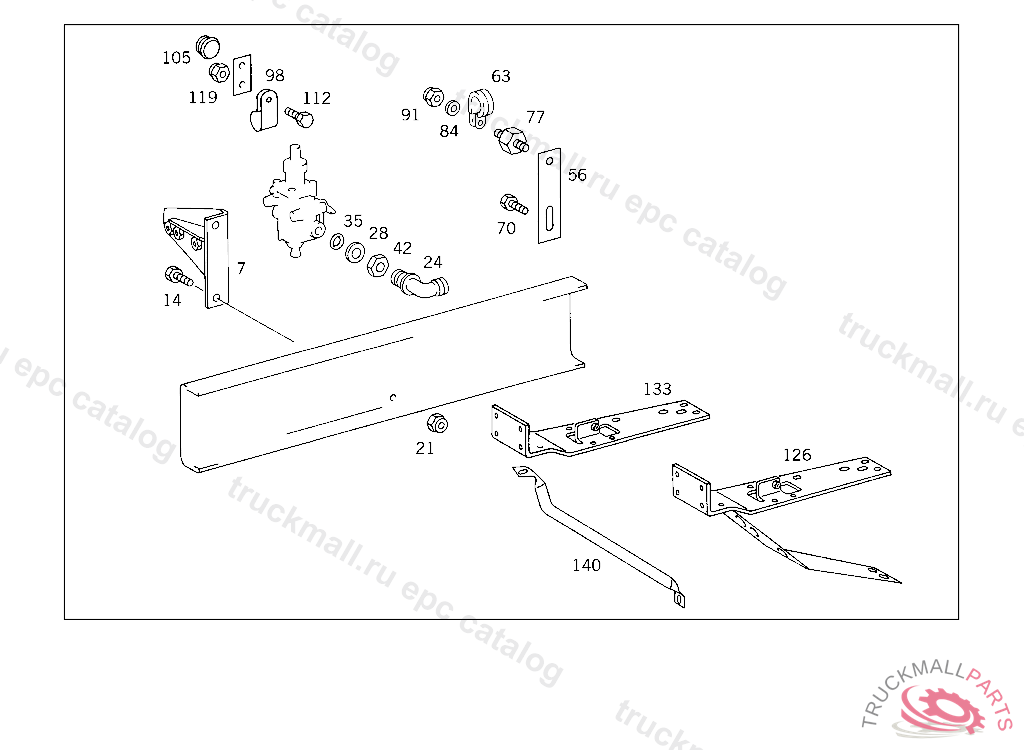

Поз.
Артикул
Описание
7
BRACKET PRESSURE REGULATOR
14
SCREW STRUT TO CROSS MEMBER M 10X25
21
NUT CROSS MEMBER TO SIDE MEMBERS
24
T-FITTING CYCLONE PRE-FILTER BOWL,CONNECTION: "1", PLUG CONNECTION
24
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
28
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
28
THRUST RING CHECK VALVE TO AIR RESERVOIR
35
O-RING CHECK VALVE TO AIR RESERVOIR
42
NUT CHECK VALVE TO AIR RESERVOIR
56
BRACKET COVERING
56
BRACKET AT CROSS MEMBER
63
CLAMP COOLING WATER LINE TO FIRE WALL
70
SCREW CABLE HARNESS MOUNTING
77
RUBBER BUFFER COVERING TO FRAME
77
BUFFER
84
WASHER EXHAUST MUFFLER TO STRAP
91
NUT STRAP TO BRACKET
98
CLAMP COOLING WATER LINE TO FIRE WALL
105
GROMMET HEADLAMP WIPER/WASHER
105
GROMMET , Replaced By: A0029971081
112
SCREW CABLE HARNESS MOUNTING
119
NUT STRAP TO BRACKET
126
SUPPORT UNDERRUN PROTECTION, TO BE ADAPTED DURING ASSEMBLY
126
SUPPORT
126
SUPPORT , Replaced By: A6675200633, +001A6675256039
126
SUPPORT , Replaced By: A6675200633, +001A6675256039
126
SUPPORT , Replaced By: A6675201233, +001A6675256039
126
SUPPORT , Replaced By: A6675201233, +001A6675256039
133
SUPPORT , Replaced By: A6675200633, +001A6675256039
133
SUPPORT , Replaced By: A6675200633, +001A6675256039
133
SUPPORT , Replaced By: A6675201233, +001A6675256039
133
SUPPORT
133
SUPPORT UNDERRUN PROTECTION, TO BE ADAPTED DURING ASSEMBLY
140
STAY UNDERRUN PROTECTION AND BRACKET TO FRAME, TO BE ADAPTED DURING ASSEMBLY
140
STRUT , Replaced By: A6675200332
999
STRUT UNDERRUN PROTECTION AND BRACKET TO FRAME
