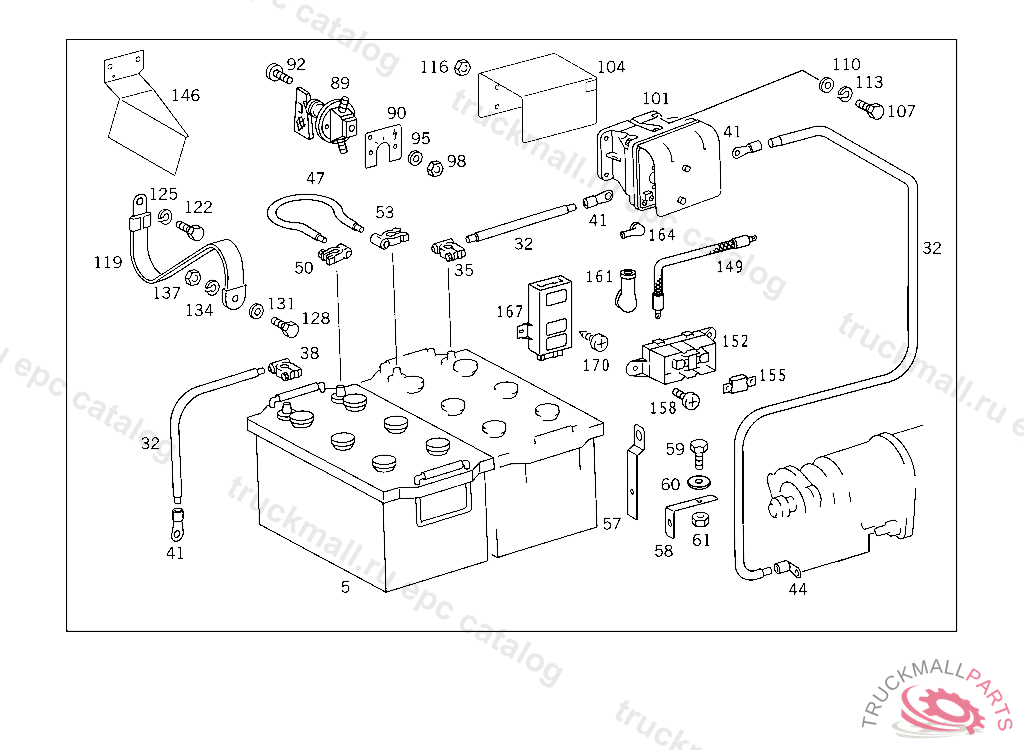

Поз.
Артикул
Описание
5
STARTER BATTERY TROPICAL VERSION 12 V / 220 AH
5
BATTERY
5
BATTERY , Replaced By: A0025413901
32
ELECTRIC CABLE FROM BATTERY TO BATTERY MASTER SWITCH, ORDER BY THE METER
35
SOLDERING TERMINAL POS. POLE
38
SOLDERING TERMINAL NEG.POLE
41
CABLE SHOE
44
CABLE SHOE
47
ELECTRIC CABLE FROM BATTERY MASTER SWITCH TO CABLE CONNECTOR
50
SOLDERING TERMINAL POS. POLE
53
SOLDERING TERMINAL NEG.POLE
57
57
58
58
59
SCREW BRACKET TO CROSS MEMBER
60
WASHER COMPRESSED AIR LINE TO BRACKET
60
WASHER , Replaced By: N009021006208
61
NUT SPRING-LOADED PUSH ROD
61
NUT BRACKET TO FIRE WALL
89
SWITCH ELECTRICAL COMPARTMENT,074035
90
GUIDE SIGN BATTERY MASTER SWITCH
92
SCREW , Replaced By: N000000001146
92
SCREW , Replaced By: N007985006193
95
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
98
NUT
101
RELAY (BATTERY MASTER SWITCH)
101
RELAY (BATTERY MASTER SWITCH)
104
104
104
COVERING BATTERY MASTER SWITCH
107
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
110
WASHER EXHAUST MUFFLER TO STRAP
113
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
116
NUT
119
GROUND STRAP FROM ENGINE TO FRAME, FROM CHASSIS 018694,ALSO INSTALLED ON 018411,018469,018489,018529,018549,018589,018610,EXCEPT FOR 018709,018713,018731,018735,018752,018756,018777,018784,018805,018817,018839,018843,018859,018871, 018874,018883,018892,018901,018907,018911,018917,019001,019023,019044,019064,019085,019135,019157, 019180,019221,019243,019276,019319,019361,019403,019424,019488,019530.
122
SCREW OIL LINE TO CRANKCASE
122
125
LOCK WASHER CAB TO FRONT CONSOLE,4 444945
128
SCREW BRACKET TO SIDE MEMBER
128
SCREW , Replaced By: N304017010002
131
WASHER , Replaced By: N000125010532
131
WASHER RADIATOR TO RUBBER MOUNTING
134
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
137
SCREW BRACKET AND CLAMP M6X20
137
NUT BATTERY CABLE
146
146
BRACKET CABLE HARNESS MOUNTING
146
149
149
149
149
152
FUSE BOX DOUBLE
152
FUSE BOX
155
FUSE LINK ADAPTER BOX PLUS 125A
155
FUSE125A, Replaced By: N000000000594
158
SCREW STEP SWITCH
158
SCREW HOOK TO BRACKET
161
BOOT. PROTECTIVE CAP CONNECTION TO BATTERY CUT-OFF
164
BOOT NEG. CABLE
164
BOOT , Replaced By: A0005463335
167
CONTROL UNIT PROTECTION AGAINST CONSEQUENTIAL DAMAGE
170
SHEET METAL SCREW BRACKET TO CAB 4,2X13
