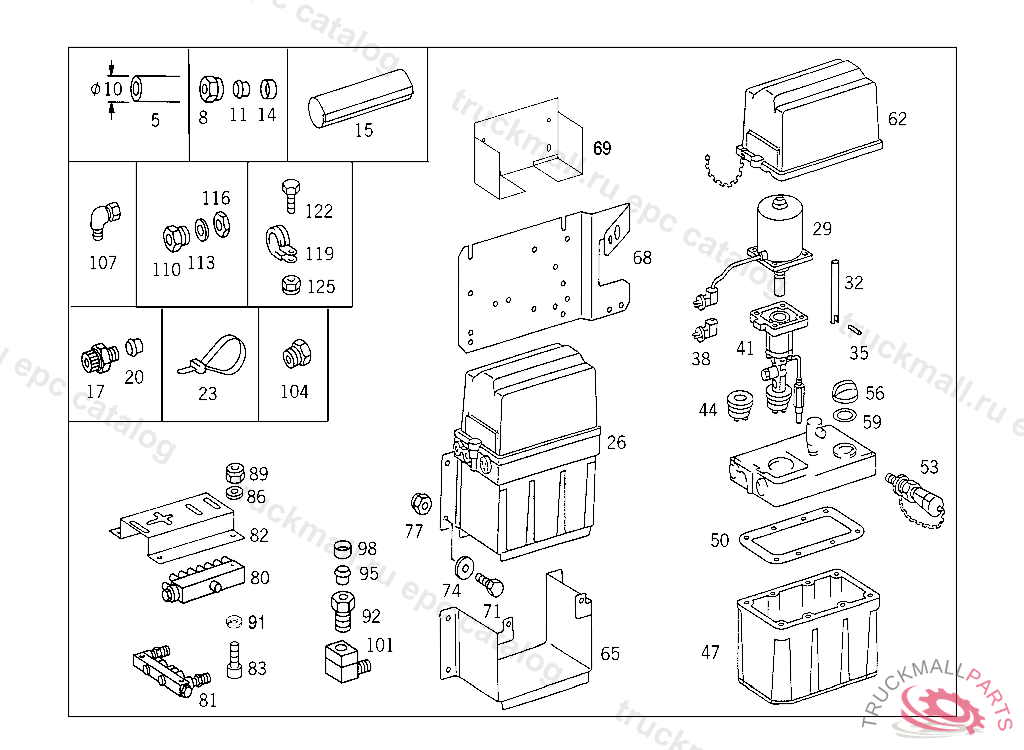

Поз.
Артикул
Описание
5
HOSE , ORDER BY THE METER, Replaced By: A0259978682
8
NUT. UNION NUT LINE CONNECTION
11
CUTTING RING. GLAND LINE CONNECTION
14
PIN BUSHING , Replaced By: A0005730753
14
PIN BUSHING FOR LINE CONNECTION BEKA-MAX , TO 025 997 86 82
17
FITTING , Replaced By: A0009974334
20
SEAL CONE , Replaced By: A0019909567
23
LOOM TIE , Replaced By: A0019978490
26
PUMP
29
ELECTRIC MOTOR , Replaced By: A0005402488
32
SHAFT
32
SHAFT , Replaced By: A0005710135
35
CLAMPING PIN2X12 MM
38
PLUG NOT CONFORMING TO DANGEROUS GOODS TRAFFIC REGULATIONS (GGVS)
41
PUMP , Replaced By: A0005715401
44
PUMP , Replaced By: A0005719401
47
RESERVOIR , Replaced By: A0005700204
50
SEAL RING , Replaced By: A0005710780
53
VALVE , Replaced By: A0005711614
56
COVER GREASE FILLING
59
GASKET
62
COVER , Replaced By: A0005711703
65
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01,70 01
68
69
71
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
71
SCREW , Replaced By: N304017008016
71
SCREW , Replaced By: N304017008034
71
SCREW BRACKET TO CROSS CONNECTION STRUT
74
WASHER , Replaced By: N009021008213
77
NUT STRAP TO BRACKET
80
DISTRIBUTOR FRONT AXLE
80
DISTRIBUTOR REAR AXLE
80
80
83
SCREW , WITH DIESEL ENGINE
86
WASHER COVERING TO CAB
89
NUT HEATING PIPE TO BRACKET
91
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
92
FITTING LINE CONNECTION VOGEL
95
SEAL CONE LINE CONNECTION VOGEL
98
PIN BUSHING , Replaced By: A0005730653
101
ELBOW , Replaced By: A0005733530
101
ELBOW LINE CONNECTIONS VOGEL, M 10X1
104
CONNECTOR BEARING BRACKET,BRAKE SHAFT,AND BRAKE ANCHOR VOGEL, M 8X1
107
CONNECTOR LINE MOUNTING
110
CONNECTOR LINE MOUNTING
113
SEALING RING. SEAL RING ENGINE BREATHING
116
NUT CLUTCH LINING WEAR INDICATOR
119
CLAMP BRAKE HOSE BRACKET
119
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
119
CLAMP PIPE ON FAN SHROUD
119
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
122
SCREW BRACKET TO SUN VISOR M 6X22
125
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
