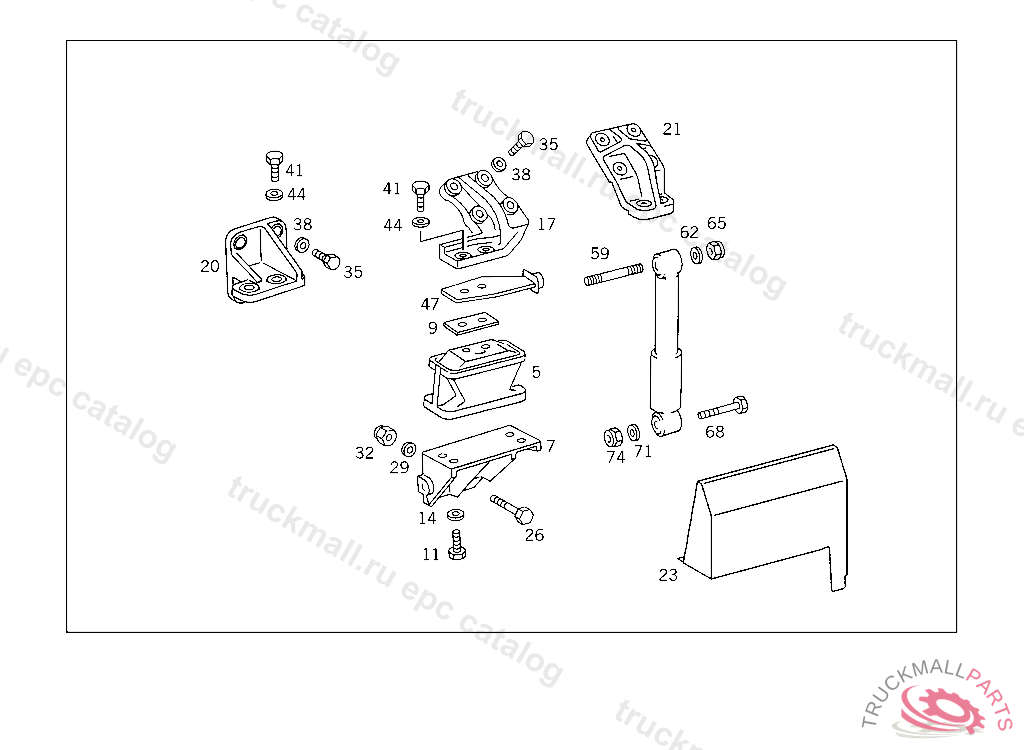

Поз.
Артикул
Описание
5
5
5
RUBBER MOUNTING REAR
5
RUBBER MOUNTING FRONT LEFT
5
RUBBER MOUNTING FRONT RIGHT
5
RUBBER MOUNTING REAR
9
11
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS M 12X1,5X35
14
WASHER RUBBER MOUNTING TO BEARING BRACKET
17
17
20
SUPPORTING ARM RIGHT FRONT RUBBER MOUNTING, 357.4 FROM IDENT NO. 064258 ALSO INSTALLED ON 061497,062932,062958,062976,062992,063007,063024,063038,063055,063069,063245,063260,063278,063294, 063312,063383,063666,063721,063762,063803,063896,063932,063986,064049,064076,064188,064206,064215, 064228.
20
SUPPORTING ARM LEFT FRONT RUBBER MOUNTING, 357.4 FROM IDENT NO. 064258 ALSO INSTALLED ON 061497,062932,062958,062976,062992,063007,063024,063038,063055,063069,063245,063260,063278,063294, 063312,063383,063666,063721,063762,063803,063896,063932,063986,064049,064076,064188,064206,064215, 064228.
20
SUPPORTING ARM CLUTCH END, TO BE ADAPTED DURING ASSEMBLY
23
PROTECTIVE PLATE
26
SCREW APPARATUS SUPPORT TO FRAME SIDE MEMBER M 14X1.5X95
29
WASHER SUPPORT TO SIDE MEMBER
32
NUT BRACKET TO CAB CONSOLE
35
HEXAGON HEAD BOLT TRAILER COUPLING TO FRONT CROSS MEMBER M16X1.5X45
35
HEXAGON HEAD BOLT TRAILER COUPLING TO FRONT CROSS MEMBER M16X1.5X45
35
SCREW
38
WASHER STRUT TO FRAME 3.5 MM
41
SCREW ENGINE MOUNTING TO ENGINE SUPPORT M 16X1,5X55
44
WASHER CONSOLE TO FRAME
47
BRACKET ENGINE SHOCK ABSORBER
59
STUD BOLT CONSOLE TO SUPPORT
62
WASHER
65
NUT SUPPORT TO SIDE MEMBER
68
SCREW BRACKET TO CONSOLE
71
WASHER
74
NUT SUPPORT TO SIDE MEMBER
