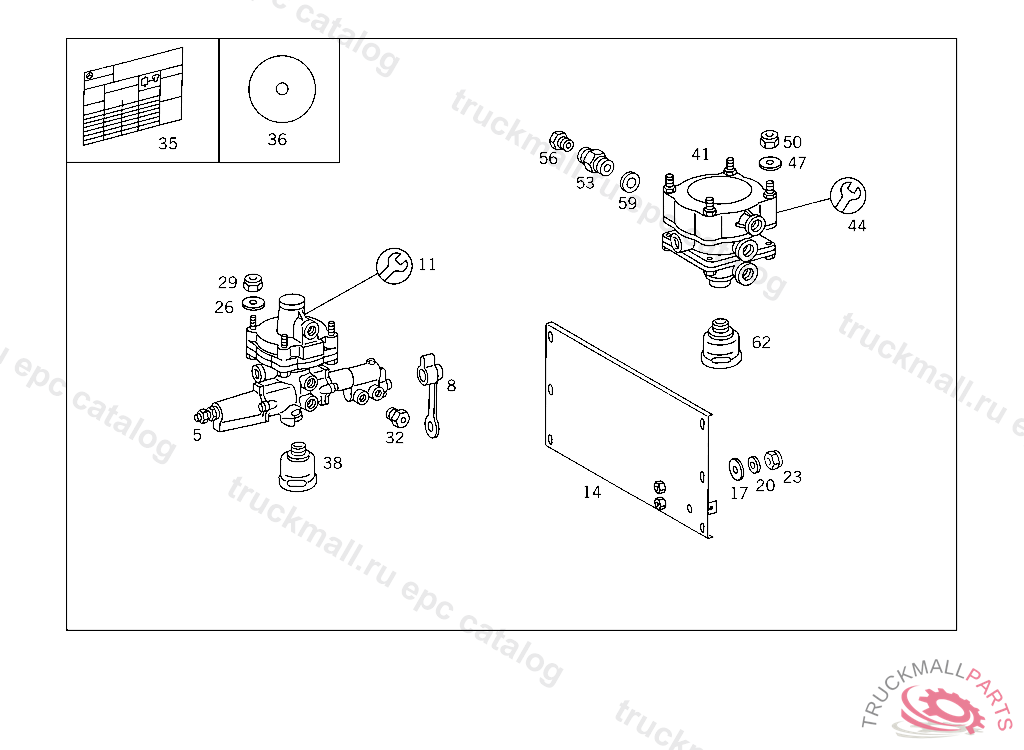

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR CENTRAL AXLE LOAD-DEPENDING BRAKE
8
PLUG
11
REPAIR KIT BRAKE POWER REGULATOR
14
SUPPORT
17
WASHER COMPRESSED AIR LINE TO BRACKET
17
WASHER , Replaced By: N009021006208
20
WASHER HANDLE TO FENDER
23
NUT BRACKET TO FIRE WALL
23
NUT HEATING PIPE TO BRACKET
26
WASHER BRACKET TO CAB REAR PANEL
29
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
SCREW. UNION SCREW LINE CONNECTION
35
GUIDE SIGN PLATE:SETTING INSTRUCTIONS FOR ALB CONTROLLER D/GB
35
GUIDE SIGN PLATE:SETTING INSTRUCTIONS FOR ALB CONTROLLER RUS
36
38
MUFFLER BRAKE VALVE
38
MUFFLER VALVE BLEEDING
41
BRAKE VALVE TRAILER CONTROL VALVE WABCO
44
REPAIR KITTO 001 431 37 05,4 375193
47
WASHER BRACKET TO SIDE MEMBER
47
WASHER BRACKET TO LEFT SIDE MEMBER
50
NUT HORN TO BRACKET M8
53
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
56
SCREW. UNION SCREW LINE CONNECTION
59
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
62
MUFFLER TRAILER CONTROL VALVE
