Mercedes N007983003277 -

O 345 G,EURO 2 671.312

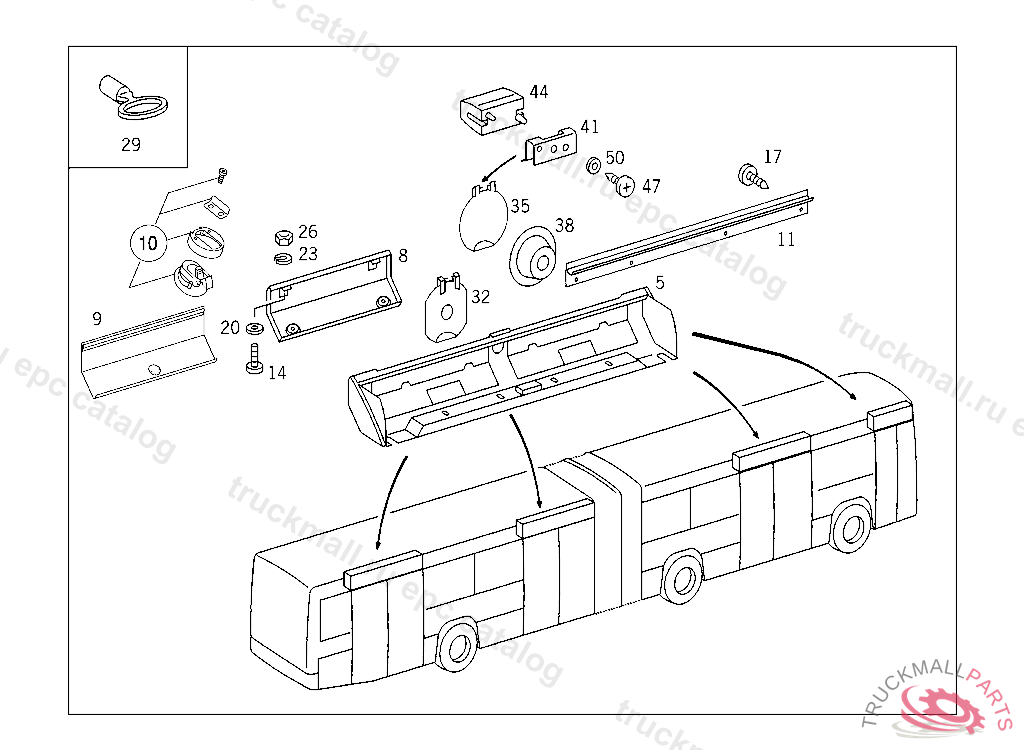

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 1

Поз.
Артикул
Описание
5
A6717600520
5
A6717600720
5
A6717601220
5
A6717601120
5
A6717600620
8
A6717600018
9
A6717600118
10
A6717600140
FASTENER
10
A6717600240
FASTENER TRAY
11
A6717660223
11
HXB3737660523
11
A6717660323
14
N000084006134
SCREW LICENSE PLATE TO BRACKET,4 300861
14
HXB3739900230
SCREW BACKREST TO SEAT FRAME
17
N007983003256
SHEET METAL SCREW COVERING TO SIDE MEMBER
17
N007983003277
17
N007983003248
SHEET METAL SCREW , Replaced By: N007983004205
20
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
20
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
20
N000125008417
WASHER TRAILER PLUG SOCKET TO BRACKET
23
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
26
N000917006006
NUT ROLLER BLIND TO BODY
29
A0007550107
SQUARE KEY8 MM
32
A6716910027
41
A3016910335
SPRING
44
A3016910021
MOUNTING
47
N000000003498
TAPPING SCREW4.2X19
47
N007981004326
SHEET METAL SCREW
50
N000125004311
WASHER , Replaced By: N000125004319
50
N000000003718
WASHER ATTACHMENT OF ELECTRIC LEAD AND GROUND STRAP ON ALTERNATOR
