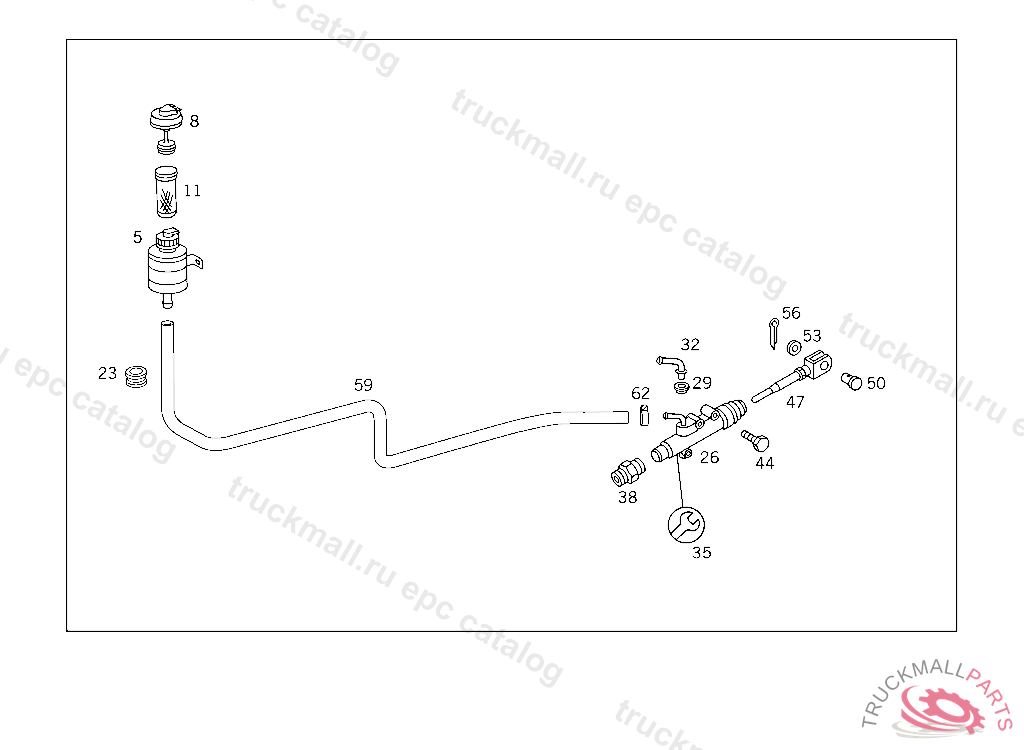

Поз.
Артикул
Описание
5
EXPANSION TANK. RESERVOIR RESERVOIR
8
FILLER CAPTO 001 431 38 02,000 431 58 02
11
STRAINERTO 001 431 38 02
23
GROMMET ,D 314239
26
MASTER CYLINDER CLUTCH
29
PLUG
32
INTERMEDIATE PIECE
32
INTERMEDIATE PIECE , Replaced By: A0002950036
35
REPAIR KIT TO MASTER CYLINDER HAVING SYNTHETIC PISTON TO 001 295 60 06
38
FITTING HYDRAULIC HOSES TO MASTER CYLINDER
44
SCREW CLAMP TO BRACKET M 6X55
47
ROD FROM CLUTCH PEDAL TO MASTER CYLINDER
50
PIN ROD TO LEVER
53
WASHER PISTON ROD TO LEVER
56
COTTER PIN LEVER TO SUPPORT
59
HOSE FLUID RESERVOIR
62
HOSE CLAMP. CLAMP COMPRESSED AIR HOSE TO COMPRESSED AIR LINE
