Mercedes A3056000014 - ZB HALTER

O 345 K,EURO 1 671.322

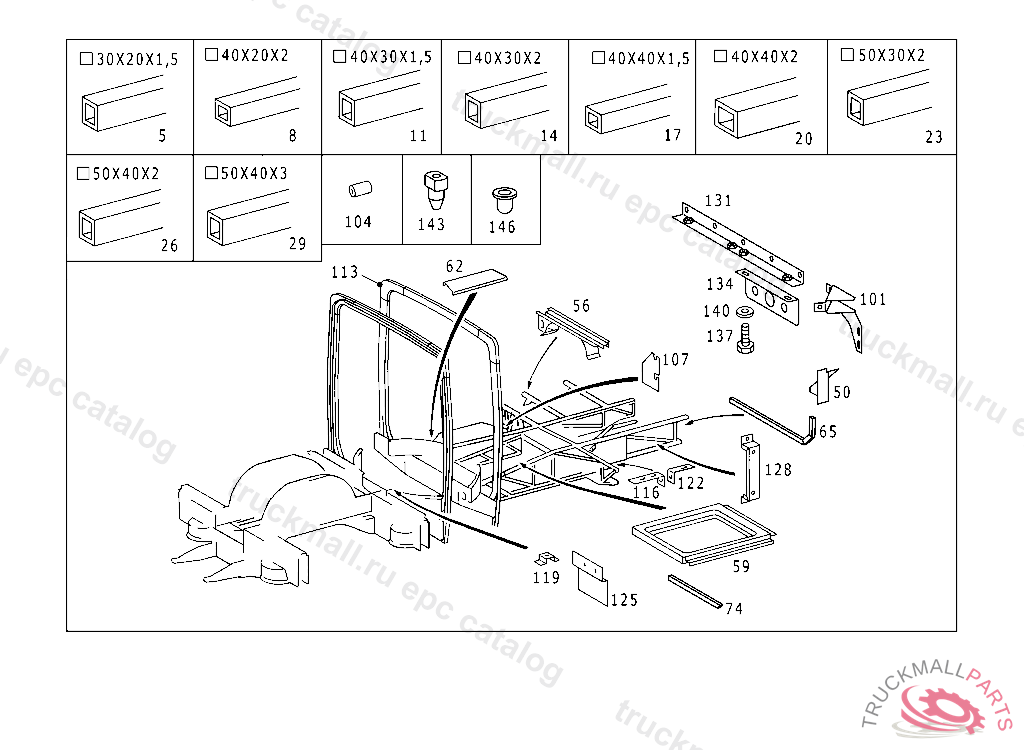

61 SUBSTRUCTURE - 157 SUBSTRUCTURE FRAMEWORK,CENTER, ARTICULATED BUS,REAR SECTION IL. 1

Поз.
Артикул
Описание
5
HXB3739210129
8
HXB3736328215
TUBE BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 632 82 15 RECTANGULAR TUBE 40 X 20 X 2,0 X 1715 MM
11
HXB3736126517
TUBE , TO BE ADAPTED DURING ASSEMBLY XB373 612 65 17 RECTANGULAR TUBE 40 X 30 X 1,5 X 2415 MM
14
A6716930510
SUPPORT. RECTANGULAR TUBE40X30X2X2382MM, TO BE ADAPTED DURING ASSEMBLY
17
A3016128417
TUBE , TO BE ADAPTED DURING ASSEMBLY A 301 612 84 17 RECTANGULAR TUBE 40 X 40 X 1,5 X 2440 MM
17
HXB3736421846
SUPPORT , Replaced By: A3016128417
20
HXB3736126118
TUBE BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 612 61 18 RECTANGULAR TUBE 40 X 40 X 2,0 X 2386 MM
23
HXB3736122215
TUBE , TO BE ADAPTED DURING ASSEMBLY XB373 612 22 15 RECTANGULAR TUBE 50 X 30 X 2,0 X 2300 MM
26
HXB3736110734
29
A6716110021
50
A6716029452
56
A6716100523
59
A6716004441
59
A6716001141
59
A6716003441
59
A6716022144
59
A6716027941
62
A6716026241
65
A6716005941
65
A6716004641
74
A6716005541
74
A6716023444
74
A6716023544
101
A3216140916
101
A6716142316
104
HXB3579910040
107
A6716141214
113
A6716000215
116
A3056148014
BRACKET
119
A3056000014
BRACKET
122
A3016145014
BRACKET , Replaced By: A3014780040
125
A6716102700
128
A6716101600
128
A6716101500
131
A6716100500
134
A6716141014
134
A6716141114
137
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
137
N304017008007
SCREWM 8X20
140
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
143
A6719970286
143
A6719970186
146
HXB3739970486
