Mercedes
BUS
O 345 K,EURO 1
671.322
42 BRAKES
320 AIR RESERVOIR,DRAIN VALVE,OVERFLOW VALVE IL. 2

Mercedes N304017008021 - АВТОЗАПЧАСТЬ

O 345 K,EURO 1 671.322

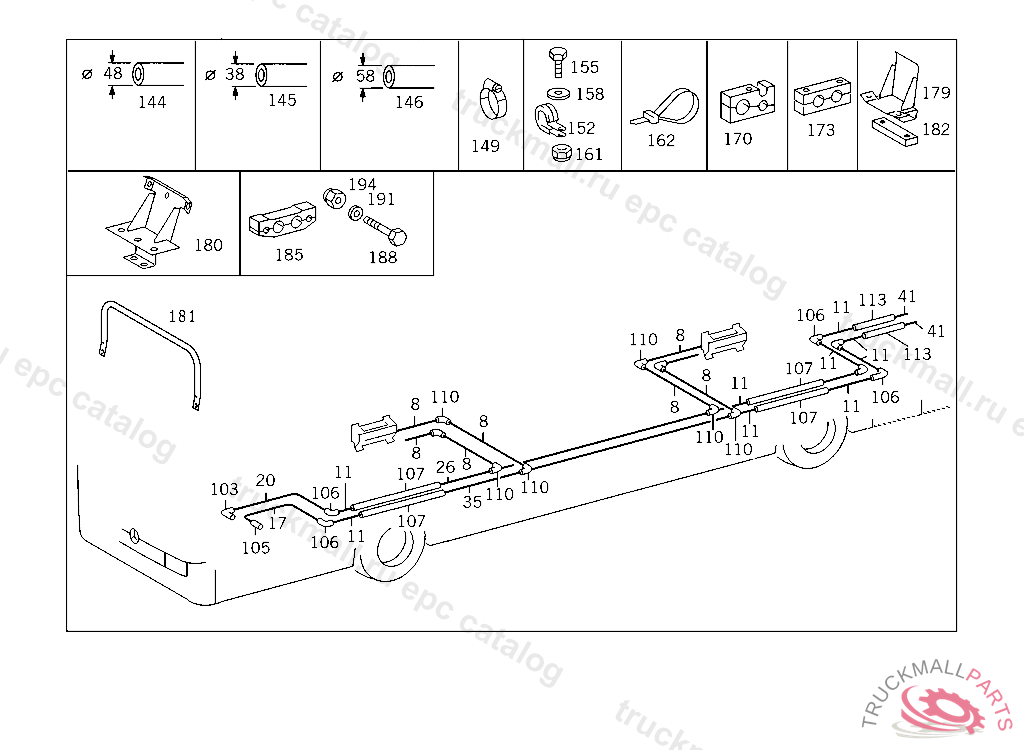

42 BRAKES - 320 AIR RESERVOIR,DRAIN VALVE,OVERFLOW VALVE IL. 2

Поз.
Артикул
Описание
8
A6718303715
8
A6138322418
8
A6718322015
11
A6718307315
11
A6718305515
11
A6718327317
11
A6718305615
11
A6718303415
11
A6718303315
11
A6138320317
PIPE LINE
11
A6718327217
17
A6718304515
17
A6718300115
20
A6718304415
20
A6718300215
26
A6718306515
26
A6718302715
35
A6718302615
35
A6718306615
41
A3578305877
41
A6718302515
103
HXB3738353597
105
N900271022023
HOSE AIR COMPRESSOR CONNECTION 240 MM, ORDER BY THE METER
106
HXB3738320123
HOSE
107
A6718350297
110
A3578323023
HOSE I.D., 18 MM
110
A3568320223
HOSE COMPRESSED AIR LINE
110
HXB3738350597
113
A6718320123
113
A6718321223
144
HXB3739872423
145
A6719870223
INSULATING HOSE38X18, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
145
A0249974782
HOSE38X50X100MM
146
A6719870323
149
N000000000671
CLAMP
149
A0069970490
LOOM TIE , Replaced By: N000000000668
149
N000000003385
CLAMP20 - 32 MM
149
N000000002774
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
152
N916016028202
CLAMP CABLE HARNESS MOUNTING
152
N916016038205
CLAMP SAFETY VALVE AT BRACKET
152
N916016018201
CLAMP BRAKE HOSE BRACKET
155
N000933006230
SCREW OVERLOAD PROTECTOR TO BRACKET
158
N009021006104
WASHER6,4
161
N910113006001
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
162
A3719977090
LOOM TIE365 MM
162
A3719970590
LOOM TIE
170
A6718320914
170
A6718320814
173
A6718321014
180
A6718300014
181
A6718300087
181
A3578326514
185
A6718321214
185
A6718321114
188
N304017008044
HEXAGON HEAD BOLT. SCREW LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE
188
N910105008049
HEXAGON HEAD BOLT. SCREW 3/2-WAY VALVE TO BRACKET M 8X100
188
N304017008021
SCREW PIPE CLAMP
188
N304014006005
SCREW PLATE TO VALVE M 6X70
188
N910143008012
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100
188
N910105008038
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
191
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
194
N913023008003
NUT HORN TO BRACKET M8
999
A6718309615
999
A6718306815
999
A6718300515
999
A6718300084
