Поз.
Артикул
Описание

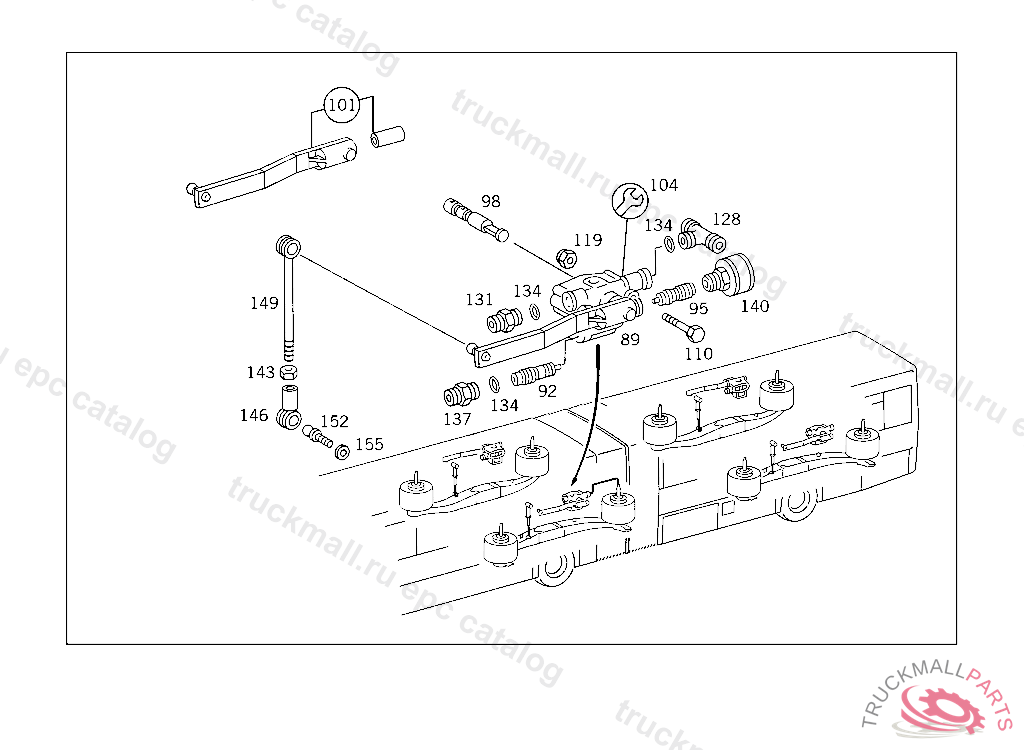

89
VALVE REAR AXLE LEVEL ADJUSTMENT,RIGHT,237278
89
VALVE REAR AXLE LEVEL ADJUSTMENT,LEFT EINBAUSEITE PRUFEN
89
VALVE TRAILING AXLE SELF-LEVELLING DEVICE
89
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
92
VALVE INTAKE
95
VALVE EXHAUST
98
SHAFT87 MM
101
LEVER (PARTS KIT)
104
REPAIR KIT
110
SCREWM6X65
110
HEXAGON HEAD BOLT. SCREW LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE
128
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
131
FITTING LINE CONNECTION, Replaced By: N000000006446
134
SEAL RING 3/2-WAY VALVE
137
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
140
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
143
NUT OPERATING ROD
143
NUT ,B 884219
146
BALL SOCKET R.H. THREAD
149
BALL SOCKET R.H. THREAD 65 MM,079428
149
BALL SOCKET LEVEL ADJUSTMENT VALVE CONTROL
152
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
155
SPACER WASHER LEVEL ADJUSTMENT VALVE TO SUPPORT
