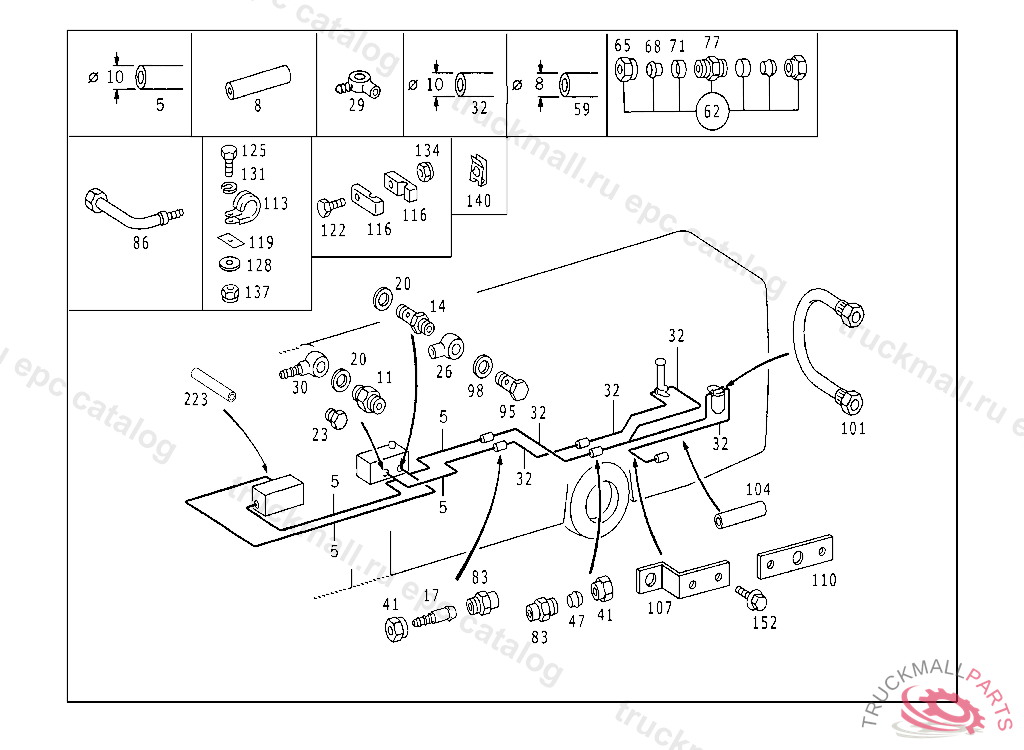

Поз.
Артикул
Описание
5
HOSETO 346 500 60 03, ORDER BY THE METER
11
FITTING WATER SEPARATOR
14
HOLLOW SCREW FITTING LINE CONNECTION
17
FITTING RETURN
20
SEAL RINGTO 000 553 03 05,000 553 18 05,
26
BANJO UNION COMPRESSED AIR LINE TO AIR COMPRESSOR
26
BANJO UNION LINE MOUNTING
29
INTERMEDIATE PIECE CONNECTION OF FUEL LINES
32
LINE FEED & RETURN 10X1 MM, LENGTH AVAILABLE: 3000 MM
41
NUT. UNION NUT RETURN
47
BALL-TYPE NIPPLE. SEAL CONE OIL LINES
59
PLASTIC PIPE AERATION, ORDER BY THE METER
62
FITTING (PARTS KIT),LINE RUPTURE
65
UNION NUT LINE CONNECTION
68
GLAND LINE CONNECTION
71
SLEEVE LINE CONNECTION
77
83
FITTING
86
ELBOW FITTING RETURN
95
HOLLOW SCREW
95
HOLLOW SCREW
95
HOLLOW SCREW HAND PUMP,K 169122
98
SEAL RINGTO 000 553 03 05,000 553 18 05,
101
HOSE RETURN
104
INSULATING HOSE12 MM
104
HOSE PLASTIC PIPE,K 223529
107
BRACKET COMPRSSED AIR LINE TO SUBSTRUCTURE
107
110
BRACKET FUEL LINES TO ENGINE
113
CLAMP FUEL LINE, 741959
113
CLAMP
113
CLAMP , Replaced By: N000000001045
116
PIPE CLAMP HALF FUEL LEAK LINES
116
PIPE CLAMP HALF FUEL LINE TO FUEL LINE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
119
SHIM BRACKET TO LEFT SIDE MEMBER
122
SCREW SHIFT LEVER TO BRACKET M8X30
122
SCREWM 8X20
122
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
122
SCREW BRACKET TO CAB REAR PANEL M 8X20
125
SCREW LICENSE PLATE TO BRACKET
125
SCREW CAB FLOOR COVERING M 6X25
128
WASHER COMPRESSED AIR LINE TO BRACKET
131
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
134
NUT , Replaced By: N913023008003
134
NUT HORN TO BRACKET M8
137
NUT SPRING-LOADED PUSH ROD
137
NUT HEATING PIPE TO BRACKET
140
LOCK. NUT , Replaced By: A0039941745
152
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
