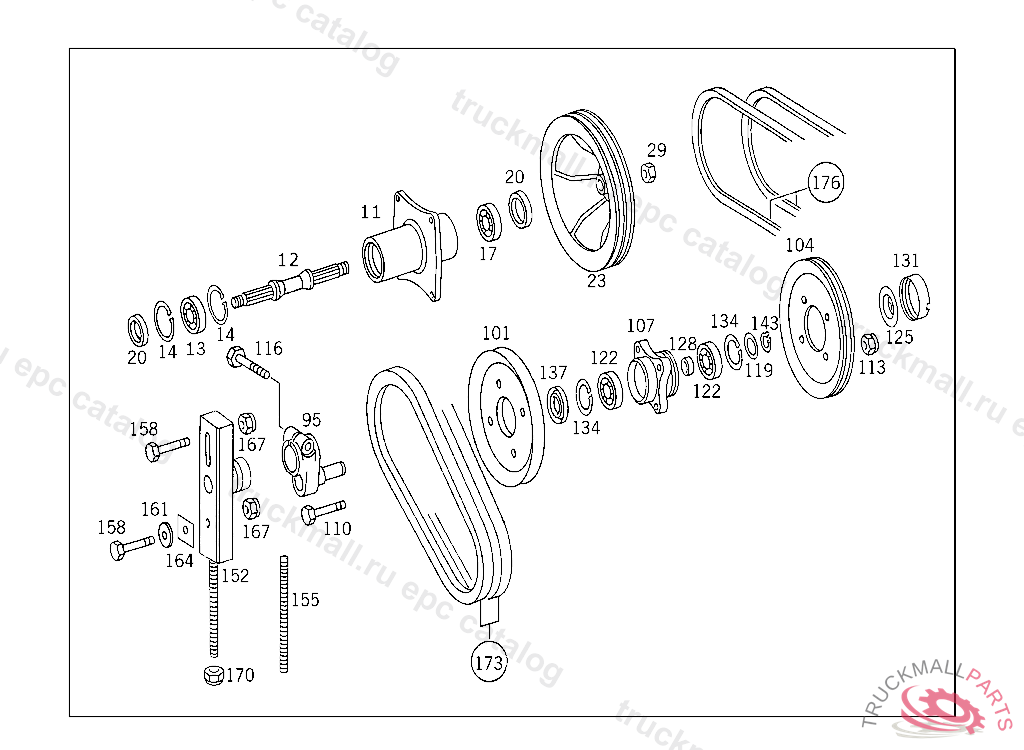

Поз.
Артикул
Описание
11
BEARING BODY FAN DRIVE
12
SHAFT
13
CYLINDR. ROLLER BEARING ON RADIATOR SIDE
13
CYLINDR. ROLLER BEARING FAN DRIVE
14
LOCK RING52X2 MM
17
GROOVED BALL BEARING
20
SEAL RING CASE COVER
23
PULLEY FAN DRIVE
29
NUT HUB TO FAN SHAFT
95
LEVER BELT TIGHTENER,042507
101
PULLEY STRAIGHT 196 MM,076962 ALSO INSTALLED IN:076734
104
PULLEY TWO-GROOVE 180 MM,076962 ALSO INSTALLED IN:076734
107
HUB
110
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
110
SCREW SHOCK ABSORBER TO CONSOLE
113
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
113
NUT HORN TO BRACKET M8
116
SCREW BEARING BRACKET TO CAB
119
SPACER WASHER BELT TIGHTENER 0.20 MM
119
SPACER WASHER BELT TIGHTENER 0.50 MM
122
BALL BEARING HUB,1/97
125
EXPANSION PLUG PULLEY,1/97
125
EXPANSION PLUG
128
SPACER TUBE
131
NUT TIGHTENER PULLEY
134
LOCK RING52X2 MM
137
SEAL RING PULLEY,1/97
143
LOCK RING BELT TIGHTENER
152
SUPPORT CLAMPING LEVER,075186
155
STUD ,075186
158
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
158
SCREW SUPPORT TO FAN SUPPORT M 12X1,5X190
158
SCREW VALVE TO BRACKET M 8X60
158
SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING M 10X45
161
WASHER RADIATOR TO RUBBER MOUNTING
161
WASHER EXHAUST MUFFLER TO STRAP
164
167
NUT HORN TO BRACKET M8
167
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
170
NUT STRAP TO BRACKET
173
V-BELT13X2425
176
V-BELT13X1485
999
RECEPTACLE SILICONE GREASE
