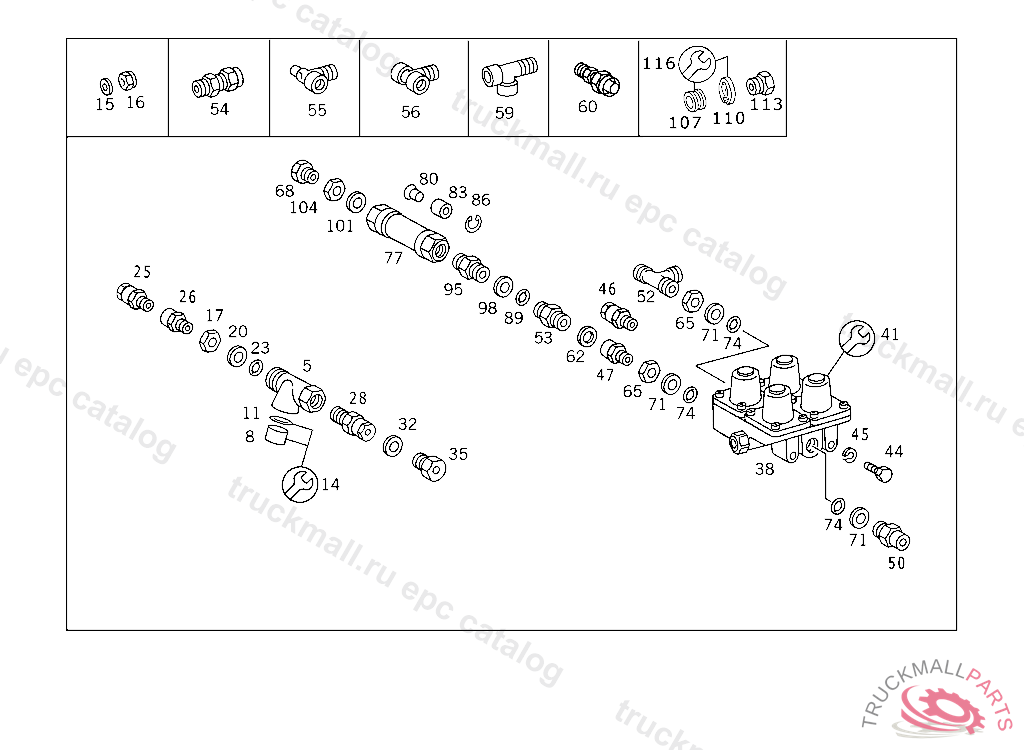

Поз.
Артикул
Описание
5
AIR CLEANER COMPRESSED AIR LINE
8
FILTER ELEMENT
11
SEAL RING39.2X3.0 MM
11
SEAL RINGWABCO 000 0,36.2X3.0 MM
14
REPAIR KITWABCO 000 0
15
WASHER PUMP TO CONSOLE
16
NUT STRAP TO BRACKET
17
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
20
THRUST RING CHECK VALVE TO AIR RESERVOIR
20
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
23
O-RING CHECK VALVE TO AIR RESERVOIR
25
FITTING CHECK VALVE
26
FITTING LINE CONNECTION
28
FITTING LINE CONNECTION
28
FITTING AIR RESERVOIR
32
WASHER
35
SCREW. UNION SCREW LINE CONNECTION
38
VALVE FOUR-CIRCUIT PROTECTIVE VALVE WABCO
38
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
41
41
REPAIR KITTO 001 431 30 06
44
SCREW , Replaced By: N910143008000
45
LOCK WASHER RAIL TO BATTERY SUPPORT
46
FITTING CHECK VALVE
47
FITTING LINE CONNECTION
50
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
53
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
54
FITTING FITTING TO BRACKET
56
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
59
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
59
FITTING TWO-WAY VALVE,CONNECTION: "2"
65
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
65
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
68
SCREW. UNION SCREW LINE CONNECTION
71
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
71
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
71
THRUST RING CHECK VALVE TO AIR RESERVOIR
74
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
74
O-RING CHECK VALVE TO AIR RESERVOIR
77
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
80
VALVE SEAT RINGWABCO,5 433388
83
BUSHINGWABCO,5 433388
86
LOCK RINGWABCO,5 433388
101
WASHER
104
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
