Поз.
Артикул
Описание
5

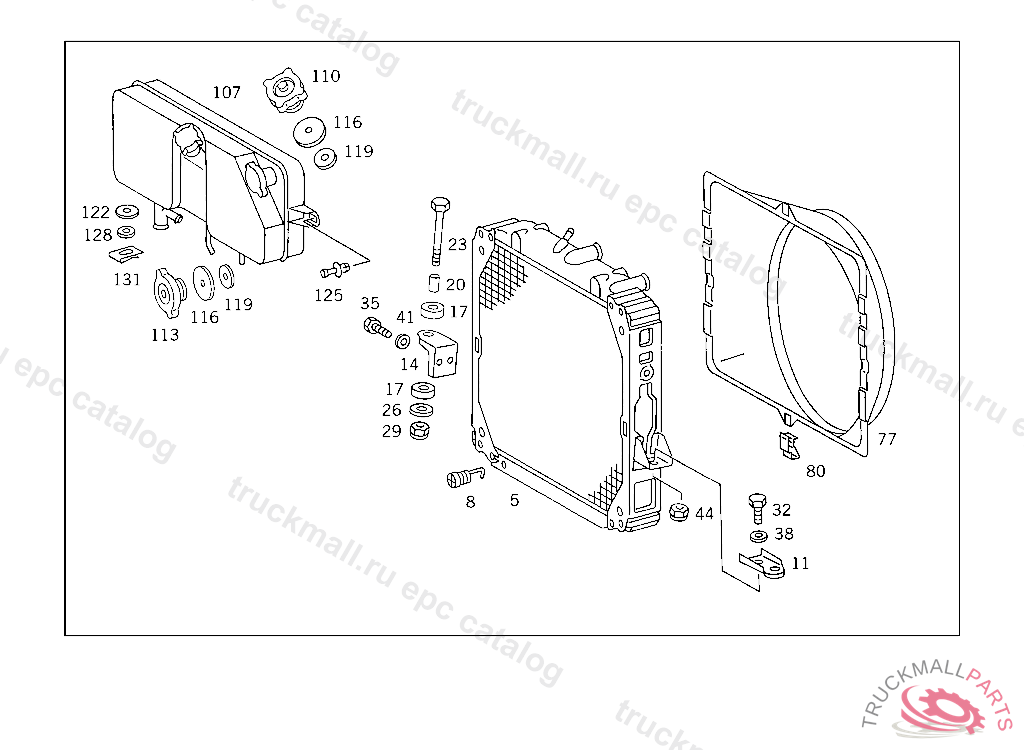

RADIATOR , Replaced By: A6735002303
5
RADIATOR ,5 527394
5
RADIATOR ,5 527394
5
RADIATOR
8
SCREW WATER DRAIN
11
SUPPORT RADIATOR,LEFT
14
SUPPORT RADIATOR,RIGHT
17
RUBBER MOUNTING SUPPORT TO SIDE MEMBER
20
SPACER TUBE SUPPORT TO SIDE MEMBER
23
SCREW BRACKET TO BELL HOUSING
26
WASHER SUPPORT TO SIDE MEMBER
29
NUT , Replaced By: N910113010000
29
NUT STRAP TO BRACKET
32
SCREW , Replaced By: N308676012038
32
SCREW BRACKET TO TRANSMISSION
35
SCREW COMPRESSED AIR LINE MOUNTING M 10X14
38
WASHER COVER PLATE TO FRAME
41
WASHER RADIATOR TO RUBBER MOUNTING
41
WASHER , Replaced By: N000125010532
44
NUT SUPPORT TO SIDE MEMBER
77
AIR BAFFLE RADIATOR
80
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
107
TANK , Replaced By: A6735000749, +001A6735012182, +001A6735012282
110
RADIATOR CAP FILLER NECK
110
RADIATOR CAP FILLER NECK
113
RADIATOR CAP , Replaced By: A0005016415
113
RADIATOR CAP
113
RADIATOR CAP FILLER NECK
116
GASKET O.D., 52 MM
119
GASKET O.D., 37 MM
122
RUBBER MOUNTING RESERVOIR TO CAB FRONT PANEL
125
RIVET COOLANT LINE ON FAN SHROUD
128
WASHER BRACKET TO FRAME
128
WASHER , Replaced By: N000125017016
131
CLIP RESERVOIR TO CAB FRONT PANEL
999
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 498235, Replaced By: A6735000803
999
TANK COOLING WATER EXPANSION
999
RADIATOR , Replaced By: A6735001603, +001A6739900132
999
RIVET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6739900192
