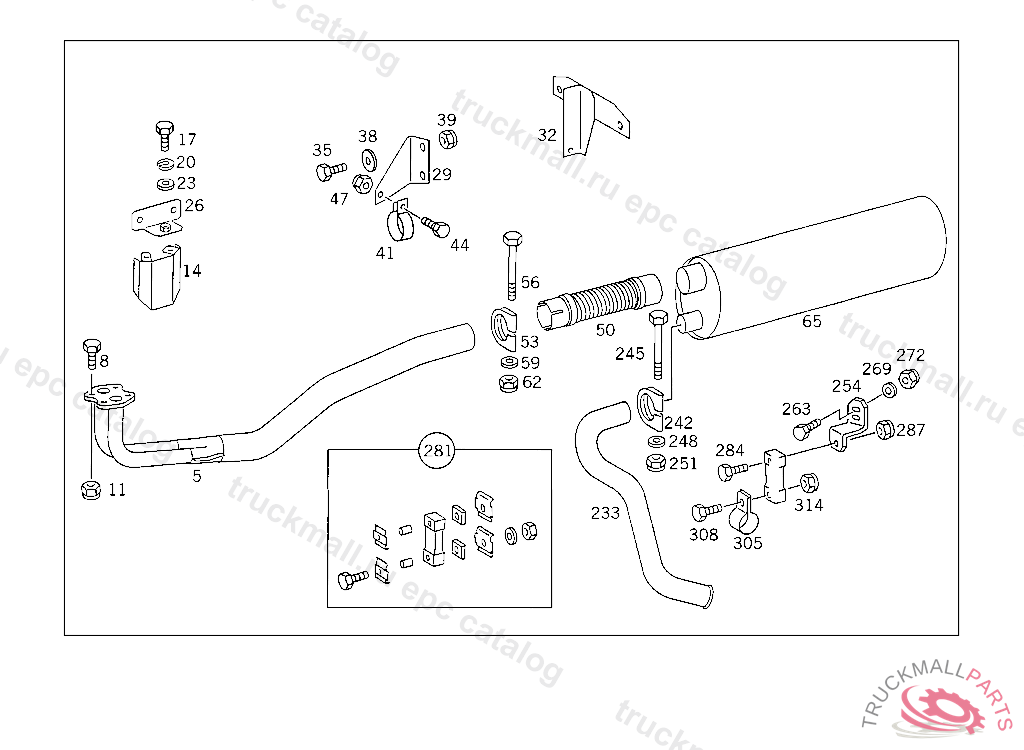

Поз.
Артикул
Описание
5
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD,5 337343
5
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD,5 337342
8
SCREW BRACKET TO FRAME SIDE MEMBER
11
NUT EXHAUST PIPE TO SIDE MEMBER
14
PROTECTIVE PLATE
17
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
SCREW , Replaced By: N304017008016
20
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
23
WASHER EXHAUST MUFFLER TO STRAP
23
WASHER , Replaced By: N000125008443
26
BRACKET HEAT SHIELD
29
BRACKET FRONT EXHAUST PIPE,5 337342
29
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6744921241, +002N000961014028, +002N913004014002
32
BRACKET FRONT EXHAUST PIPE,5 528483
32
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640
35
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
35
SCREW BRACKET TO FRAME SIDE MEMBER
35
SCREW RADIATOR M 10X45
38
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
38
WASHER , Replaced By: N006902011102
38
WASHER , Replaced By: N006902011100
38
WASHER , Replaced By: A6739900940
39
NUT BRACKET TO SIDE MEMBER
39
NUT , Replaced By: N910113014001
41
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
41
CLAMP , Replaced By: N071555090502
44
SCREW BRACKET TO SIDE MEMBER
44
SCREW , Replaced By: N304017010002
47
NUT STRAP TO BRACKET
47
NUT , Replaced By: N910113010000
50
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER,K 165446
53
CLAMP EXHAUST PIPE TO MUFFLER
53
CLAMP EXHAUST PIPE TO MUFFLER
56
SCREW BRACKET TO EXHAUST PIPE,5 528482
56
SCREW BRACKET TO EXHAUST PIPE,5 528482
59
WASHER EXHAUST MUFFLER TO STRAP
59
WASHER EXHAUST MUFFLER TO STRAP
59
WASHER , Replaced By: N000125008443
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT , Replaced By: N913004008001
65
EXHAUST MUFFLER
65
EXHAUST MUFFLER , Replaced By: A6744900201
65
EXHAUST MUFFLER
233
REAR EXHAUST PIPE (TAIL PIPE),5 3373435 743552
233
REAR EXHAUST PIPE (TAIL PIPE),5 337342
242
CLAMP REAR EXHAUST PIPE TO MUFFLER
245
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
248
WASHER EXHAUST MUFFLER TO STRAP
248
WASHER , Replaced By: N000125008443
251
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
251
NUT , Replaced By: N913004008001
254
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
269
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
269
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
272
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
272
NUT , Replaced By: N913004008001
281
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
284
SCREWM 8X40
287
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
305
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
RUBBER BUFFER BRACKET TO SUPPORT
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
SUPPORT EXHAUST MUFFLER TO BRACKET
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET , Replaced By: A3524920141
999
BRACKET AT SIDE MEMBER,5 478324
999
REAR EXHAUST PIPE (TAIL PIPE),5 743553
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
SCREW , Replaced By: N304017008021
999
SCREW PIPE CLAMP
