Поз.
Артикул
Описание

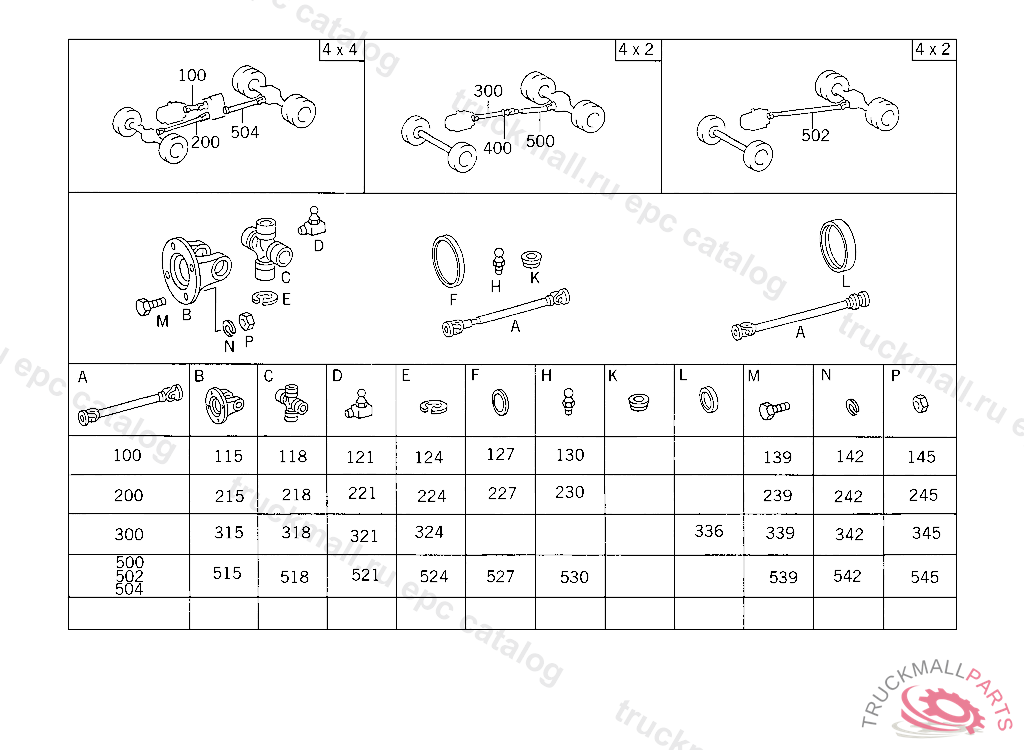

100
PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE 810 MM,5 426354 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
115
DRIVE FLANGE
118
UNIVERSAL JOINT CROSS WITH BUSHINGS
118
UNIVERSAL JOINT CROSS , Replaced By: A0004104031
121
GREASE NIPPLE
124
LOCK AS REQUIRED 2.00 MM
124
LOCK AS REQUIRED 1.93 MM
124
LOCK AS REQUIRED 1.88 MM
124
LOCK RING SHIFT LEVER BEARING
124
LOCK AS REQUIRED 1.825 MM
127
SEAL RING PROTECTIVE TUBE 77X14,5 MM
127
SEAL RING PROTECTIVE TUBE 74.5X22 MM
130
GREASE NIPPLE , Replaced By: N071412008102
130
GREASE NIPPLE
139
SCREW , Replaced By: A0079901001
139
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
139
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
142
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
145
NUT FROM PROPELLER SHAFT TO FRONT AXLE
200
PROPELLER SHAFT FROM TRANSFER CASE TO FRONT AXLE 1365 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
215
DRIVE FLANGE
218
UNIVERSAL JOINT CROSS , Replaced By: A0004104031
218
UNIVERSAL JOINT CROSS WITH BUSHINGS
221
GREASE NIPPLE
224
LOCK AS REQUIRED 1.88 MM
224
LOCK AS REQUIRED 1.825 MM
224
LOCK AS REQUIRED 1.93 MM
224
LOCK RING SHIFT LEVER BEARING
224
LOCK AS REQUIRED 2.00 MM
227
SEAL RING PROTECTIVE TUBE 74.5X22 MM
227
SEAL RING PROTECTIVE TUBE 77X14,5 MM
230
GREASE NIPPLE , Replaced By: N071412008102
230
GREASE NIPPLE
239
SCREW , Replaced By: A0079901001
239
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
239
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
242
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
245
NUT FROM PROPELLER SHAFT TO FRONT AXLE
504
PROPELLER SHAFT FROM TRANSFER CASE TO REAR AXLE 984 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
515
DRIVE FLANGE DIA., 150 MM
518
UNIVERSAL JOINT CROSS WITH BUSHINGS
518
UNIVERSAL JOINT CROSS , Replaced By: A0004104031
521
GREASE NIPPLE
524
LOCK AS REQUIRED 1.88 MM
524
LOCK AS REQUIRED 1.93 MM
524
LOCK RING SHIFT LEVER BEARING
524
LOCK AS REQUIRED 1.825 MM
524
LOCK AS REQUIRED 2.00 MM
527
SEAL RING PROTECTIVE TUBE 77X14,5 MM
527
SEAL RING PROTECTIVE TUBE 74.5X22 MM
530
GREASE NIPPLE , Replaced By: N071412008102
530
GREASE NIPPLE
539
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
539
SCREW , Replaced By: A3609903001
542
LOCK WASHER FITTING TO BRACKET
545
NUT PROPELLER SHAFT TO COUPLING FLANGE
