Mercedes N000934010010 -

1514 K 675.045

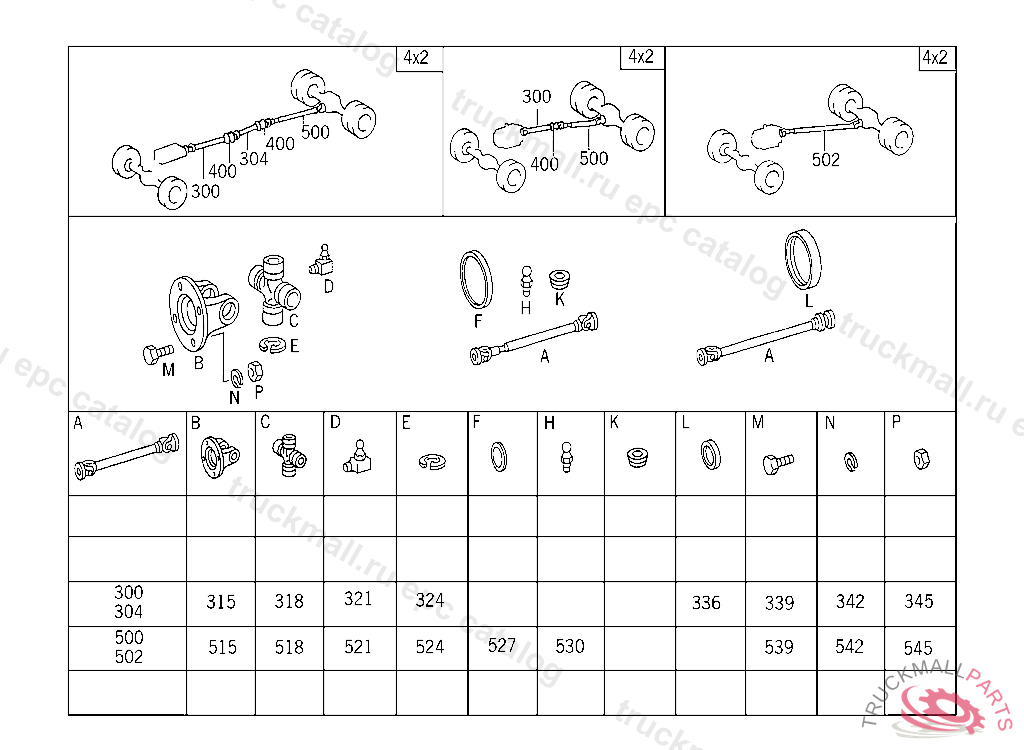

41 PROPELLER SHAFT - 030 PROPELLER SHAFT IL. 1

Поз.
Артикул
Описание
502
A6164100102
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 1918 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
515
A3814110811
DRIVE FLANGE
518
A0004104031
UNIVERSAL JOINT CROSS WITH BUSHINGS
518
A6174100031
UNIVERSAL JOINT CROSS , Replaced By: A0004104031
521
N071412008302
GREASE NIPPLE
524
A0069940441
LOCK AS REQUIRED 2.00 MM
524
N000472042001
LOCK RING SHIFT LEVER BEARING
524
A0059949941
LOCK AS REQUIRED 1.88 MM
527
A3814110559
SEAL RING PROTECTIVE TUBE 77X14,5 MM
527
A0004110059
SEAL RING PROTECTIVE TUBE 74.5X22 MM
530
N071412008302
GREASE NIPPLE
539
A0079901001
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
542
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
545
N000934010010
NUT FROM PROPELLER SHAFT TO FRONT AXLE
