Поз.
Артикул
Описание

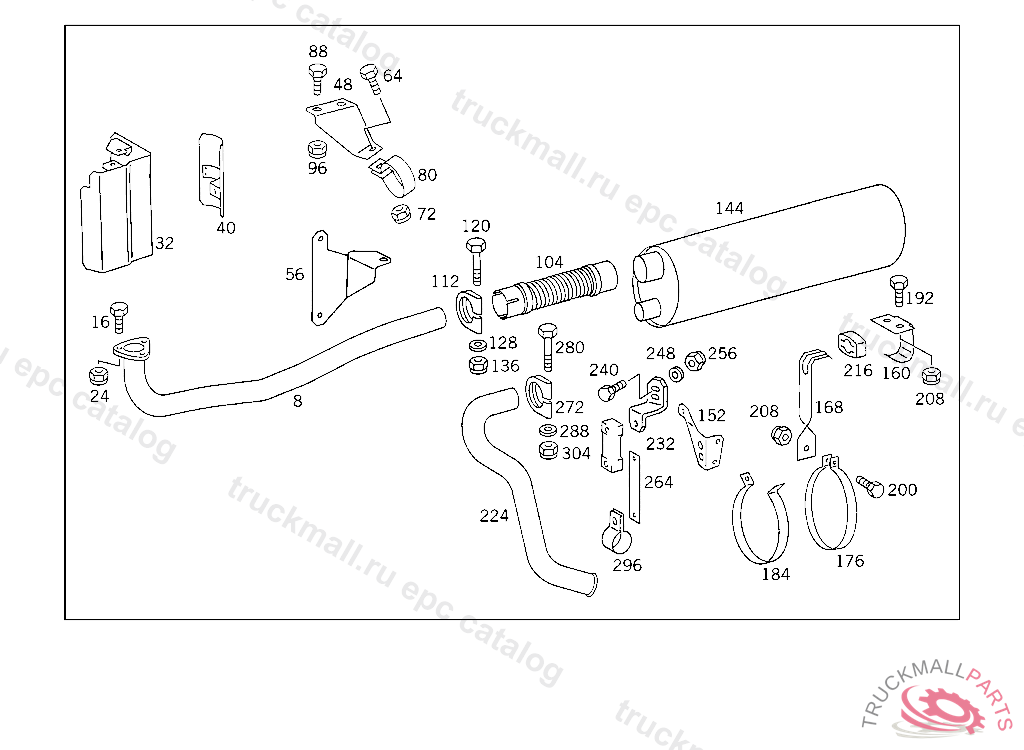

8
EXHAUST PIPE CONNECTING PIPE TO EXHAUST MANIFOLD,5 3373435 528482
8
EXHAUST PIPE FRONT
8
EXHAUST PIPE FRONT
16
SCREW , Replaced By: N308676012015
16
SCREW BRACKET TO FRAME SIDE MEMBER
24
NUT , Replaced By: N910113012006
24
NUT , Replaced By: N910113010004
24
NUT BRACKET TO FRAME M 10X1
24
NUT THROTTLE HOUSING AND BRACKET TO FRONT EXHAUST PIPE
32
PROTECTIVE PLATE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 422640, Replaced By: A6764900730, +001A6764901140, +002A1089900340, +002N000933008147, +002N913004008004
32
PROTECTIVE PLATE FRONT EXHAUST PIPE,5 502998
40
PROTECTIVE PLATE FUEL TANK
48
BRACKET FRONT EXHAUST PIPE,5 337342
56
BRACKET FRONT EXHAUST PIPE TO BRACKET,5 528483
64
SCREW BRACKET TO SIDE MEMBER
64
SCREW , Replaced By: N304017010002
72
NUT , Replaced By: N910113010004
72
NUT BRACKET TO FRAME M 10X1
80
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
80
CLAMP , Replaced By: N071555090502
88
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
96
NUT , Replaced By: N910113014001
96
NUT BRACKET TO SIDE MEMBER
104
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER,K 165446
112
CLAMP EXHAUST PIPE TO MUFFLER
120
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
120
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
120
SCREW , Replaced By: N304014008021
128
WASHER , Replaced By: N000125008443
128
WASHER EXHAUST MUFFLER TO STRAP
136
NUT STRAP TO BRACKET
144
EXHAUST MUFFLER , Replaced By: A6764900501
144
EXHAUST MUFFLER
152
BRACKET EXHAUST MUFFLER
160
SUPPORT REAR EXHAUST MUFFLER
168
BRACKET EXHAUST MUFFLER,REAR
176
BRACKET AT MUFFLER
184
BRACKET , Replaced By: A6744914541
184
STRAP EXHAUST MUFFLER TO SIDE MEMBER
192
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
200
SCREW , Replaced By: N304017010002
200
SCREW BRACKET TO SIDE MEMBER
208
NUT BRACKET TO FRAME M 10X1
208
NUT STRAP TO BRACKET
208
NUT , Replaced By: N910113010000
208
NUT , Replaced By: N910113010004
216
DAMPING PAD PARTICLE FILTER
224
REAR EXHAUST PIPE (TAIL PIPE)
232
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
240
SCREW PIPE CLAMP
240
SCREW , Replaced By: N304017008021
248
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
256
NUT , Replaced By: N913004008001
256
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
264
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
272
CLAMP BRACKET TO EXHAUST PIPE
280
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
280
SCREW , Replaced By: N304014008021
288
WASHER , Replaced By: N000125008443
288
WASHER EXHAUST MUFFLER TO STRAP
296
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
296
CLAMP , Replaced By: N071555090502
304
NUT , Replaced By: N913004008001
304
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
